- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2Q5V75

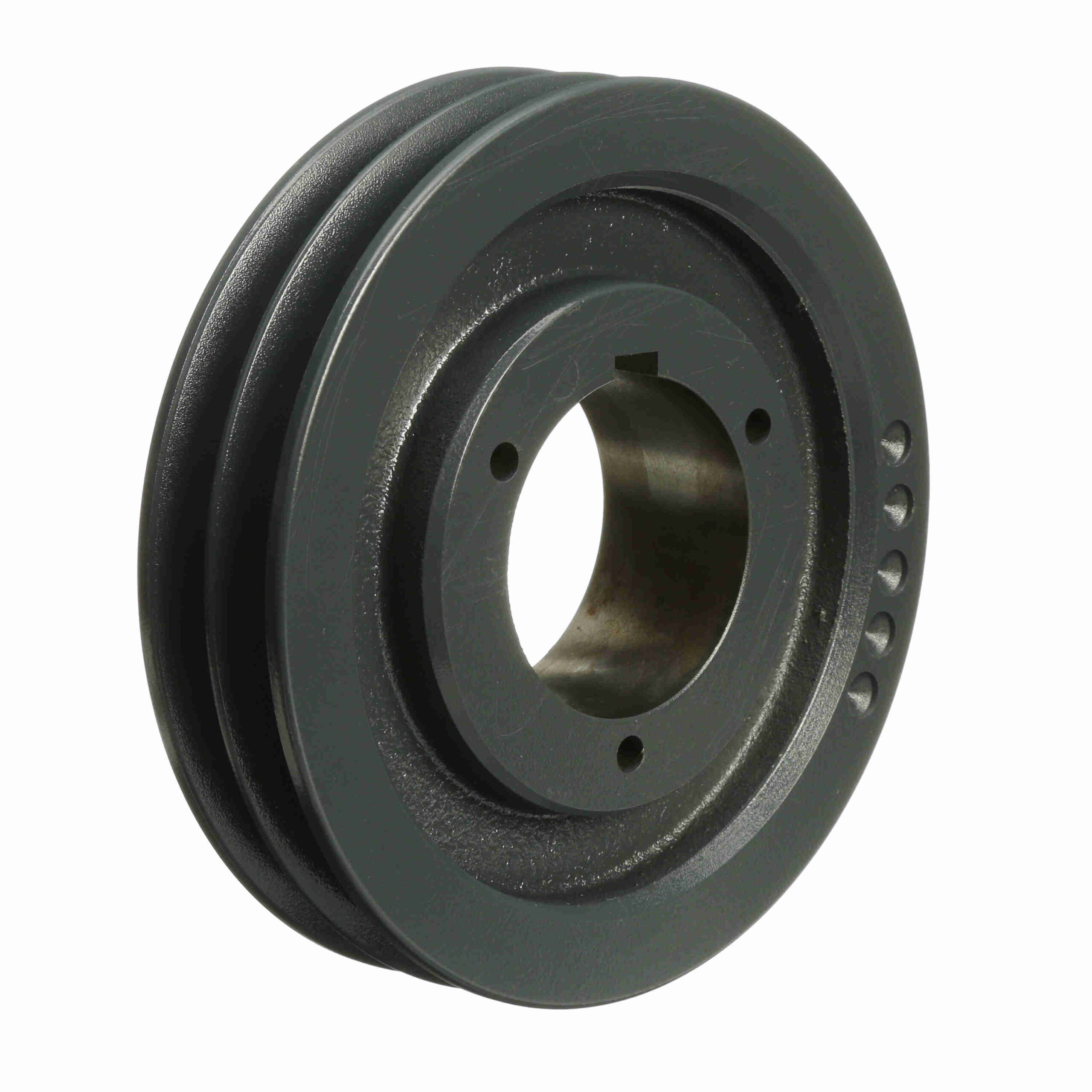

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2Q5V75
$258.43
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter (5V): | 7.4 | Number of Grooves: | 2 |
| Bushing Used: | Q1 | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 7.5 in | Product Type: | Multiple Sheaves |
| Belt Section: | 5V | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 2.78125 |
| Face Width (in): | 1.6875 | Keyway Size: | .500 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Pulley Construction: | Plain |
| UPC: | 662289260485 | Weight: | 10.89 LB |
| Packaged Length: | 8.10 Inches | Packaged Width: | 8.10 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
