- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P17

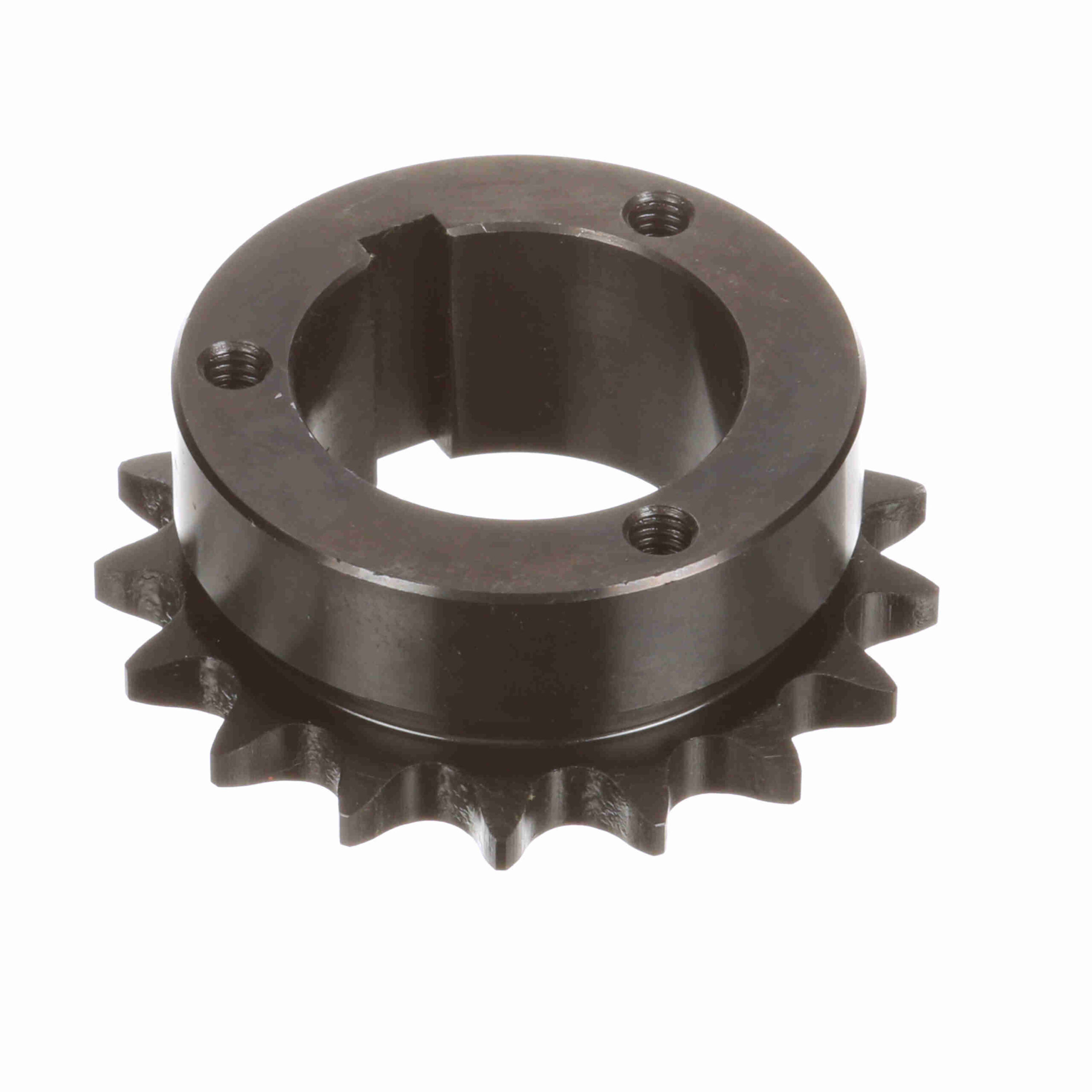

Browning Steel Bushed Bore Roller Chain Sprocket – H50P17
$153.68
Out of stock
Out of stock
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 0.625 in |
| Bore (Max) (in): | 1.75 in | Bushing Used: | Split Taper |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Pitch Diameter (in): | 3.401 in |
| Number of teeth: | 17 | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.216225 in | Outside Diameter (in): | 3.718 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.343 |
| Number of Hubs: | 1 | UPC: | 662289205103 |
| Weight: | 1.59 LB | Packaged Length: | 4.40 Inches |
| Packaged Width: | 4.20 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
