- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6B184R

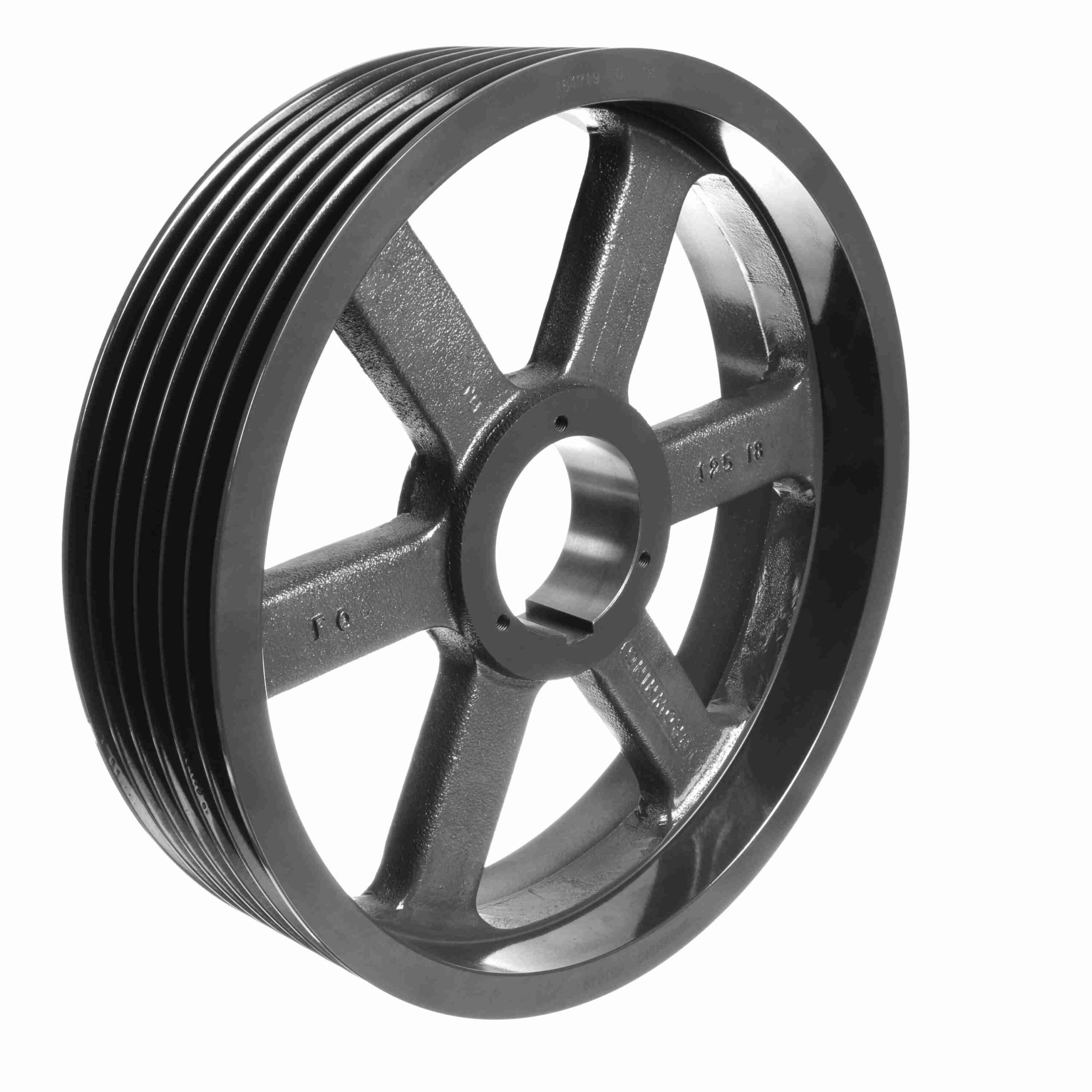

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6B184R
$895.64
Out of stock
Out of stock
| Bushing Used: | R1 | Datum Diameter (A): | 18 |
|---|---|---|---|
| Number of Grooves: | 6 | Pitch Diameter (A): | 18.2 |
| Pulley Material: | Cast Iron | Material: | Cast Iron |
| Overall Length (in): | 4.75 in | Outside Diameter (in): | 18.75 in |
| Pitch Diameter (B): | 18.7 | Datum Diameter (B): | 18.4 |
| Belt Section: | A, B | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 1.125 in | Bore Type: | Split Taper Bushed |
| Keyway Size: | .750 | Pulley Construction: | Spoked |
| Bushing Bore Range: | 1.125 - 3.750 | Overall Width (in): | 4.75 |
| Face Width (in): | 4.75 | UPC: | 662289125296 |
| Weight: | 72.00 LB | Packaged Length: | 20.38 Inches |
| Packaged Width: | 20.38 Inches | Packaged Height: | 4.75 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
