- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
20L050JA

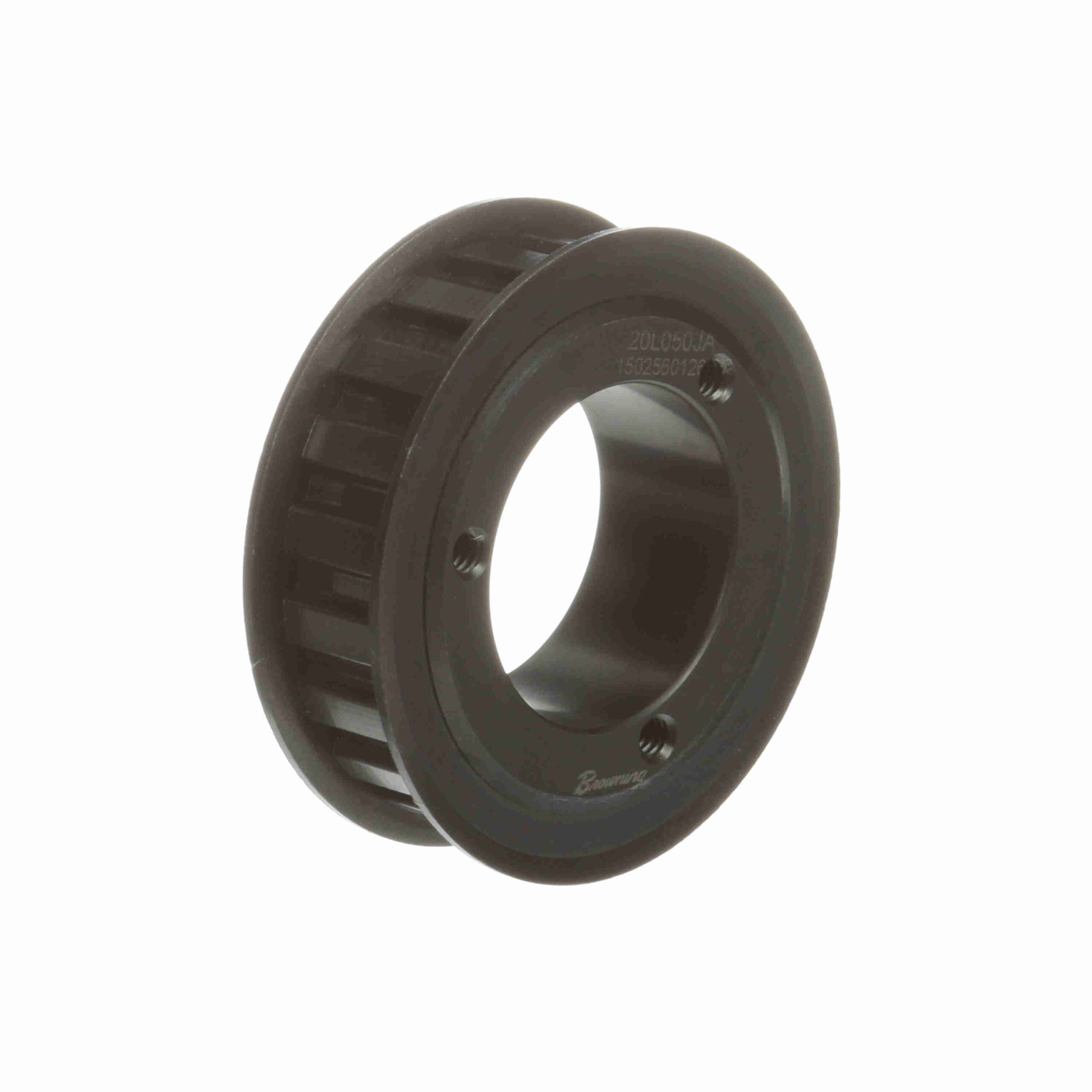

Browning Steel Bushed Bore Gearbelt Pulley – 20L050JA
$119.35
Out of stock
Out of stock
| Width (mm): | 12.7 mm | Model Name: | GBPulley_Master6 |
|---|---|---|---|
| Number of teeth: | 20 | Product Type: | Gearbelt Pulley |
| Bore Range: | 1/2 to 1 1/4 | Bore Type: | Bushed Bore |
| Material: | Steel | Outside Diameter (in): | 2.357 in |
| Pitch Diameter (in): | 2.387 in | Belt Section: | L |
| Outside Diameter (mm): | 59.8678 mm | Flange (in): | 2.6250 in |
| Width (in): | 0.5 in | Face Width: | 0.75 |
| Number of Hubs: | 1 | Pulley Construction: | Solid |
| Hub Diameter (in): | 2 in | With Flanges: | With Flanges |
| Length Through Bore: | 0.89 | Overall Length (in): | 1.83025 in |
| Hub Projection: | 0.799 | UPC: | 662289346523 |
| Weight: | 0.61 LB | Packaged Length: | 3.1 Inches |
| Packaged Width: | 3 Inches | Packaged Height: | 1.3 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
