- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
22LB050

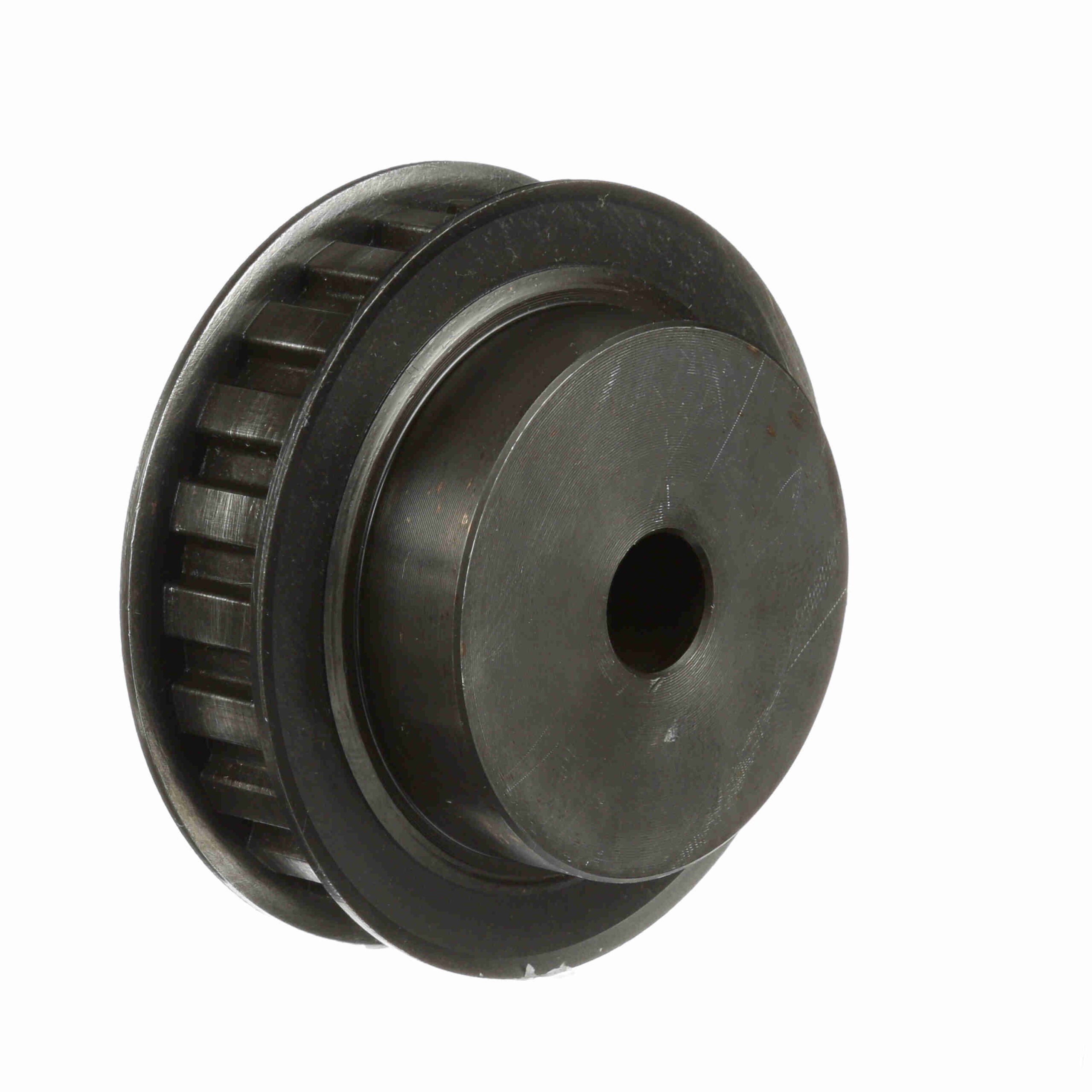

Browning Steel Rough Bore Gearbelt Pulley – 22LB050
$100.67
Out of stock
Out of stock
| Bore Range: | 1/2 to 1 1/4 | Product Type: | Gearbelt Pulley |
|---|---|---|---|
| Model Name: | GBPulley_Master2 | Width (mm): | 12.7 mm |
| Number of teeth: | 22 | Material: | Steel |
| Bore Type: | Rough Bore | Belt Section: | L |
| Outside Diameter (mm): | 65.9384 mm | Outside Diameter (in): | 2.596 in |
| Width (in): | 0.5 in | Pitch Diameter (in): | 2.626 in |
| Flange (in): | 2.8750 in | Face Width: | 0.75 |
| Pulley Construction: | Solid | Length Through Bore: | 1.25 |
| Overall Length (in): | 1.25 in | Bore Diameter (in): | 0.5 in |
| With Flanges: | With Flanges | Hub Diameter (in): | 2 in |
| Number of Hubs: | 1 | Hub Projection: | 0.5 |
| UPC: | 662289192205 | Weight: | 1.45 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 3.06 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
