- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
200 O/L

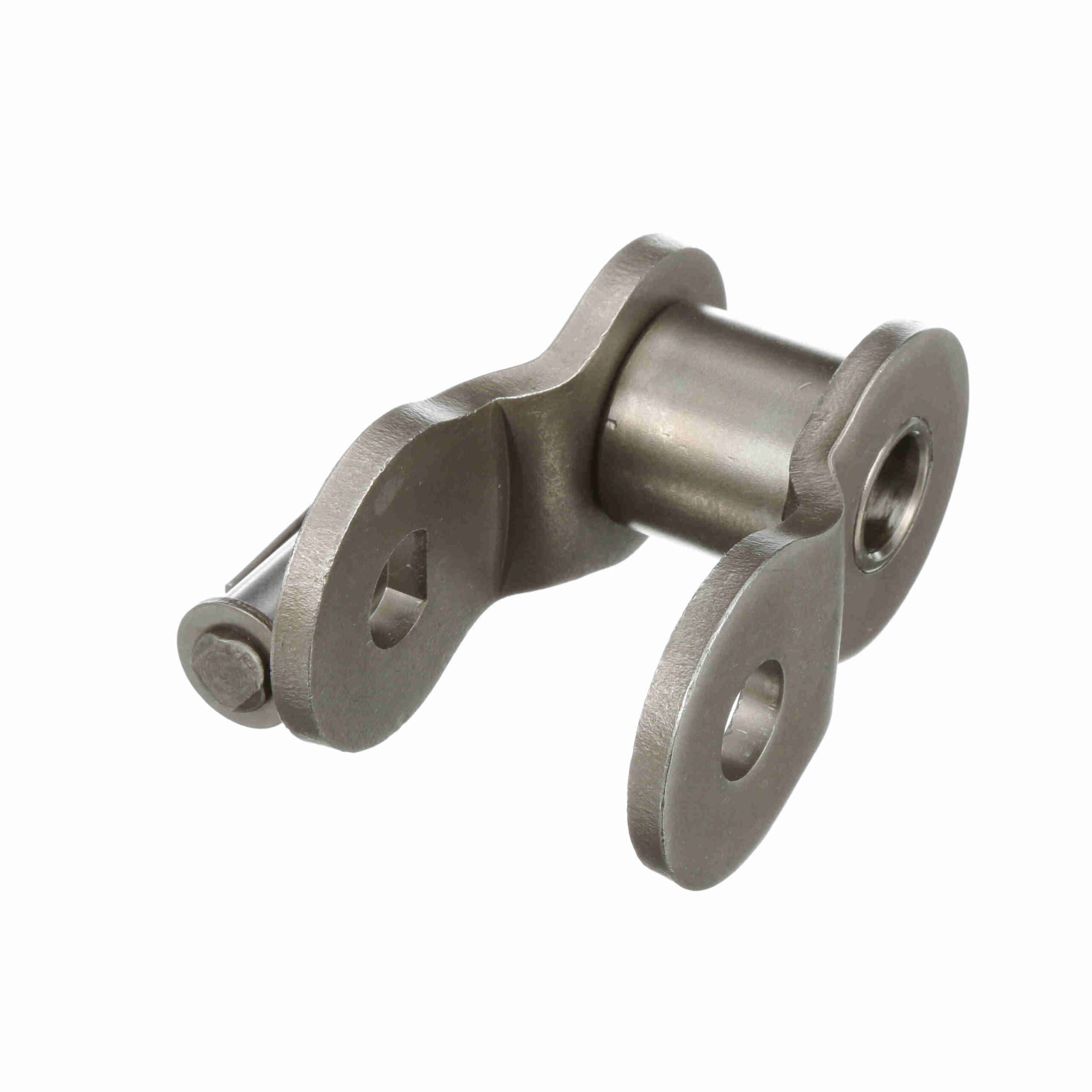

Morse Standard Roller Chain Offset Link – 200 O/L
$110.09
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 1.777 | Chain Size: | 200 |
|---|---|---|---|
| Centerline to Opposite cotter Pin Side: | 1.56 | Width Over Pins/Total Width: | 3.12 |
| Pin Diameter (in): | 0.781 in | Material: | Steel |
| Roller Width (in): | 1.5 in | Single Pitch Offset Link: | Cottered |
| Roller Diameter (in): | 1.562 in | Plate Thickness: | 0.312 |
| Number of Strands/Width: | 1 | Average Ultimate Tensile Strength (psi): | 95, 000 |
| Side Plate Cfg.: | Hourglass | Inside Plate Height: | 2.25 |
| Chain Pitch (in): | 2.5 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Link Type: | Offset Link |
| UPC: | 662288560425 | Weight: | 2.86 LB |
| Packaged Length: | 4.90 Inches | Packaged Width: | 3.00 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
