- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
200 C/L C/P S/F

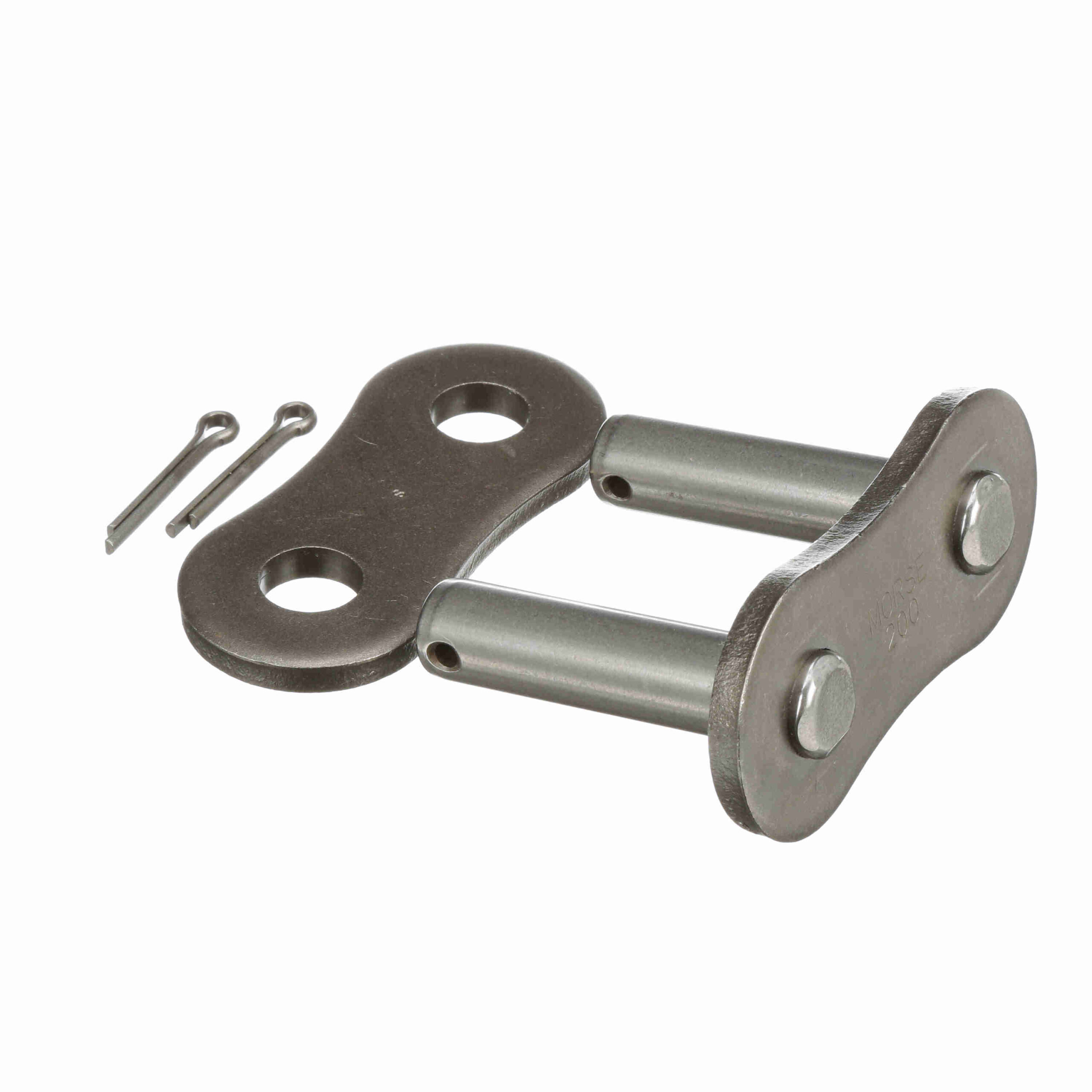

Morse Standard Roller Chain Cotter Pin Connecting Link – 200 C/L C/P S/F
$65.92
Out of stock
Out of stock
| Width Over Pins/Total Width: | 3.12 | Average Ultimate Tensile Strength (psi): | 95, 000 |
|---|---|---|---|
| Inside Plate Height: | 2.25 | Centerline to Outside of cotter Pin: | 1.777 |
| Side Plate Cfg.: | Hourglass | Pin Diameter (in): | 0.781 in |
| Chain Size: | 200 | Material: | Steel |
| Roller Diameter (in): | 1.562 in | Roller Width (in): | 1.5 in |
| Number of Strands/Width: | 1 | Number of Connecting Links Included: | 1 |
| Centerline to Opposite cotter Pin Side: | 1.56 | Connecting Link - Slip Fit: | Cotter |
| Plate Thickness: | 0.312 | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 2.5 in |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468424 | Weight: | 2.53 LB |
| Packaged Length: | 3.40 Inches | Packaged Width: | 4.60 Inches |
| Packaged Height: | 2.20 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
