- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
200-2R 10FT

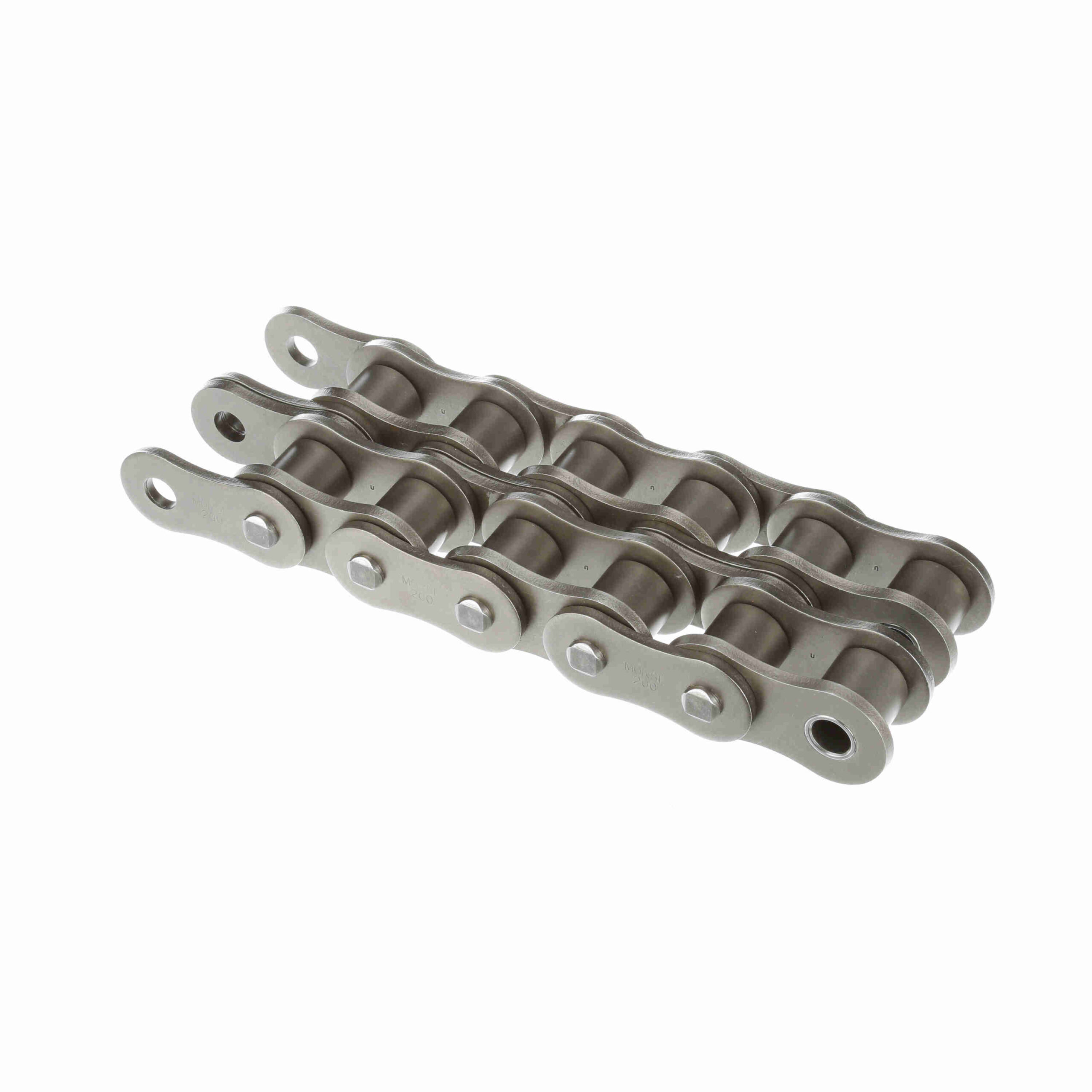

Morse Standard Riveted Roller Chain – 200-2R 10FT
$369.40
Out of stock
Out of stock
| Number of Strands/Width: | 2 | Roller Diameter (in): | 1.562 in |
|---|---|---|---|
| Plate Thickness: | 0.312 | Side Plate Cfg.: | Hourglass |
| Centerline to Outside of cotter Pin: | 3.281 | Centerline to Opposite cotter Pin Side: | 2.968 |
| Average Ultimate Tensile Strength (psi): | 190, 000 | Material: | Steel |
| Chain Size: | 200 | Roller Width (in): | 1.5 in |
| Width Over Pins/Total Width: | 5.937 | Chain Construction: | Riveted |
| Number of Connecting Links Included: | 1 | Inside Plate Height: | 2.25 |
| Center Plates: | Loose Fit, Press Fit Optional | Pin Diameter (in): | 0.781 in |
| Chain Pitch (in): | 2.5 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Total Length: | 10 FT ft |
| Coating: | Uncoated | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 2.817 |
| Pin Length - Riveted: | 5.937 | UPC: | 662288455622 |
| Weight: | 21.51 LB | Packaged Length: | 19.00 Inches |
| Packaged Width: | 19.00 Inches | Packaged Height: | 6.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
