- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
160C 10FT

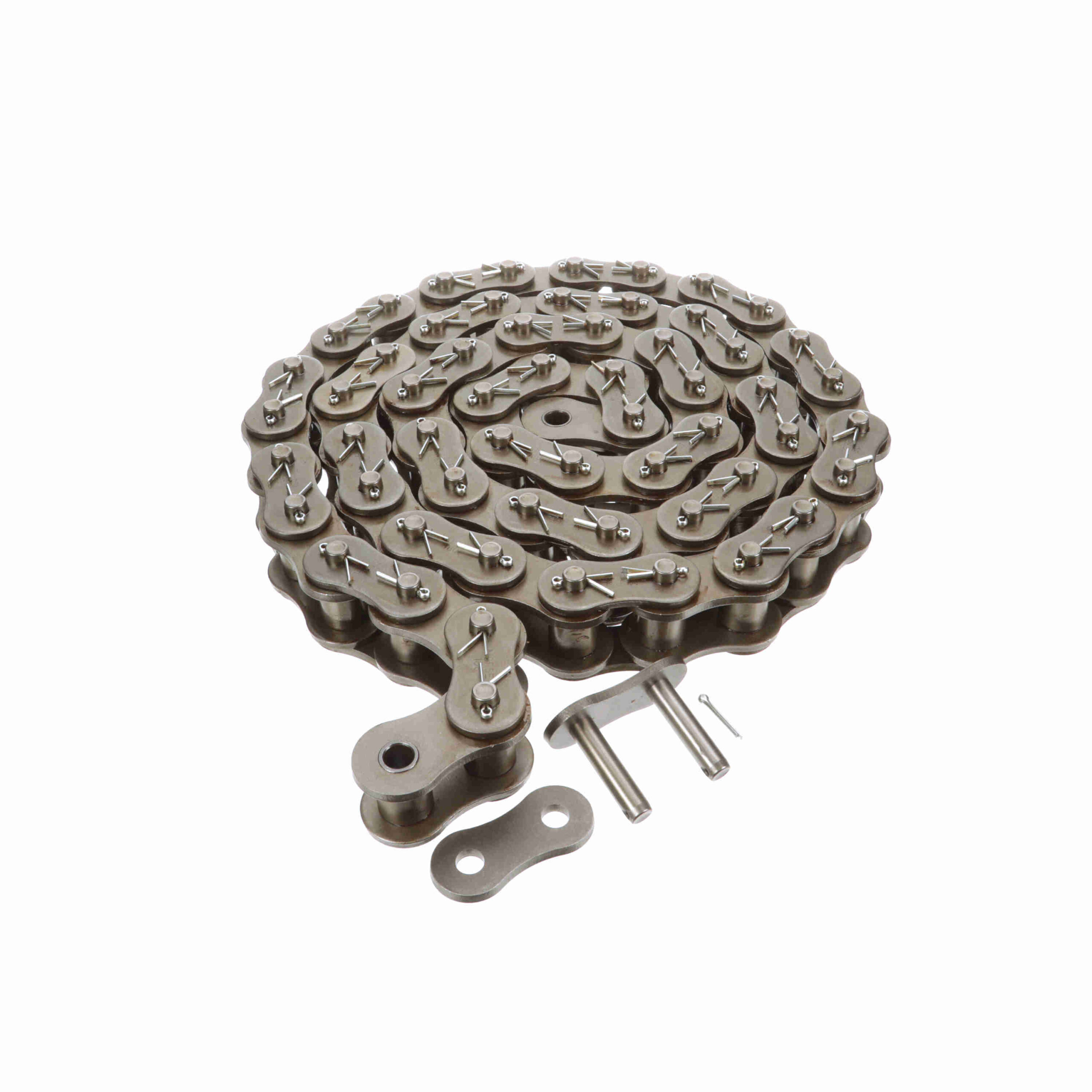

Morse Standard Cottered Roller Chain – 160C 10FT
$90.92
Out of stock
Out of stock
| Inside Plate Height: | 1.866 | Pin Diameter (in): | 0.562 in |
|---|---|---|---|
| Roller Diameter (in): | 1.125 in | Roller Width (in): | 1.25 in |
| Side Plate Cfg.: | Hourglass | Number of Strands/Width: | 1 |
| Width Over Pins/Total Width: | 2.522 | Chain Size: | 160 |
| Chain Construction: | Cottered | Number of Connecting Links Included: | 1 |
| Average Ultimate Tensile Strength (psi): | 58, 000 | Centerline to Opposite cotter Pin Side: | 1.261 |
| Centerline to Outside of cotter Pin: | 1.451 | Material: | Steel |
| Plate Thickness: | 0.25 | Product Type: | Roller Chain |
| Chain Type: | Standard | Chain Pitch (in): | 2 in |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 2.522 | UPC: | 662288395331 |
| Weight: | 6.61 LB | Packaged Length: | 17.25 Inches |
| Packaged Width: | 17.25 Inches | Packaged Height: | 3.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
