- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
160 O/L

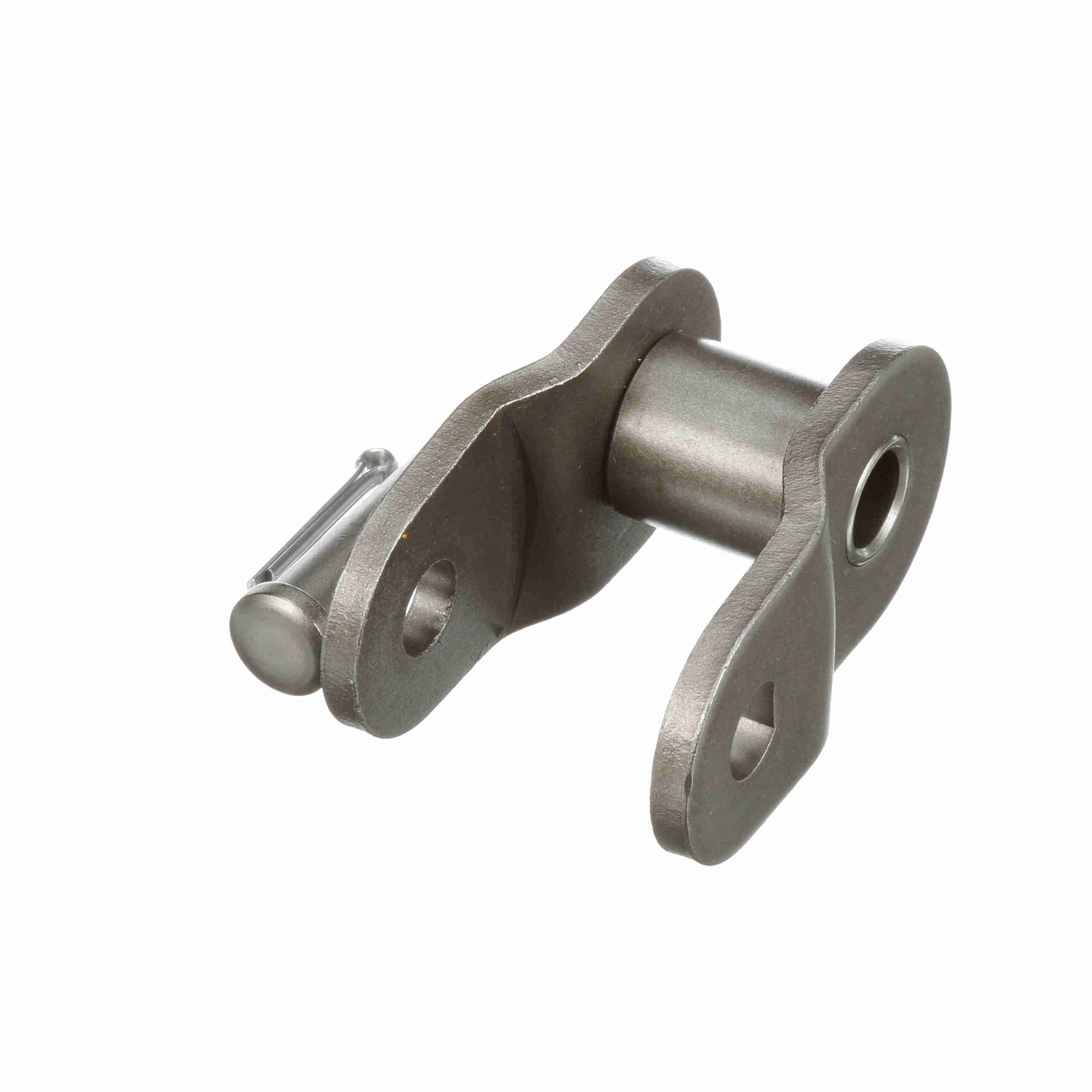

Morse Standard Roller Chain Offset Link – 160 O/L
$46.97
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Roller Diameter (in): | 1.125 in |
|---|---|---|---|
| Chain Size: | 160 | Plate Thickness: | 0.25 |
| Single Pitch Offset Link: | Cottered | Inside Plate Height: | 1.866 |
| Roller Width (in): | 1.25 in | Pin Diameter (in): | 0.562 in |
| Centerline to Opposite cotter Pin Side: | 1.261 | Centerline to Outside of cotter Pin: | 1.451 |
| Material: | Steel | Average Ultimate Tensile Strength (psi): | 58, 000 |
| Width Over Pins/Total Width: | 2.522 | Number of Strands/Width: | 1 |
| Product Type: | Roller Chain | Chain Pitch (in): | 2 in |
| Chain Type: | Standard | Link Type: | Offset Link |
| UPC: | 662288395607 | Weight: | 1.58 LB |
| Packaged Length: | 6.45 Inches | Packaged Width: | 4.30 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
