- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS621

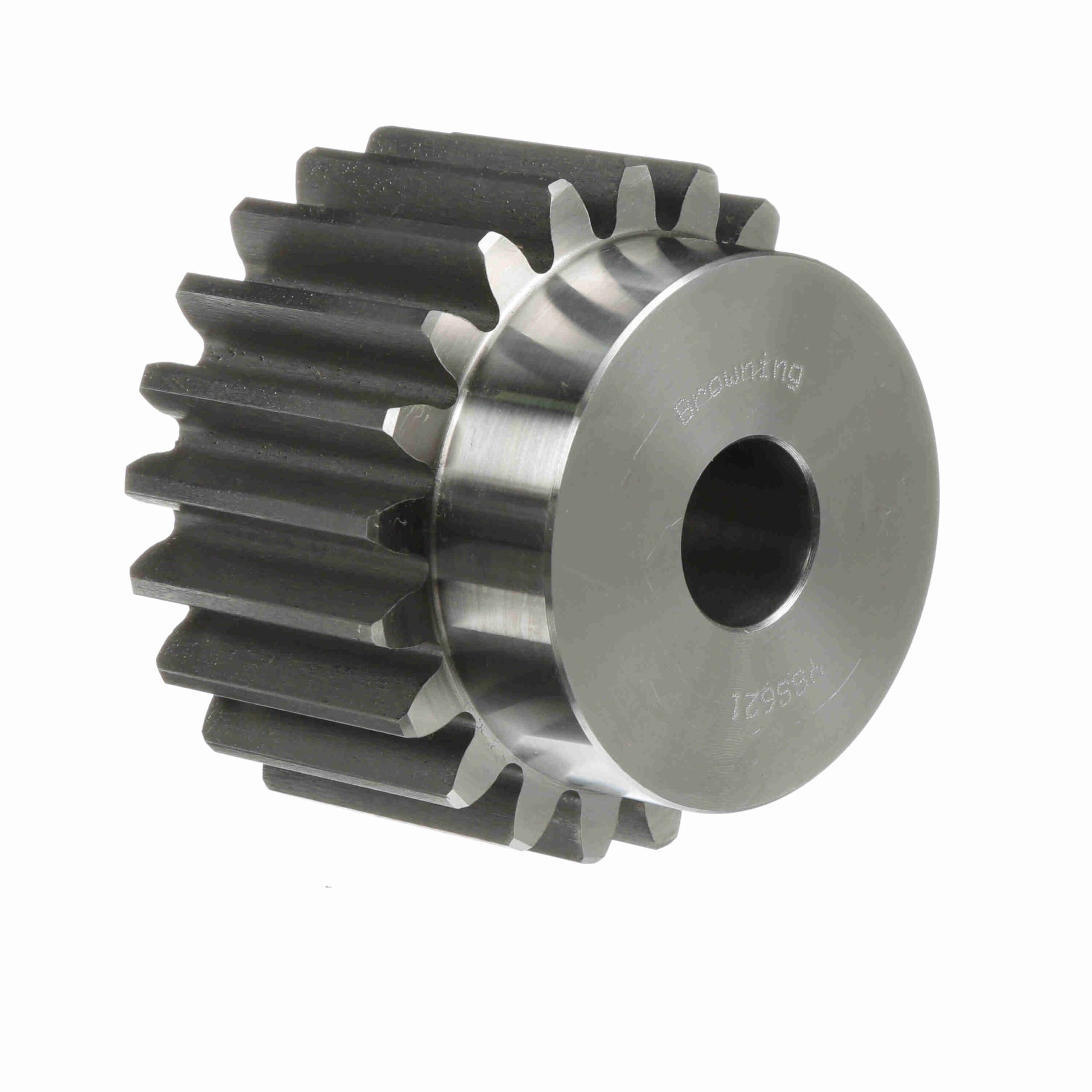

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 6 DP – YSS621
$292.60
Out of stock
Out of stock
| Material: | Steel | Number of Teeth/Threads: | 21 |
|---|---|---|---|
| Pitch Diameter (in): | 3.5 in | Outside Diameter (in): | 3.83 in |
| Face Width (in): | 2 in | Hub Diameter (in): | 3 in |
| Pressure Angle: | 20 | Diametral Pitch: | 6 |
| Hub Projection (in): | 0.875 in | Length Through Bore (in): | 2.875 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 2 in |
| Bore (Min) (in): | 1 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.875 in |
| Gear Construction: | Plain | UPC: | 662289166961 |
| Weight: | 6.53 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.40 Inches | Packaged Height: | 3.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
