- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS660

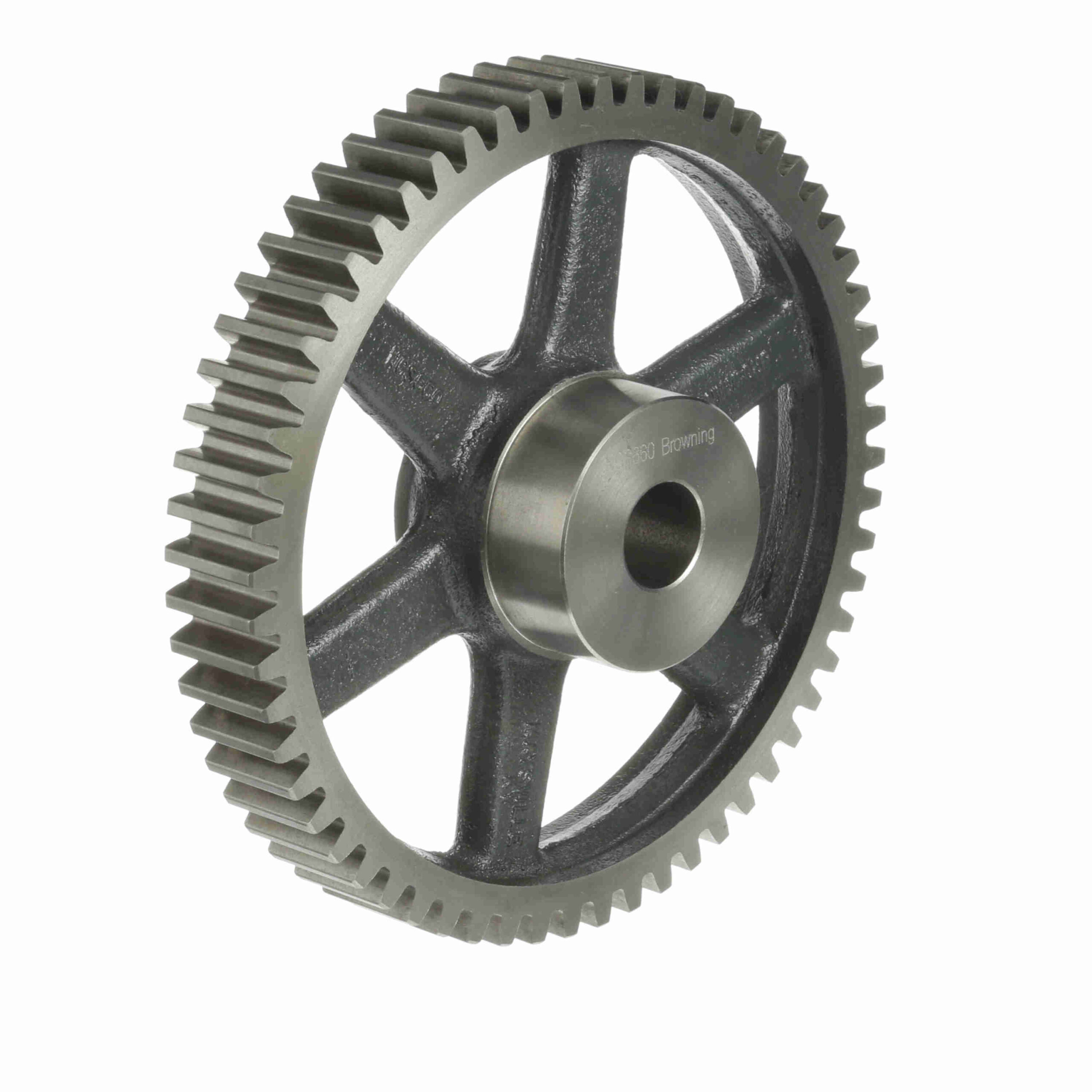

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 6 DP – NCS660
Out of stock
| Pressure Angle: | 14.5 | Hub Diameter (in): | 3.25 in |
|---|---|---|---|
| Outside Diameter (in): | 10.33 in | Hub Projection (in): | 1.25 in |
| Material: | Gray Iron | Face Width (in): | 1.5 in |
| Diametral Pitch: | 6 | Pitch Diameter (in): | 10 in |
| Number of Teeth/Threads: | 60 | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2 in | Length Through Bore (in): | 2.75 in |
| Bore (Min) (in): | 1.25 in | Bore Size (in): | 1.25 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.75 in |
| UPC: | 662289294169 | Weight: | 15.63 LB |
| Packaged Length: | 11.50 Inches | Packaged Width: | 11.50 Inches |
| Packaged Height: | 3.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
