- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS12G30

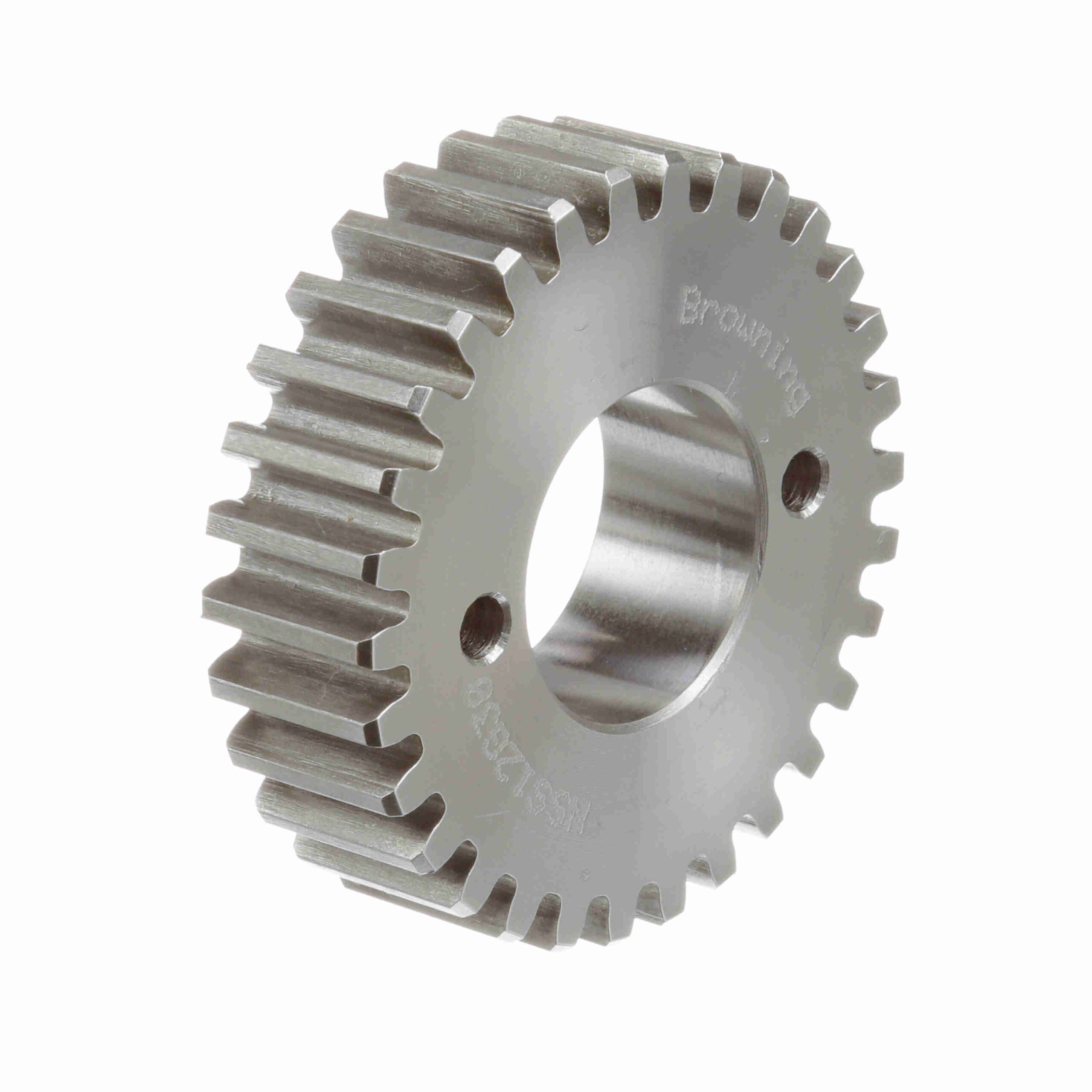

Browning Steel Bushed Bore Spur Gear – 14.5 PA 12 DP – NSS12G30
$132.58
Out of stock
Out of stock
| Number of Teeth/Threads: | 30 | Material: | Steel |
|---|---|---|---|
| Outside Diameter (in): | 2.66 in | Diametral Pitch: | 12 |
| Pitch Diameter (in): | 2.5 in | Pressure Angle: | 14.5 |
| Face Width (in): | 0.75 in | Length Through Bore (in): | 1.375 in |
| Bore (Max) (in): | 1 in | Bore Type: | Bushed Bore |
| Bore (Min) (in): | 0.375 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.375 in | Hub Type: | G |
| Standard Met: | AGMA | Overall Length (in): | 1.375 in |
| UPC: | 662289195145 | Weight: | 0.80 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 3.06 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
