- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS520

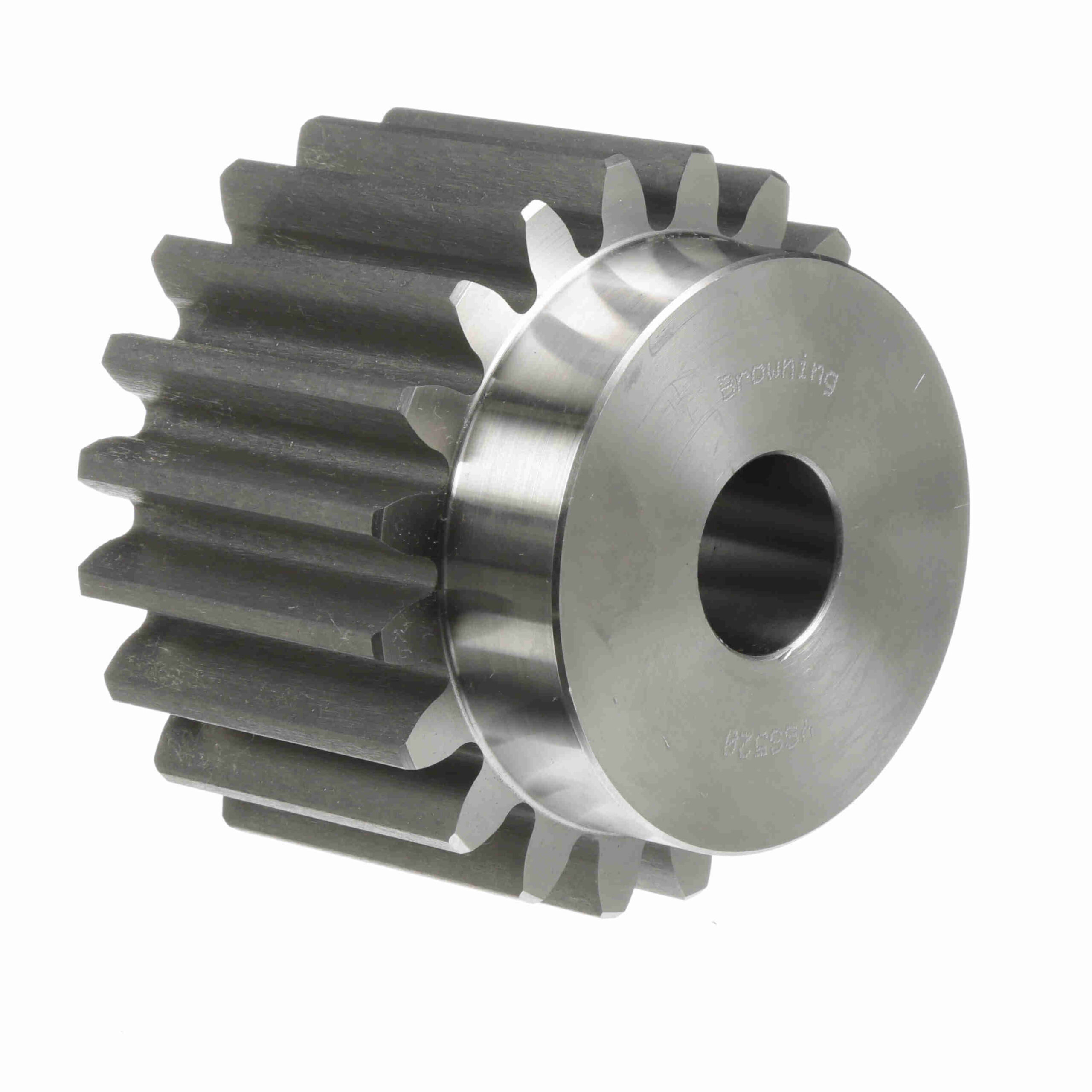

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 5 DP – YSS520
$361.30
Out of stock
Out of stock
| Pressure Angle: | 20 | Face Width (in): | 2.5 in |
|---|---|---|---|
| Hub Projection (in): | 0.875 in | Pitch Diameter (in): | 4 in |
| Number of Teeth/Threads: | 20 | Diametral Pitch: | 5 |
| Outside Diameter (in): | 4.4 in | Material: | Steel |
| Hub Diameter (in): | 3.375 in | Bore (Min) (in): | 1.125 in |
| Length Through Bore (in): | 3.375 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2.375 in | Product Type: | Spur Gear |
| Bore Size (in): | 1.125 in | Hub Type: | Type B |
| Overall Length (in): | 3.375 in | Standard Met: | AGMA |
| UPC: | 662289237166 | Weight: | 10.05 LB |
| Packaged Length: | 4.88 Inches | Packaged Width: | 4.88 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
