- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS828

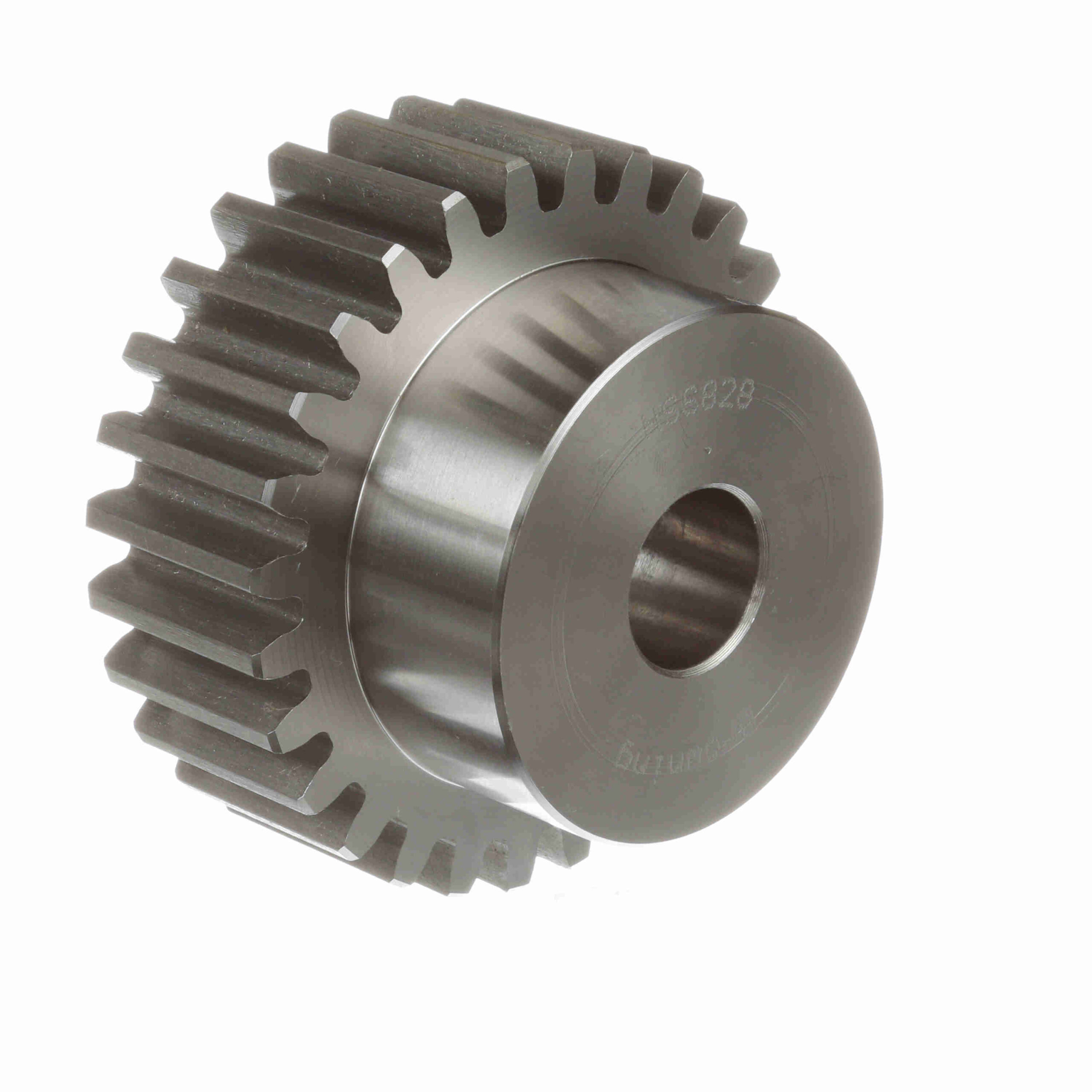

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 8 DP – NSS828
$360.18
Out of stock
Out of stock
| Outside Diameter (in): | 3.75 in | Hub Diameter (in): | 2.625 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Hub Projection (in): | 1 in |
| Face Width (in): | 1.25 in | Number of Teeth/Threads: | 28 |
| Diametral Pitch: | 8 | Material: | Steel |
| Pitch Diameter (in): | 3.5 in | Bore (Min) (in): | 0.875 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 1.75 in |
| Length Through Bore (in): | 2.25 in | Bore Size (in): | 0.875 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.25 in |
| UPC: | 662289183708 | Weight: | 4.55 LB |
| Packaged Length: | 4.90 Inches | Packaged Width: | 4.50 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
