- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS852

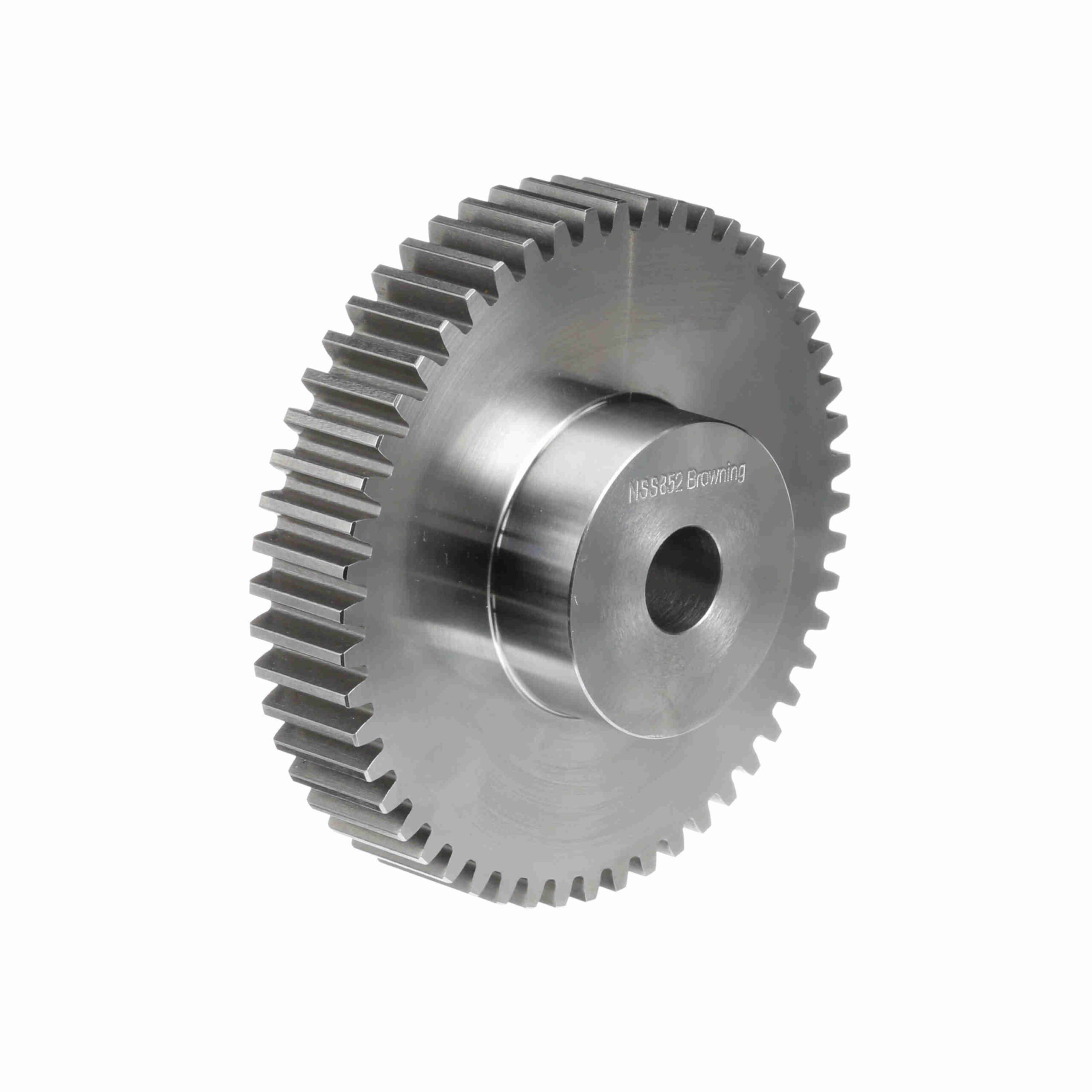

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 8 DP – NSS852
Out of stock
| Material: | Steel | Number of Teeth/Threads: | 52 |
|---|---|---|---|
| Hub Diameter (in): | 3 in | Pitch Diameter (in): | 6.5 in |
| Pressure Angle: | 14.5 | Outside Diameter (in): | 6.75 in |
| Hub Projection (in): | 1 in | Diametral Pitch: | 8 |
| Face Width (in): | 1.25 in | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.25 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.25 in |
| UPC: | 662289153848 | Weight: | 13.30 LB |
| Packaged Length: | 7.80 Inches | Packaged Width: | 7.70 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
