- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS1230

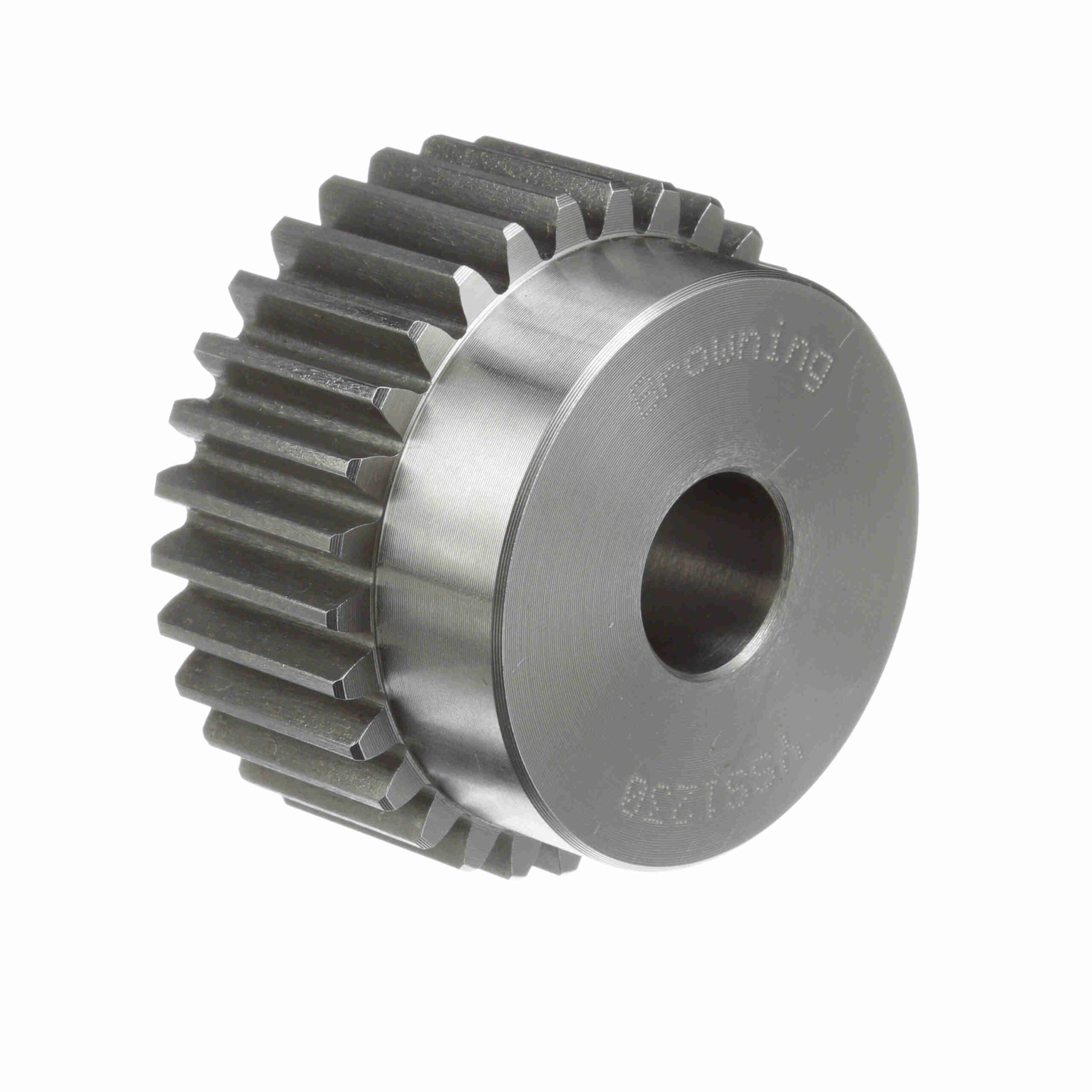

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 12 DP – YSS1230
$155.42
Out of stock
Out of stock
| Outside Diameter (in): | 2.66 in | Face Width (in): | 1 in |
|---|---|---|---|
| Pitch Diameter (in): | 2.5 in | Hub Projection (in): | 0.625 in |
| Number of Teeth/Threads: | 30 | Hub Diameter (in): | 2.25 in |
| Pressure Angle: | 20 | Diametral Pitch: | 12 |
| Material: | Steel | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.375 in | Length Through Bore (in): | 1.625 in |
| Bore (Min) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.625 in | Standard Met: | AGMA |
| UPC: | 662289246267 | Weight: | 1.91 LB |
| Packaged Length: | 3.50 Inches | Packaged Width: | 3.10 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
