- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
ST-23C

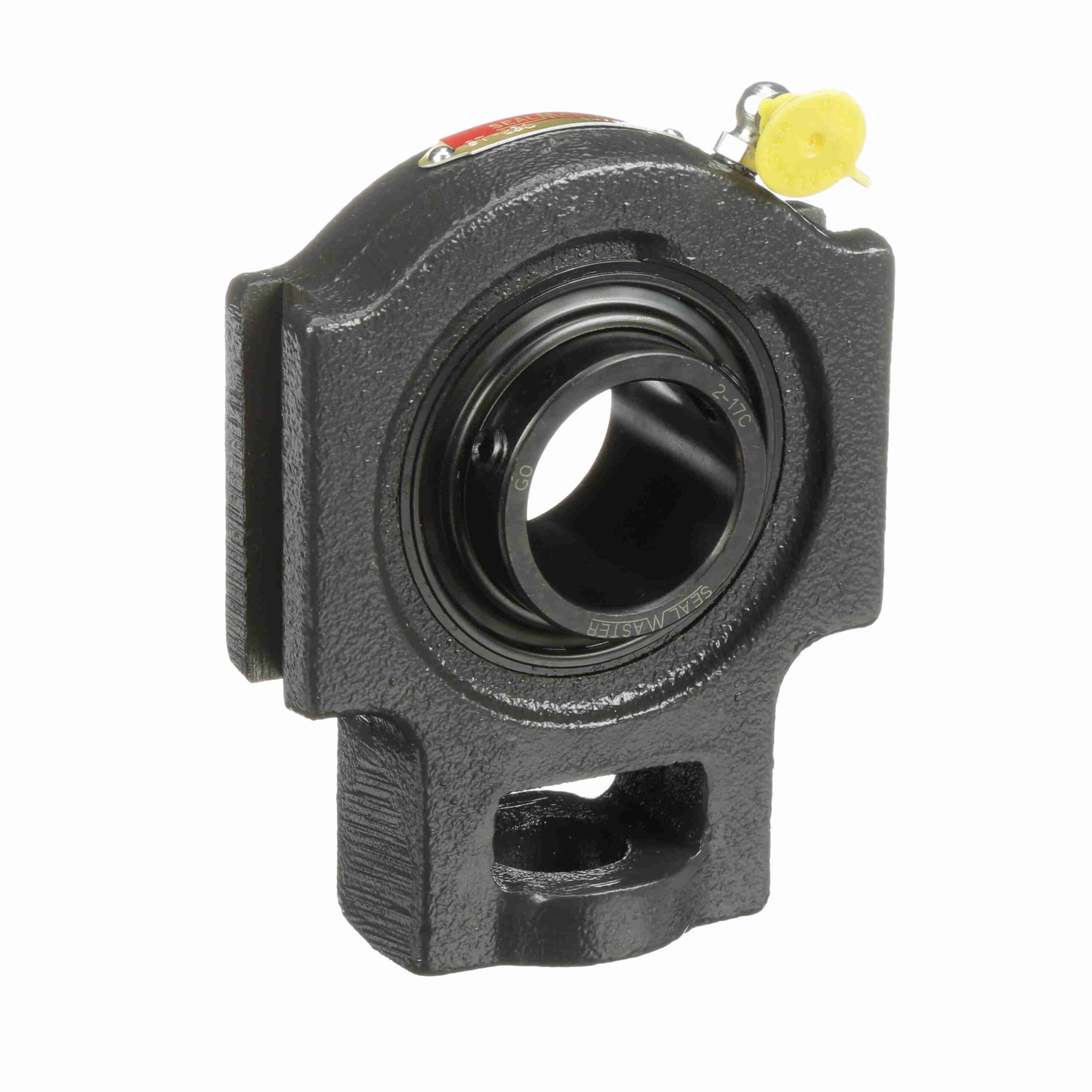

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ST-23C
$207.58
Availability: 3 in stock
Availability: 3 in stock
| Expansion: | No | Insert No.: | 2-17C |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Housing Type: | Take-Up Block; Wide Slot | Maximum Operating Temperature: | 220 °F |
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Speed (Max): | 4650 | Measure Units: | Inch |
| Locking Type: | Setscrew | Relubricatable: | Yes |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Internal Clearance: | Standard |
| Frame Type: | Center Pull Wide Slot | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| End Cap: | No | Series: | ST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461024041 | Weight: | 3.79 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
