- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTBS-228

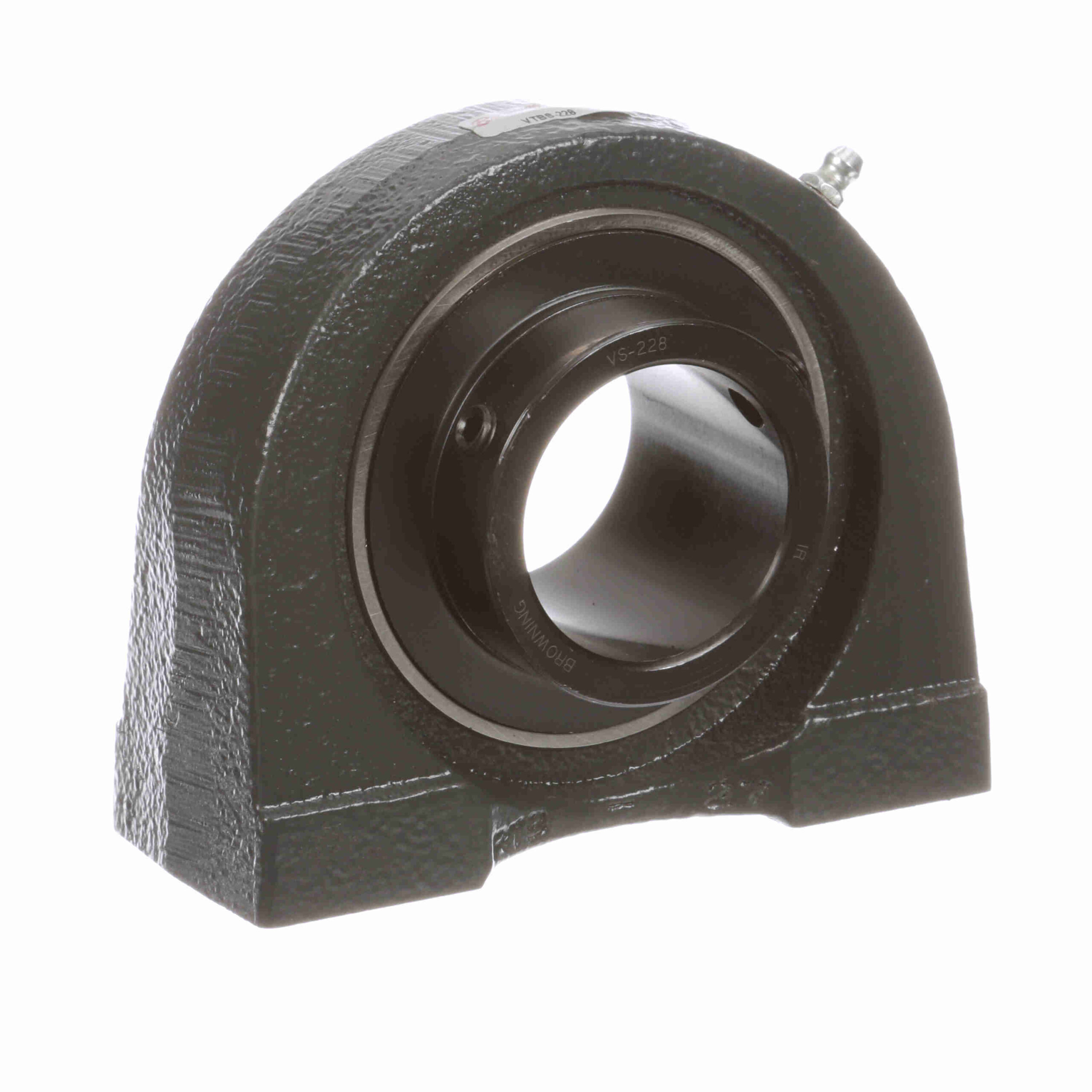

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTBS-228
$415.69
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Housing Base: | Semi-Solid | Housing Construction: | One Piece |
| Bore Shape: | Straight | Misalignment: | ±1.5° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 7, 901 lb | Internal Clearance: | Standard |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Radial Static Load Capacity (lb): | 5, 139 lb |
| Housing Style: | Pillow Block | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Tapped Base | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Maximum Speed (RPM): | 3000 rpm | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Cast Iron | Locking Type: | Setscrew |
| Fixed vs. Expansion: | Fixed | Insert Number: | VS-228 |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| UPC: | 662290000000 | Weight: | 4.70 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
