- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-16

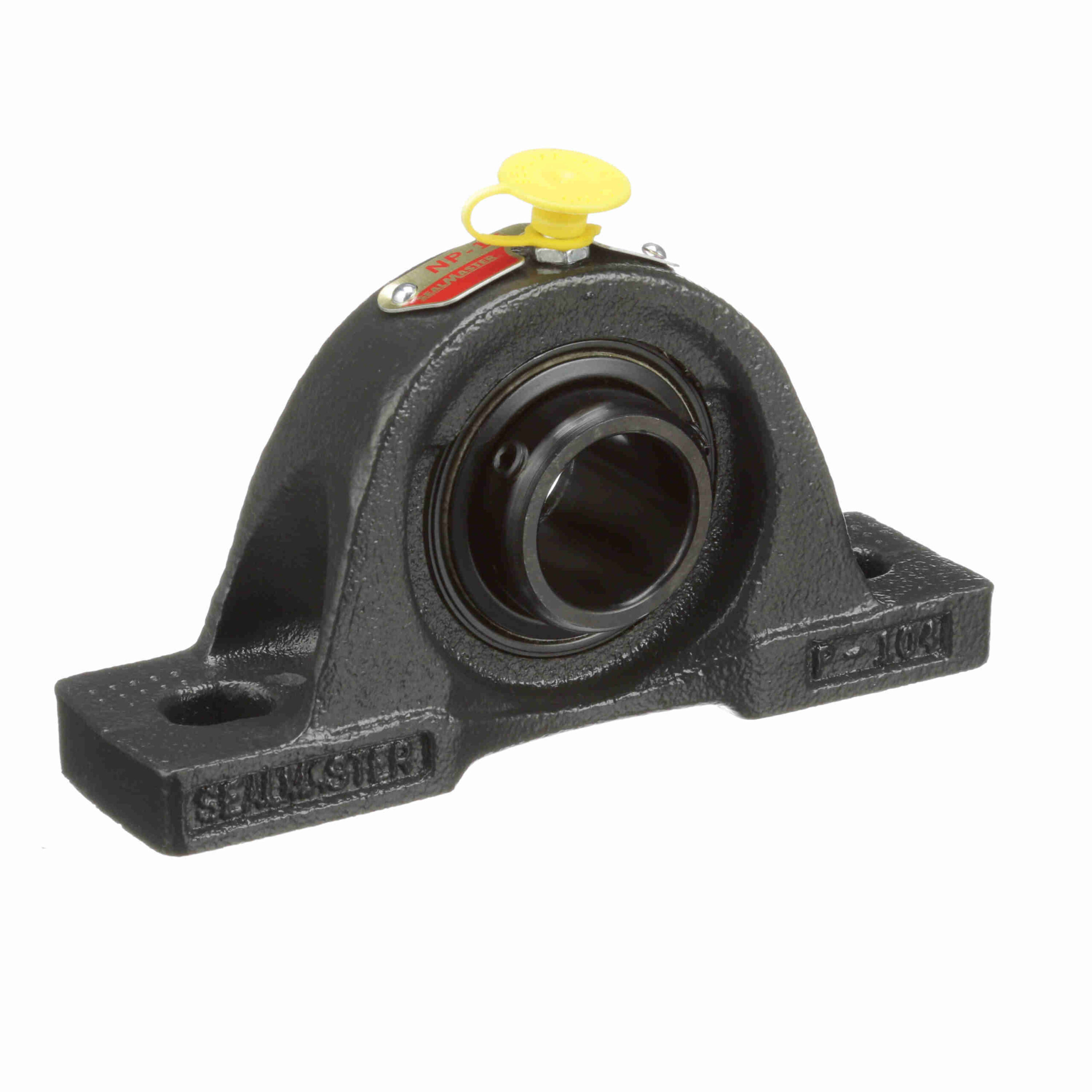

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-16
$96.65
Availability: 737 in stock
Availability: 737 in stock
| Maximum Operating Temperature: | 220 °F | Insert No.: | 2-1 |
|---|---|---|---|
| Housing Type: | Pillow Block; Two Bolt | Measure Units: | Inch |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Housing Base: | Solid | Retainer Type: | Land Riding Retainer |
| Expansion: | No | Speed (Max): | 6350 |
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Standard Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Relubricatable: | Yes | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | UPC: | 662461001561 |
| Weight: | 2.10 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
