- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VTBE-223

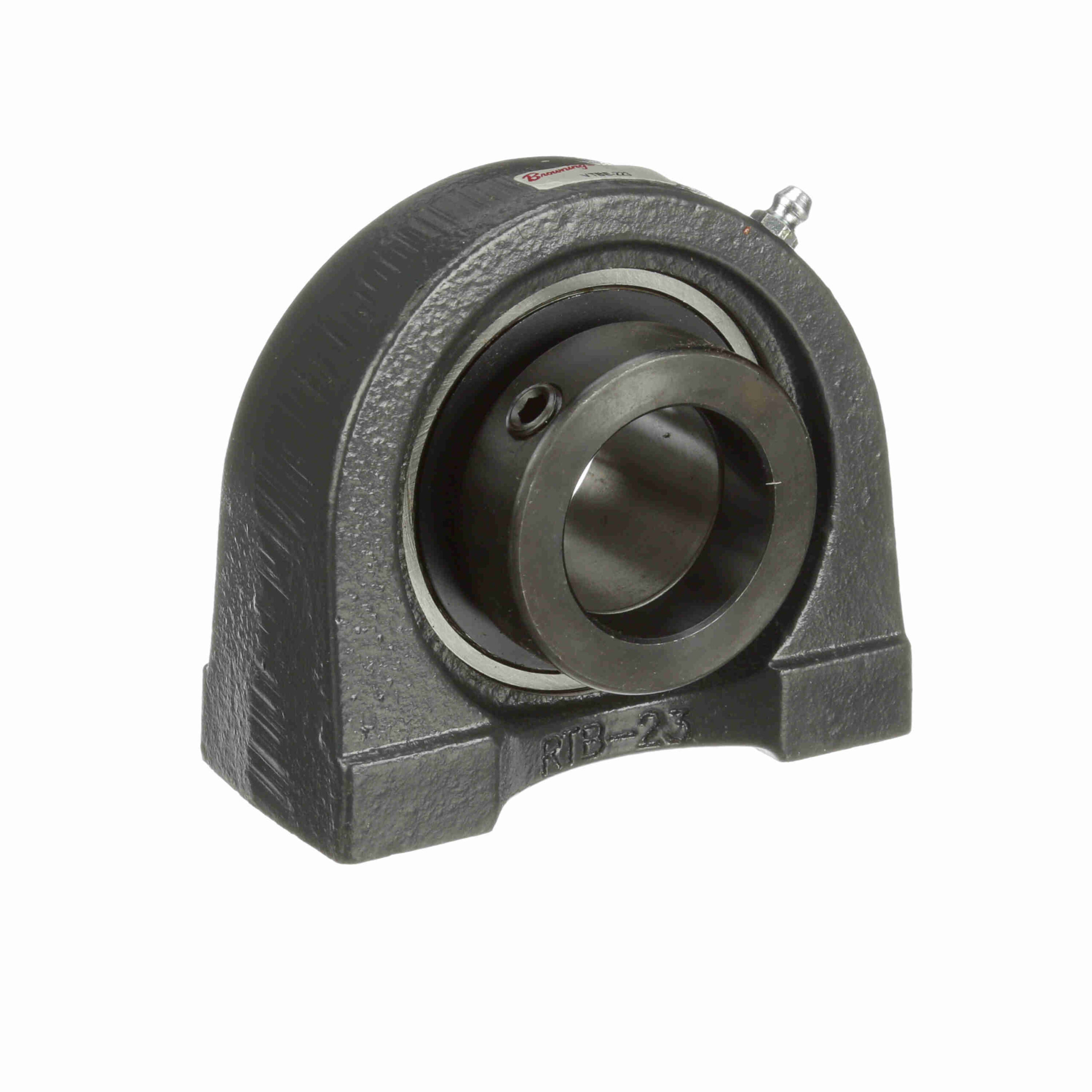

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VTBE-223
$286.81
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Base: | Semi-Solid |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Locking Type: | Eccentric | Housing Style: | Pillow Block |
| Duty/Series: | Standard Duty | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Pillow Block, Tapped Base | Housing Material: | Cast Iron |
| Maximum Speed (RPM): | 4000 rpm | Retainer Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Fixed | Maximum Operating Temperature (F): | 200 °F |
| Insert Number: | VE-223 | Ability to Relubricate: | Yes |
| UPC: | 662461000000 | Weight: | 3.50 LB |
| Packaged Length: | 4.25 Inches | Packaged Width: | 2.25 Inches |
| Packaged Height: | 4.25 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
