- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPL-23TC

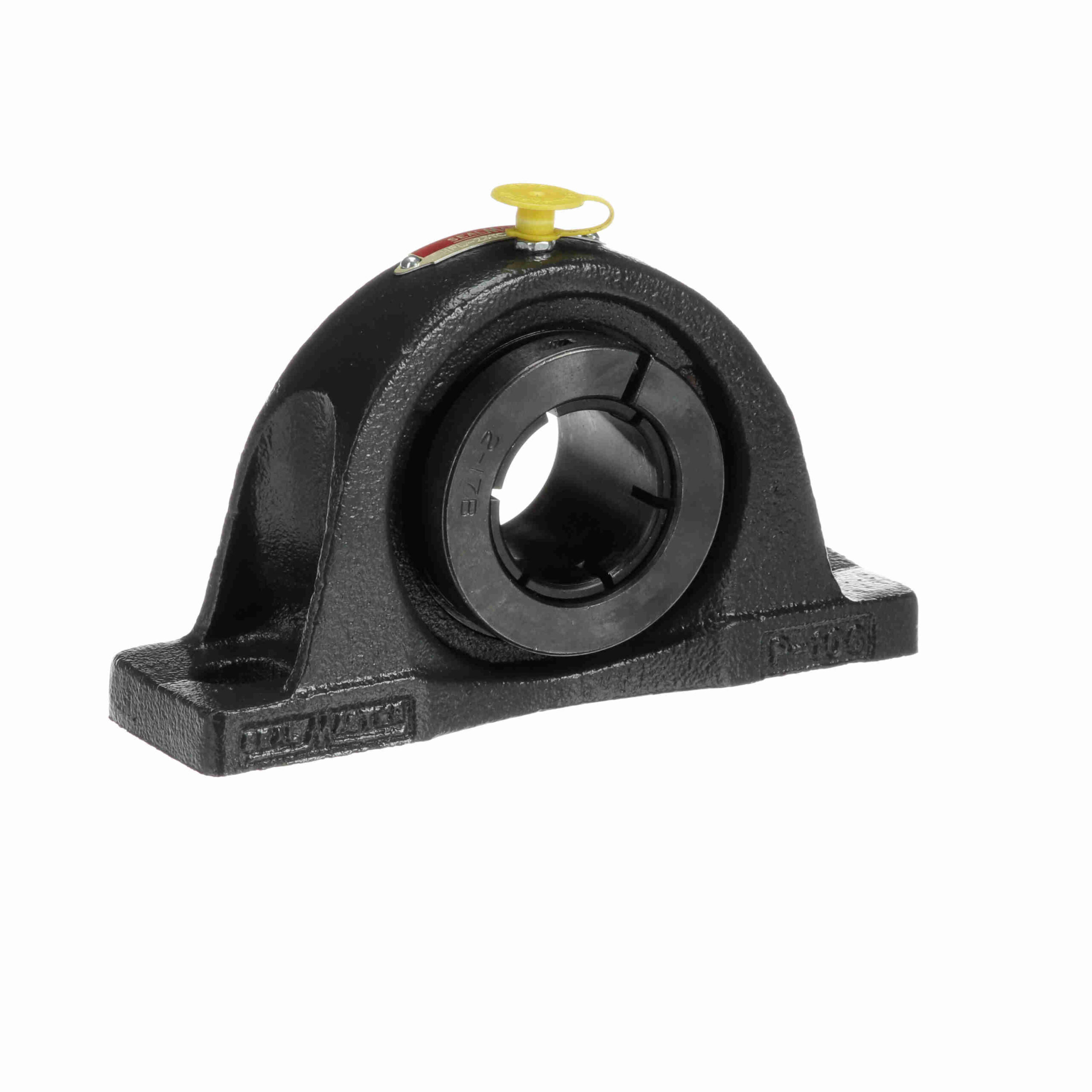

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – NPL-23TC
$220.22
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Internal Clearance: | Standard |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| End Cap: | No | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 3, 493 lb |
| Locking Type: | Concentric | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Maximum Speed (RPM): | 4650 rpm | Housing Style: | Pillow Block |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Insert Number: | 2-17TC |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | UPC: | 662461000000 |
| Weight: | 4.35 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
