- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPLS-120S

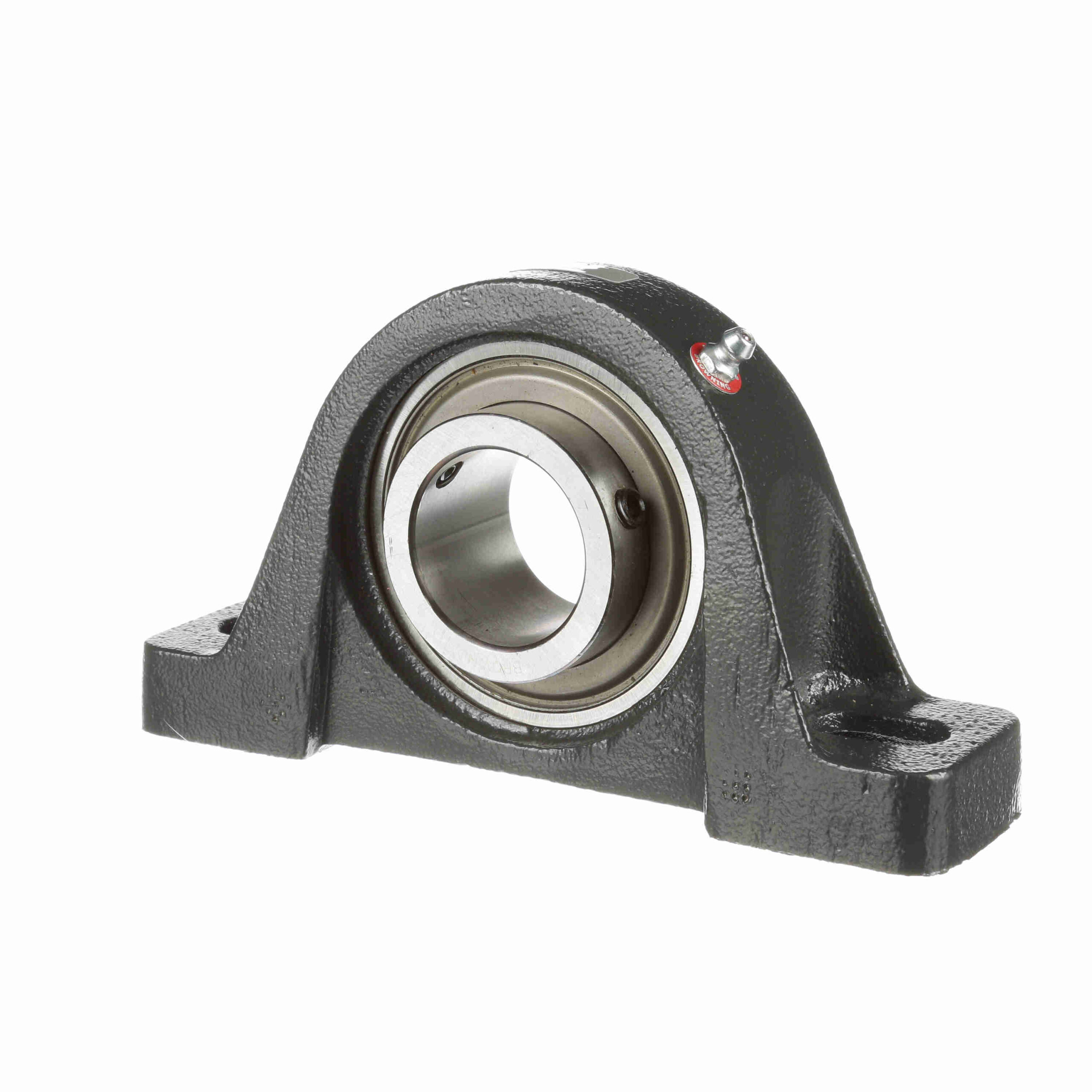

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPLS-120S
$89.71
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Speed (Max): | 3000 |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert No.: | VS-120S |
| Insert Material: | 52100 Bearing Steel | Housing Base: | Semi-Solid |
| Maximum Operating Temperature: | 200 °F | Seal Type: | Single Lip Contact Seal |
| Duty Series: | Intermediate Duty | Expansion: | No |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Retainer Type: | Ball Riding Retainer |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Relubricatable: | Yes | Bearing Insert Coating: | Uncoated |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | End Cap: | No |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289524655 |
| Weight: | 2.87 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
