- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-216

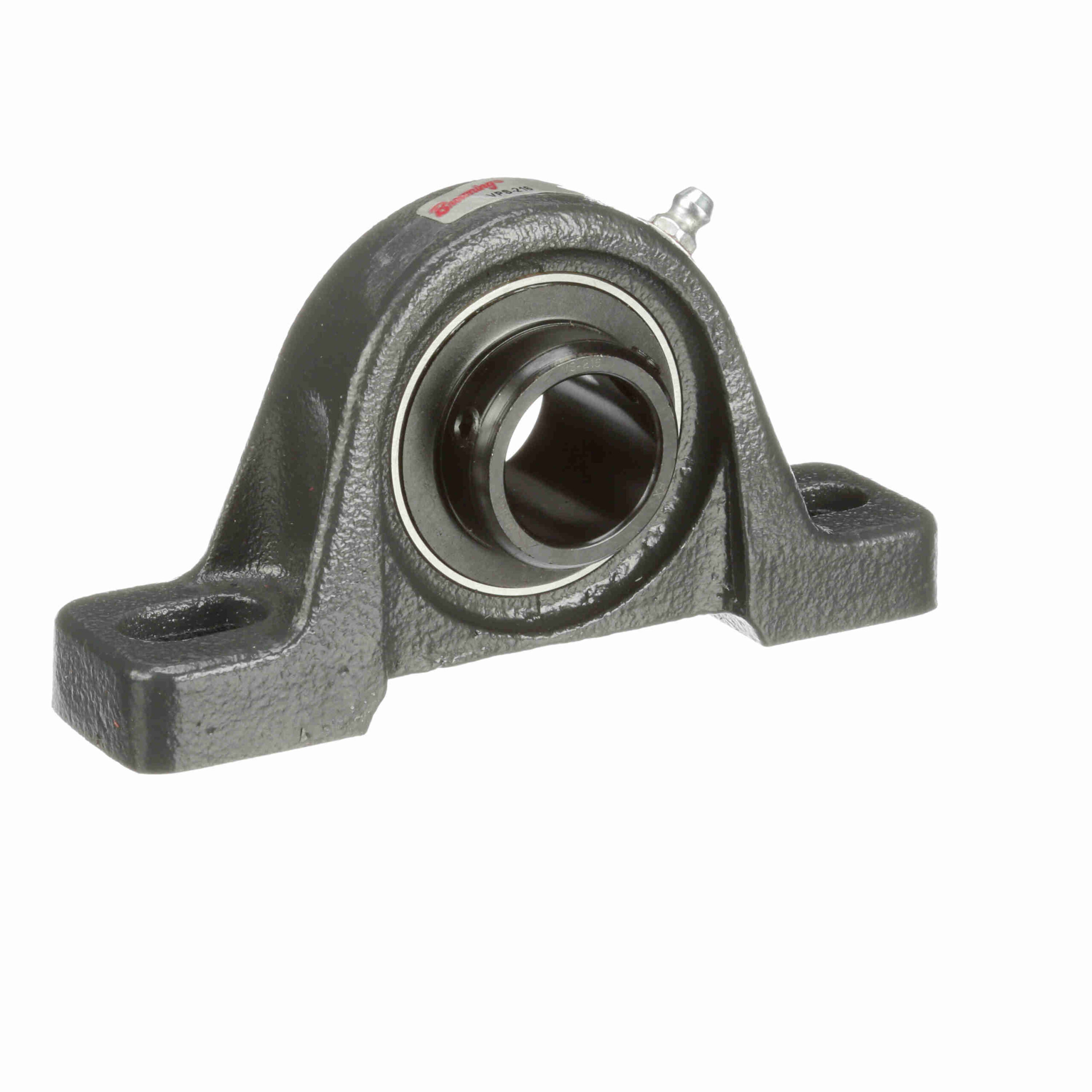

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-216
$68.41
Availability: 73 in stock
Availability: 73 in stock
| Insert No.: | VS-216 | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Internal Clearance: | Standard |
| Housing Material: | Cast Iron | Expansion: | No |
| Seal Type: | Single Lip Contact Seal with Flinger | Speed (Max): | 5500 |
| Housing Base: | Semi-Solid | Retainer Type: | Ball Riding Retainer |
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Housing Type: | Pillow Block; Two Bolt | Maximum Operating Temperature: | 200 °F |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Misalignment: | ±1.5° Misalignment - Static Only | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Housing Construction: | One Piece | End Cap: | No |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 1, 651 | UPC: | 662289525416 |
| Weight: | 1.77 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
