- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPB-212 AH

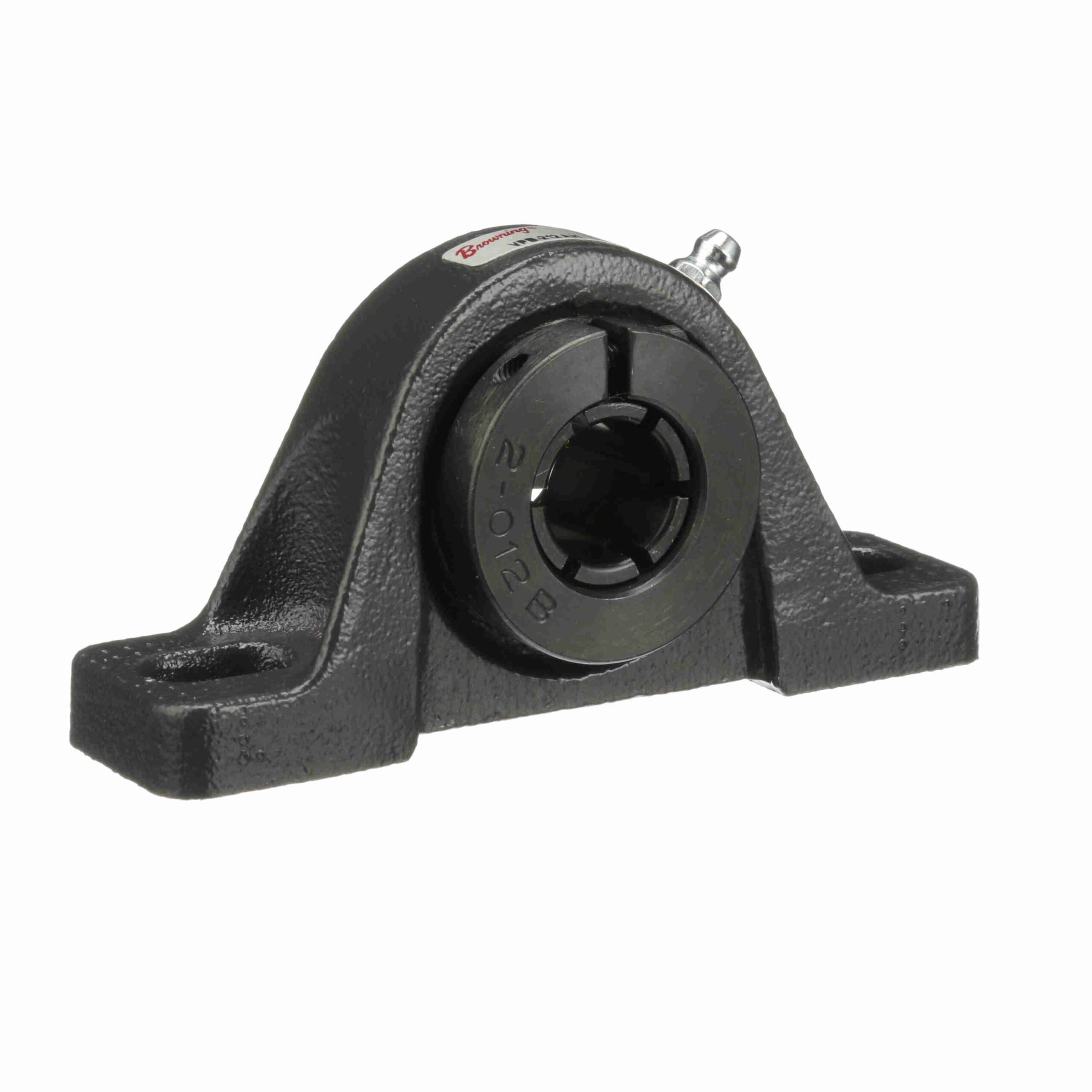

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – Air Handling Housing Fit, Noise Tested – VPB-212 AH
$120.66
Out of stock
Out of stock
| Housing Base: | Semi-Solid | Insert No.: | VB-212AH |
|---|---|---|---|
| Housing Material: | Cast Iron | Retainer Type: | Ball Riding Retainer |
| Maximum Operating Temperature: | 200 °F | Housing Type: | Pillow Block, Two Bolt |
| Internal Clearance: | Standard | Expansion: | No |
| Seal Type: | Single Lip Contact Seal with Flinger | Speed (Max): | 6500 |
| Duty Series: | Standard Duty | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Misalignment: | ±1.5° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Housing Construction: | One Piece |
| Relubricatable: | Yes | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | End Cap: | No |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Retainer Material: | Molded fiber glass reinforced nylon | Options: | Air Handling Housing Fit, Noise Tested |
| Housing Color: | Gray | Platform: | Air Handling |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662460347721 |
| Weight: | 1.60 LB | Packaged Length: | 3.19 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
