- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPE-220

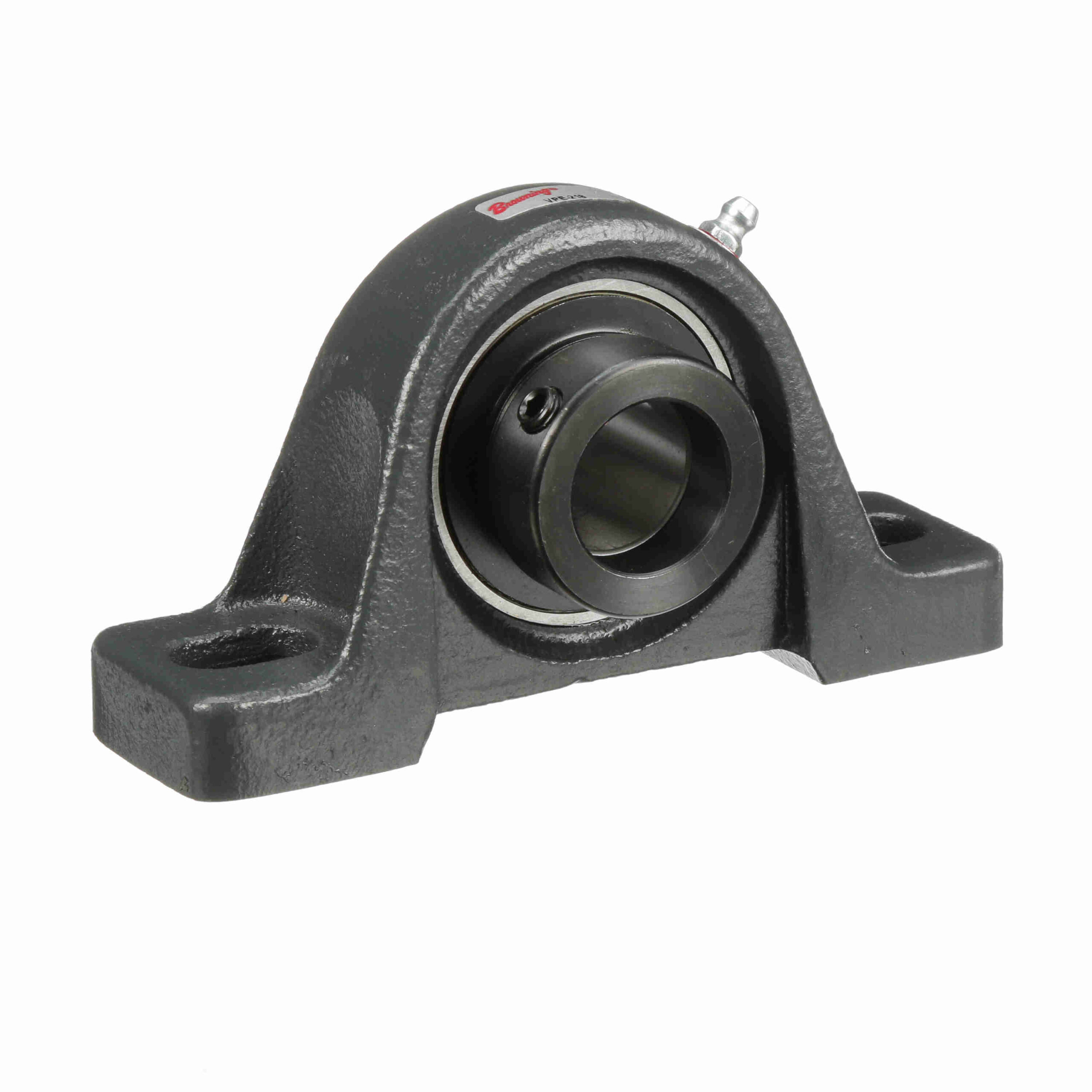

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPE-220
$142.95
Out of stock
Out of stock
| Maximum Operating Temperature: | 200 °F | Housing Material: | Cast Iron |
|---|---|---|---|
| Insert No.: | VE-220 | Duty Series: | Standard Duty |
| Housing Base: | Semi-Solid | Internal Clearance: | Standard |
| Measure Units: | Inch | Retainer Type: | Ball Riding Retainer |
| Speed (Max): | 4000 | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Type: | Pillow Block, Two Bolt | Rolling Element: | Ball Bearing |
| Expansion: | No | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Locking Type: | Eccentric | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662289523405 |
| Weight: | 3.93 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 7.2 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
