- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPL-31T

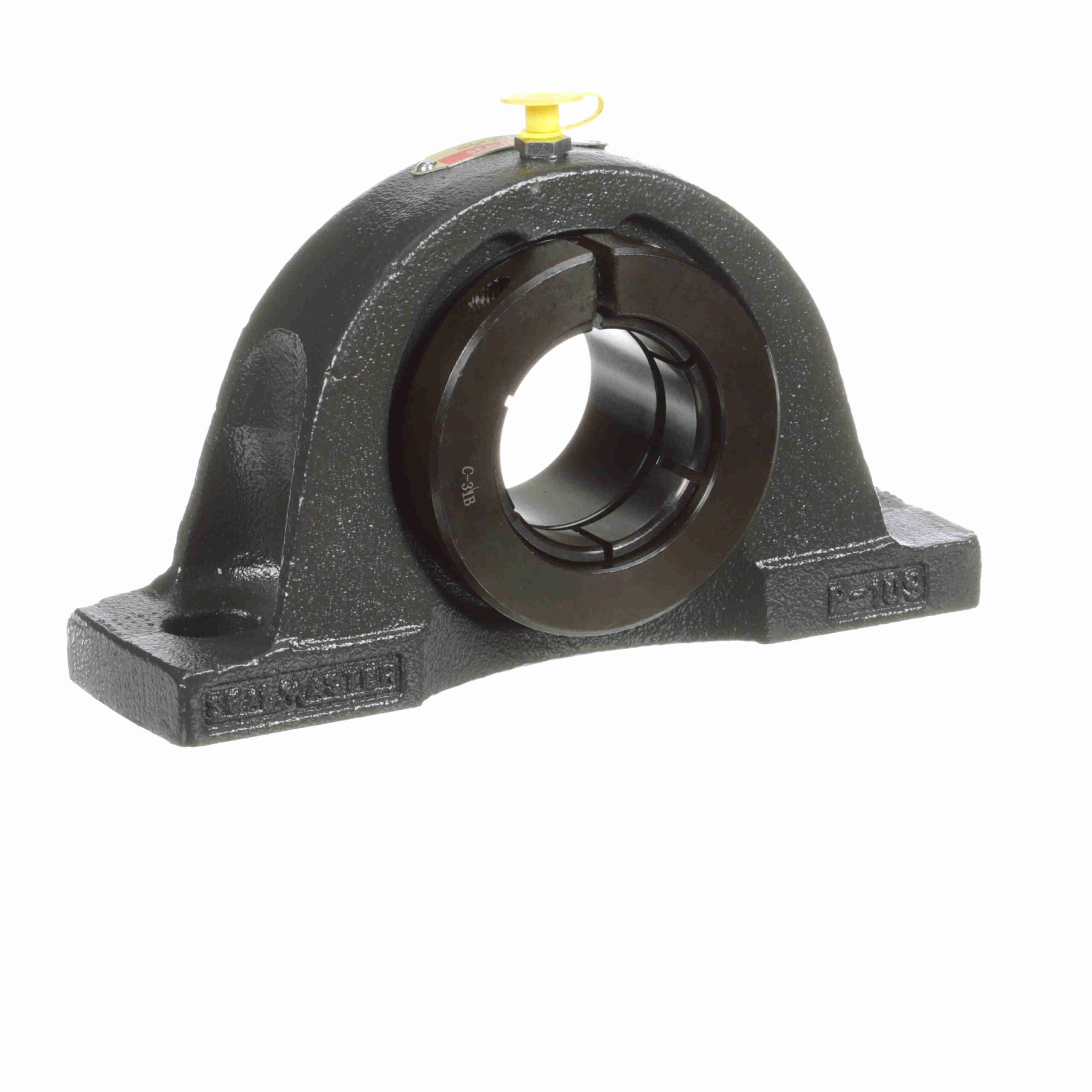

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – NPL-31T
$255.46
Out of stock
Out of stock
| Expansion: | No | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Maximum Operating Temperature: | 220 °F | Internal Clearance: | Standard |
| Seal Type: | Felt Labyrinth Seal | Insert No.: | 2-115T |
| Housing Material: | Cast Iron | Housing Base: | Solid |
| Speed (Max): | 5000 | Duty Series: | Standard Duty |
| Measure Units: | Inch | Retainer Type: | Land Riding Retainer |
| Bore Shape: | Straight | Locking Type: | Concentric |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | End Cap: | No |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| UPC: | 662461030608 | Weight: | 8.55 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
