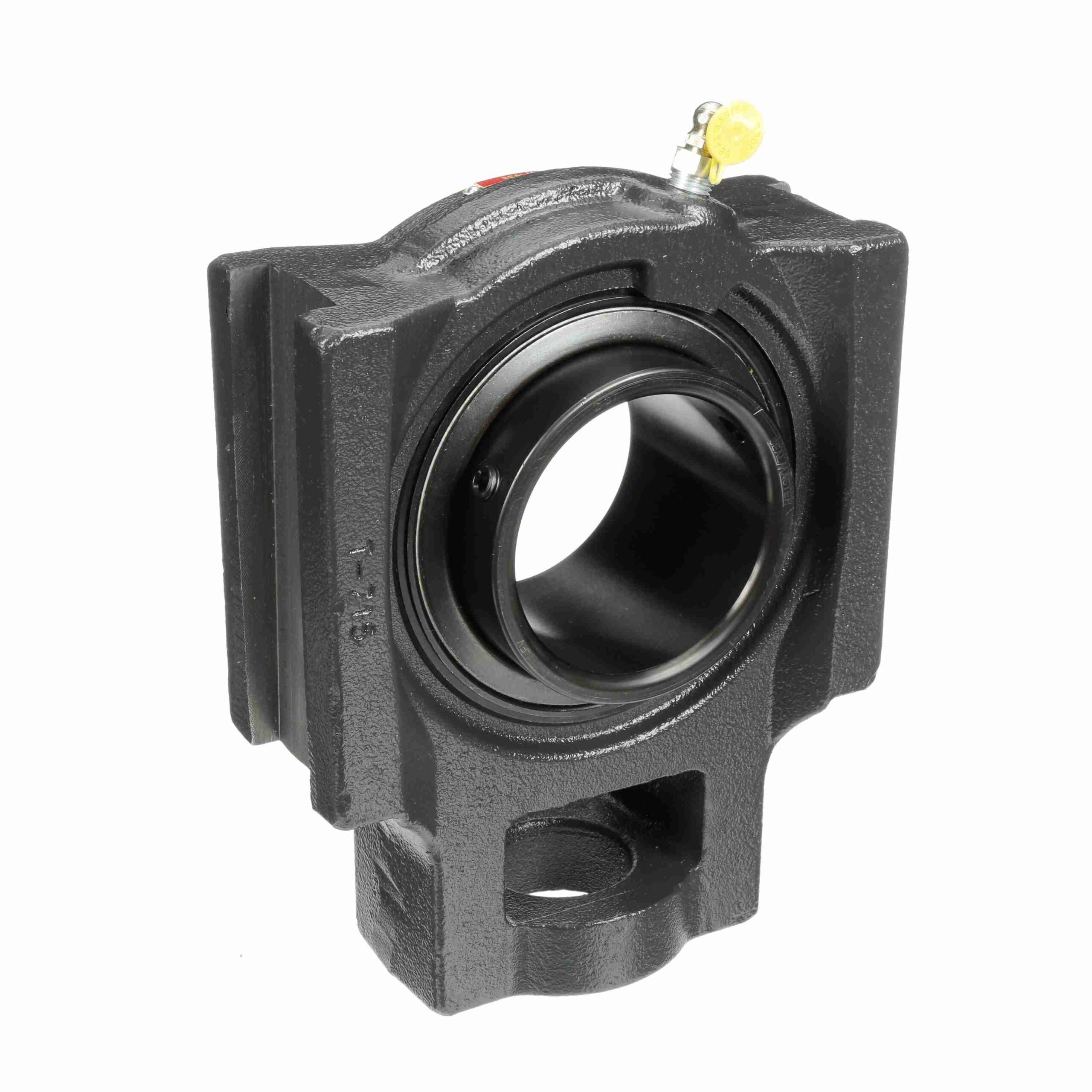

ST-55

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel; Black Oxided	Housing Material:	Cast Iron
Speed (Max):	2125	Insert No.:	2-37
Rolling Element:	Ball Bearing	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Expansion:	No
Maximum Operating Temperature:	220 °F	Duty Series:	Standard Duty
Housing Type:	Take-Up Block; Wide Slot	Seal Type:	Felt Labyrinth Seal
Locking Type:	Setscrew	Frame Type:	Center Pull Wide Slot
Internal Clearance:	Standard	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Inner-Race Heat-Treat Method:	Zone-Hardened
Housing Construction:	One Piece	Bore Shape:	Straight
Radial Dynamic Load Capacity (lb):	18, 681	Misalignment:	±2.0° Misalignment - Static Only
Outer Ring Land Profile:	Standard	End Cap:	No
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	Replaceable Insert:	Yes
Misalignment Type:	Static Only	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461006436	Weight:	30.23 LB
Packaged Length:	10.63 Inches	Packaged Width:	10.44 Inches
Packaged Height:	3.94 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
