- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-231

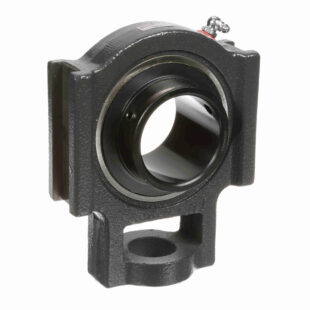

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-231
$171.44
Availability: 4 in stock
Availability: 4 in stock
| Speed (Max): | 3000 | Housing Type: | Take-Up Block; Wide Slot |
|---|---|---|---|
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 200 °F |
| Insert No.: | VS-231 | Expansion: | No |
| Retainer Type: | Ball Riding Retainer | Seal Type: | Single Lip Contact Seal with Flinger |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Duty Series: | Standard Duty | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Misalignment: | ±1.5° Misalignment - Static Only | Locking Type: | Setscrew |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Frame Type: | Center Pull Wide Slot |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Internal Clearance: | Standard | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528615 |
| Weight: | 4.87 LB | Packaged Length: | 6.3 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.4 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
