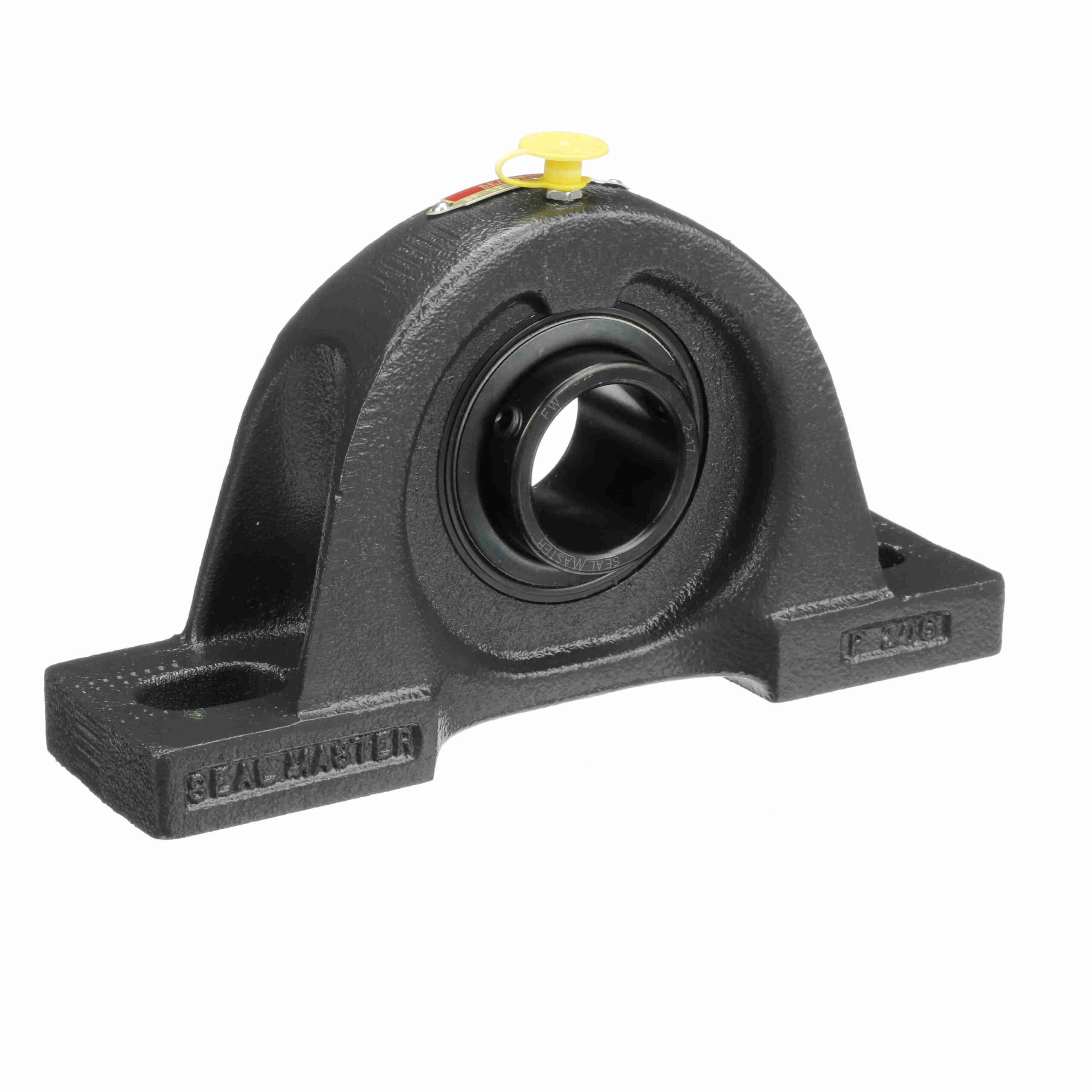

SP-23

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Expansion:	No	Measure Units:	Inch
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel; Black Oxided
Housing Base:	Solid	Duty Series:	Standard Duty
Rolling Element:	Ball Bearing	Housing Type:	Pillow Block; Two Bolt
Housing Material:	Cast Iron	Internal Clearance:	Standard
Seal Type:	Felt Labyrinth Seal	Retainer Type:	Land Riding Retainer
Speed (Max):	4650	Insert No.:	2-17
Bore Shape:	Straight	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Housing Construction:	One Piece
Inner-Race Heat-Treat Method:	Zone-Hardened	Locking Type:	Setscrew
Misalignment:	±2.0° Misalignment - Static Only	Replaceable Insert:	Yes
End Cap:	No	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
Platform:	Air Handling	Outer Ring Land Profile:	Standard
UPC:	662461004920	Weight:	6.80 LB
Packaged Length:	9 Inches	Packaged Width:	5.19 Inches
Packaged Height:	2.38 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
