- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MFC-47

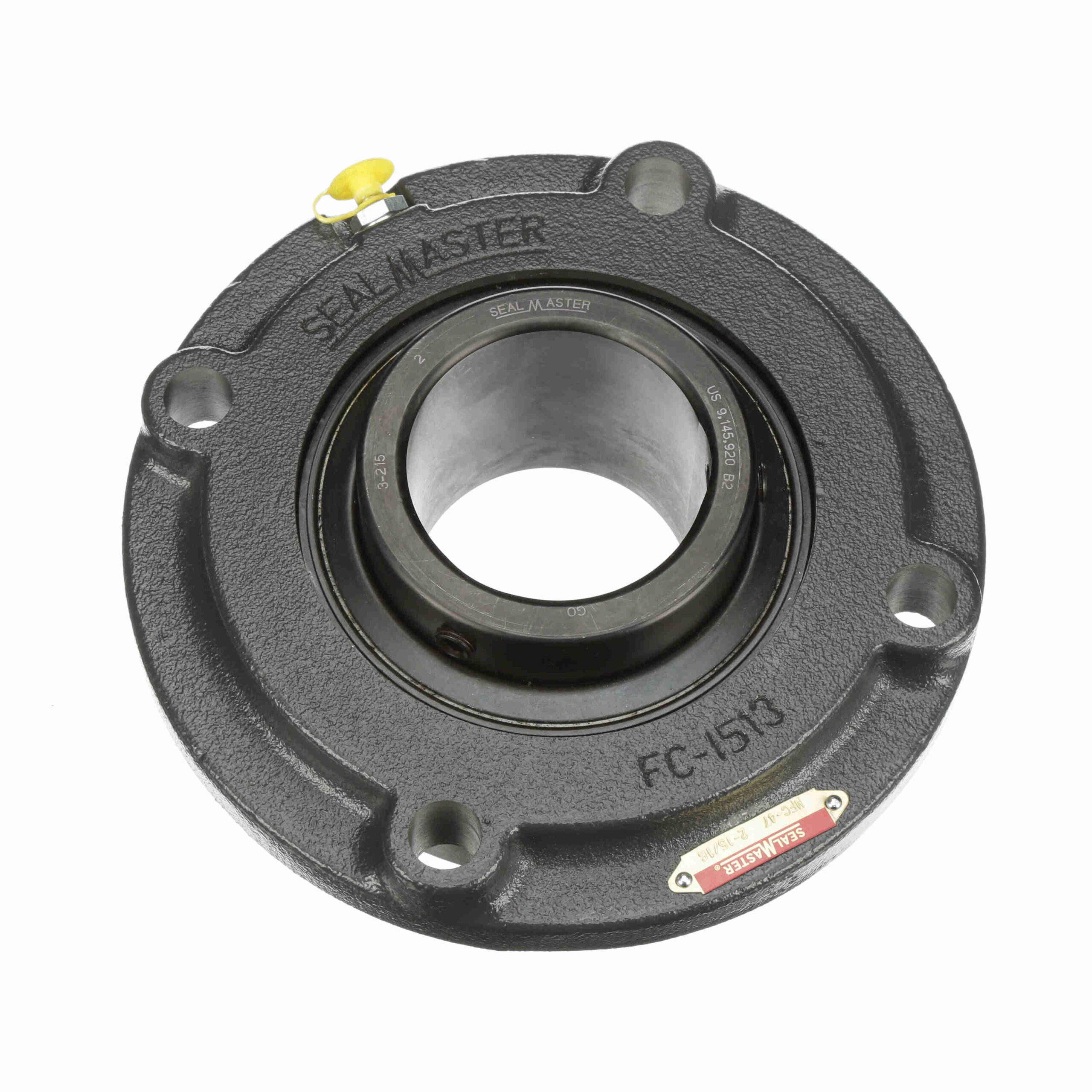

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MFC-47
$666.01
Availability: 7 in stock
Availability: 7 in stock
| Measure Units: | Inch | Expansion: | No |
|---|---|---|---|
| Housing Material: | Cast Iron | Seal Type: | Felt Labyrinth Seal |
| Retainer Type: | Land Riding Retainer | Insert No.: | 3-215 |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Rolling Element: | Ball Bearing |
| Maximum Operating Temperature: | 220 °F | Housing Base: | Solid |
| Bore Shape: | Straight | Duty Series: | Medium Duty |
| Housing Type: | Flange; Piloted | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Speed (Max): | 2250 | Internal Clearance: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | Static Only | UPC: | 662461013472 |
| Weight: | 19.83 LB | Packaged Length: | 10 Inches |
| Packaged Width: | 9.25 Inches | Packaged Height: | 3.75 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
