- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Skwezloc® Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
SFTMH-31T

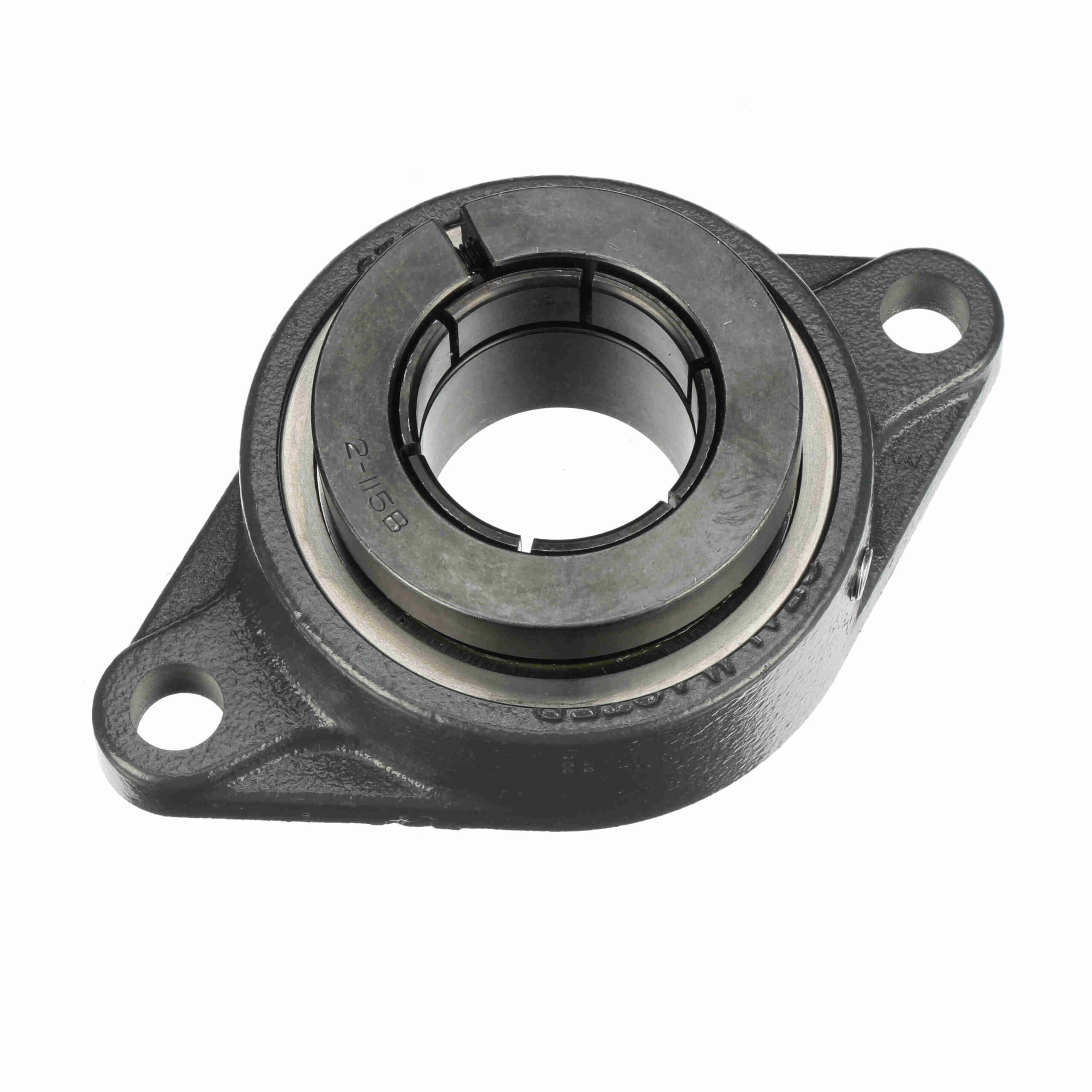

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFTMH-31T
$209.23
Availability: 3 in stock
Availability: 3 in stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Base: | Solid | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 7, 889 lb |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| Bore Shape: | Straight | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 216 lb | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Housing Material: | Cast Iron |
| Housing Style: | Flange Block | Housing Type: | Flange, Two Bolt |
| Retainer Type: | Land Riding Retainer | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Maximum Speed (RPM): | 3000 rpm |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | MH-31T | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461340707 | Weight: | 5.44 LB |
| Packaged Length: | 4.8 Inches | Packaged Width: | 7.8 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
