- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SF-16

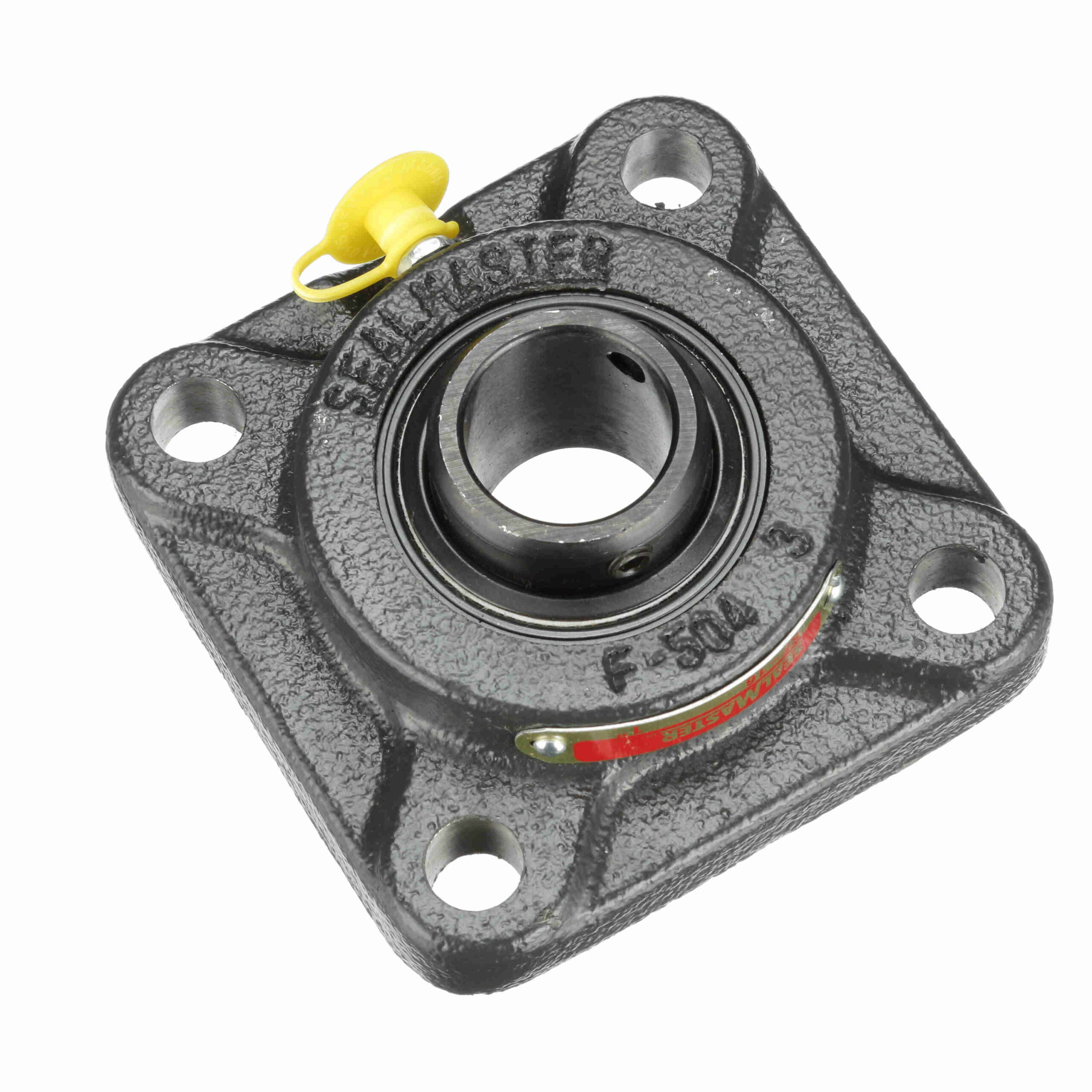

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SF-16
$95.19
Availability: 39 in stock
Availability: 39 in stock
| Duty Series: | Standard Duty | Bore Shape: | Straight |
|---|---|---|---|
| Housing Type: | Flange; Four Bolt | Seal Type: | Felt Labyrinth Seal |
| Insert No.: | 2-1 | Housing Material: | Cast Iron |
| Expansion: | No | Housing Base: | Solid |
| Maximum Operating Temperature: | 220 °F | Rolling Element: | Ball Bearing |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Measure Units: | Inch | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Speed (Max): | 6350 | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| End Cap: | No | T Core: | 2.375 |
| UPC: | 662461003428 | Weight: | 2.01 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
