- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-31T CXU

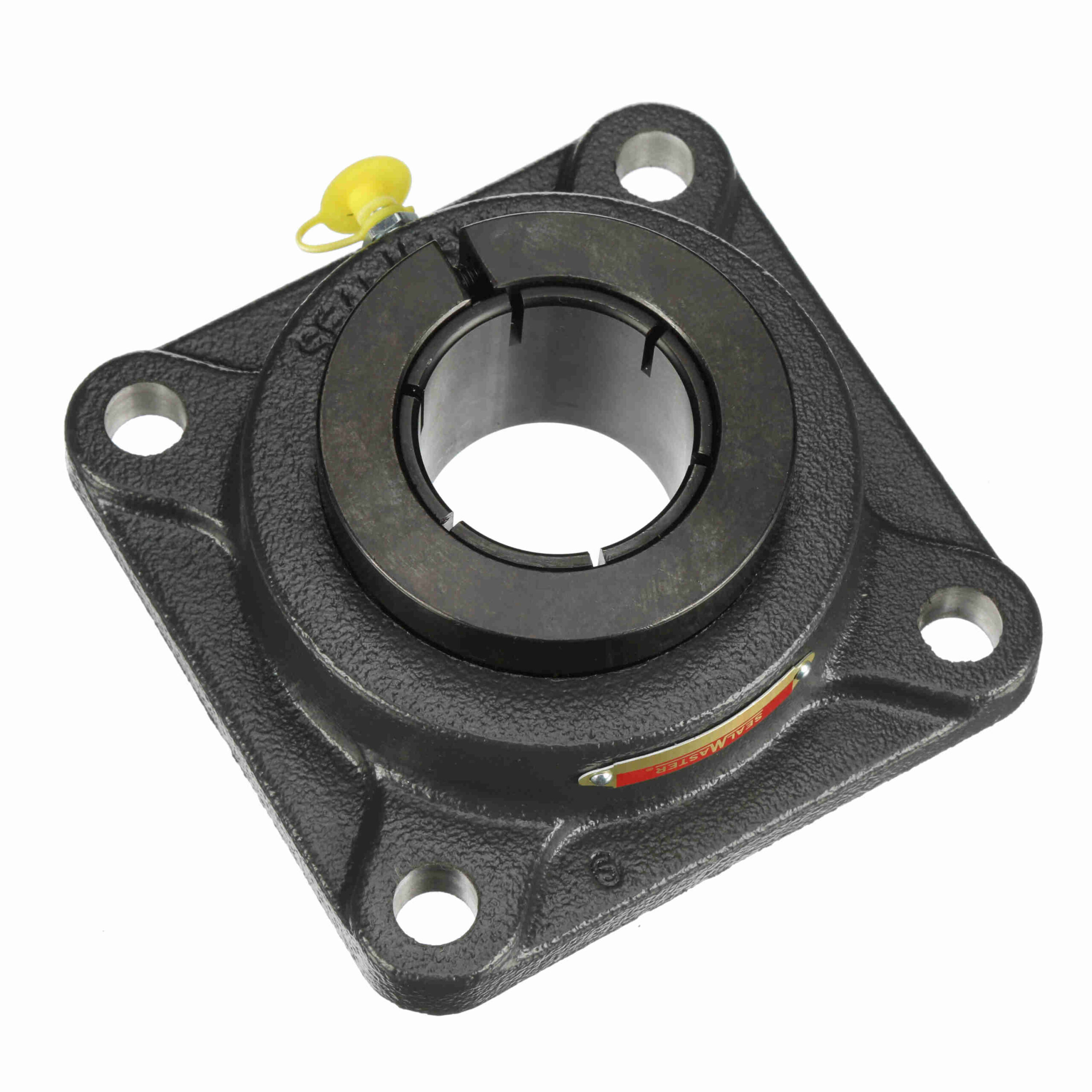

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Air Handling Housing Fit, Noise Tested – SF-31T CXU
$308.20
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Duty Series: | Standard Duty |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Insert No.: | 2-115T CXU |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Type: | Flange, Four Bolt | Expansion: | No |
| Housing Base: | Solid | Housing Material: | Cast Iron |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Locking Type: | Concentric |
| Speed (Max): | 5000 | Misalignment: | ±2.0° Misalignment - Static Only |
| Platform: | Air Handling | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Options: | Air Handling Housing Fit, Noise Tested | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| UPC: | 662461067604 | Weight: | 6.85 LB |
| Packaged Length: | 6.75 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 2.44 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
