- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Extra low drag seal cut down felt labyrinth seal and flinger
- Features a channeling grease that reduces drag while lubricating the bearing
- Nylon retainer to reduce overall drag
ERX-16T LO

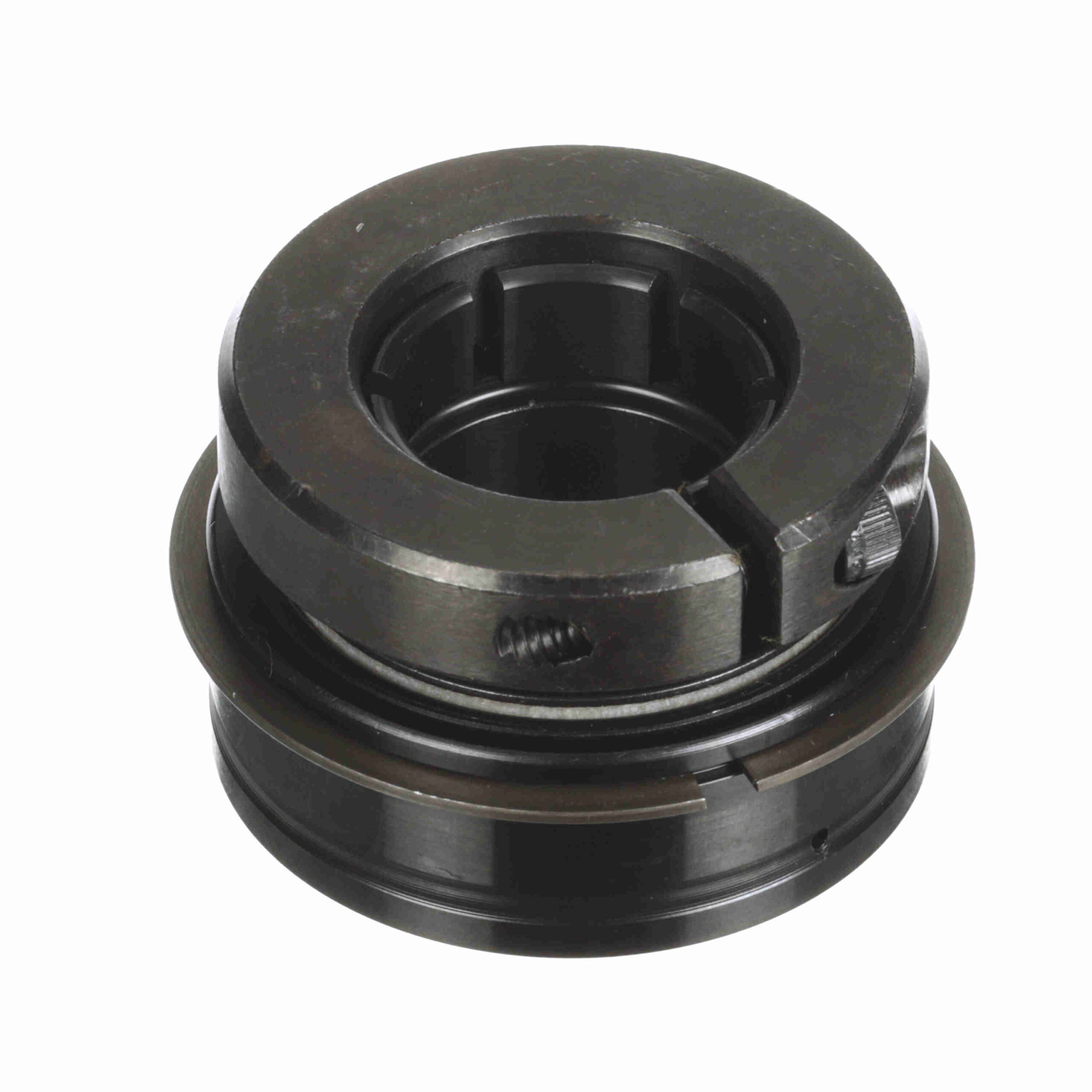

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Low Drag – ERX-16T LO
$90.44
Out of stock
Out of stock
| Housing Type: | Insert (ER Style) | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Measure Units: | Inch | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Rolling Element: | Ball Bearing |
| Seal Type: | Cut Down Felt Labyrinth | Duty Series: | Standard |
| Radius: | 0.04 | Retainer Type: | Land Riding Retainer |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Locking Type: | Concentric | Misalignment: | None |
| Internal Clearance: | Standard | Relubricatable: | Yes |
| Expansion: | No | Speed (Max): | 5000 |
| Lubrication: | Lithium NLGI 2 Low Torque Grease | Outer Ring Land Profile: | Tapered Lands |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Options: | Low Drag |
| End Cap: | No | Radial Static Load Capacity (lb): | 1, 651 |
| Precision Rating: | ABEC 1 | Series: | ERX-T |
| Cage Material: | Molded Nylon | Inner Race Profile: | Wide Inner Ring |
| Outer Race Profile: | Cylindrical | UPC: | 662461258804 |
| Weight: | 1.10 LB | Packaged Length: | 2.38 Inches |
| Packaged Width: | 1.44 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8482.10.5048 | Country of Origin: | Mexico |
