- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Looser than standard housing fit for ease of alignment on lightweight frames
- Air Handling noise check for quiet operation
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

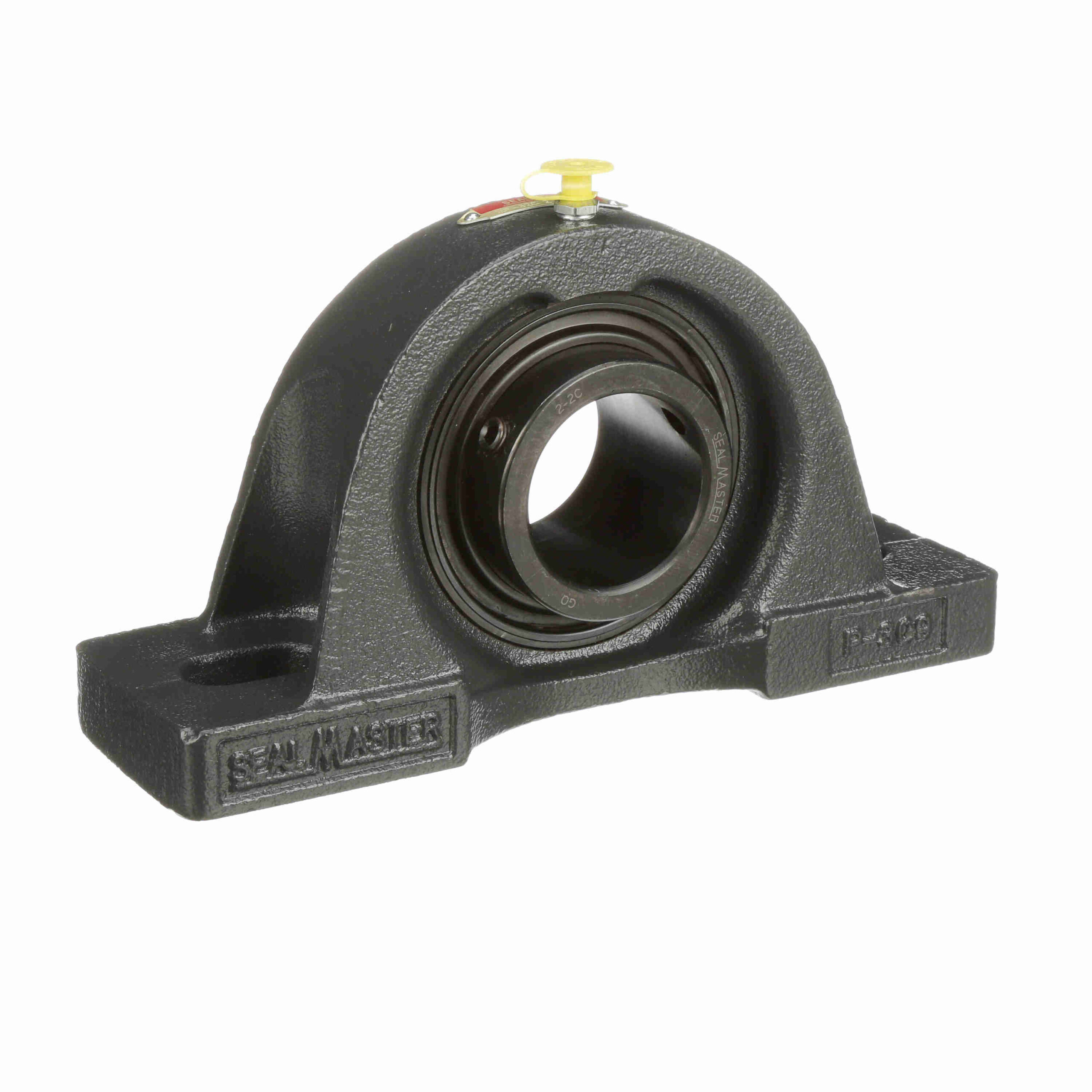

MPD-43 HTA
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – High Temperature & Air Handling Housing Fit, Noise Tested – MPD-43 HTA
$1,058.47
Out of stock
Out of stock
| Housing Material: | Cast Iron | Seal Type: | High Temp Labyrinth |
|---|---|---|---|
| Housing Base: | Solid | Insert No.: | 3-211D HT |
| Measure Units: | Inch | Speed (Max): | 1050 |
| Maximum Operating Temperature: | 400 °F | Retainer Type: | Land Riding Retainer |
| Expansion: | No | Internal Clearance: | Increased |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Type: | Pillow Block, Two Bolt |
| Duty Series: | Medium Duty | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 14, 839 |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Locking Type: | Double Setscrew | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Synthetic NLGI 2 High Temperature Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Air Handling |
| Housing Color: | Gray | Options: | High Temperature and Air Handling Housing Fit, Noise Tested |
| End Cap: | No | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 11, 224 | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461335802 | Weight: | 28.80 LB |
| Packaged Length: | 14.25 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 4 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
