- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SPM-35 CXU

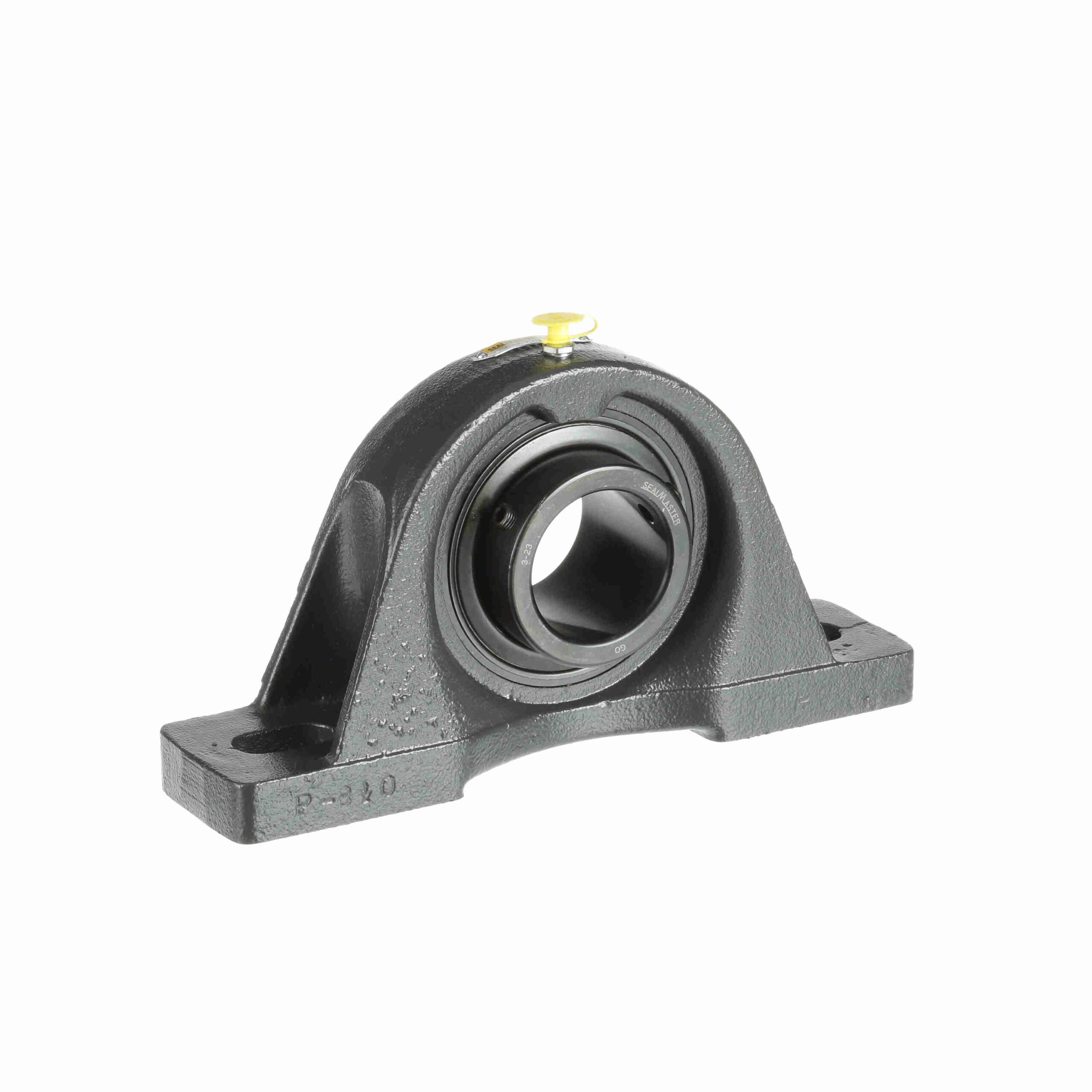

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – SPM-35 CXU
$515.22
Availability: 2 in stock
Availability: 2 in stock
| Measure Units: | Inch | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert No.: | 3-23 CXU |
| Expansion: | No | Duty Series: | Medium Duty |
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Rolling Element: | Ball Bearing | Housing Type: | Pillow Block; Two Bolt |
| Internal Clearance: | Standard | Retainer Type: | Land Riding Retainer |
| Speed (Max): | 3000 | Maximum Operating Temperature: | 220 °F |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| End Cap: | No | Platform: | Air Handling |
| Options: | Air Handling Housing Fit; Noise Tested | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | UPC: | 662461008157 |
| Weight: | 15.81 LB | Packaged Length: | 11.44 Inches |
| Packaged Width: | 7.5 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
