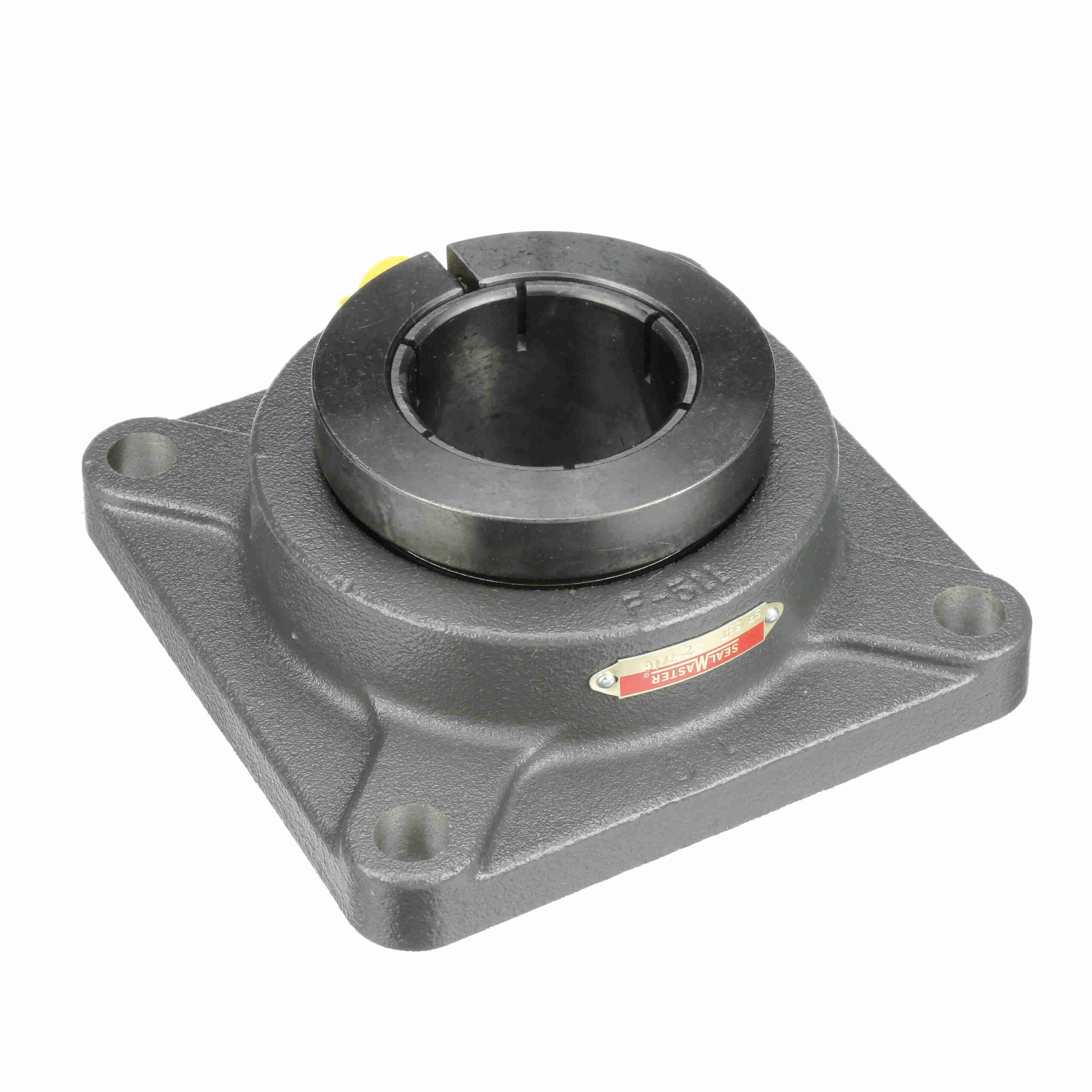

SF-20T CXU

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames
Felt labyrinth seal and flinger for dusty and dirty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Type:	Flange, Four Bolt	Duty Series:	Standard Duty
Housing Base:	Solid	Housing Material:	Cast Iron
Retainer Type:	Land Riding Retainer	Measure Units:	Inch
Inner-Race Heat-Treat Method:	Zone-Hardened	Seal Type:	Felt Labyrinth Seal
Expansion:	No	Rolling Element:	Ball Bearing
Insert No.:	2-14T CXU	Bore Shape:	Straight
Insert Material:	52100 Bearing Steel, Black Oxided	Maximum Operating Temperature:	220 °F
Relubricatable:	Yes	Pilot Configuration:	No Pilot
Lubrication:	Lithium Complex NLGI 2 Grease	Misalignment:	±2.0° Misalignment - Static Only
Locking Type:	Concentric	Speed (Max):	6500
Housing Construction:	One Piece	Internal Clearance:	Standard
Replaceable Insert:	Yes	Housing Color:	Gray
End Cap:	No	Options:	Air Handling Housing Fit, Noise Tested
Misalignment Type:	Static Only	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	Platform:	Air Handling
T Core:	3.3125	UPC:	662461392362
Weight:	4.00 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
