- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
SFT-16T RM

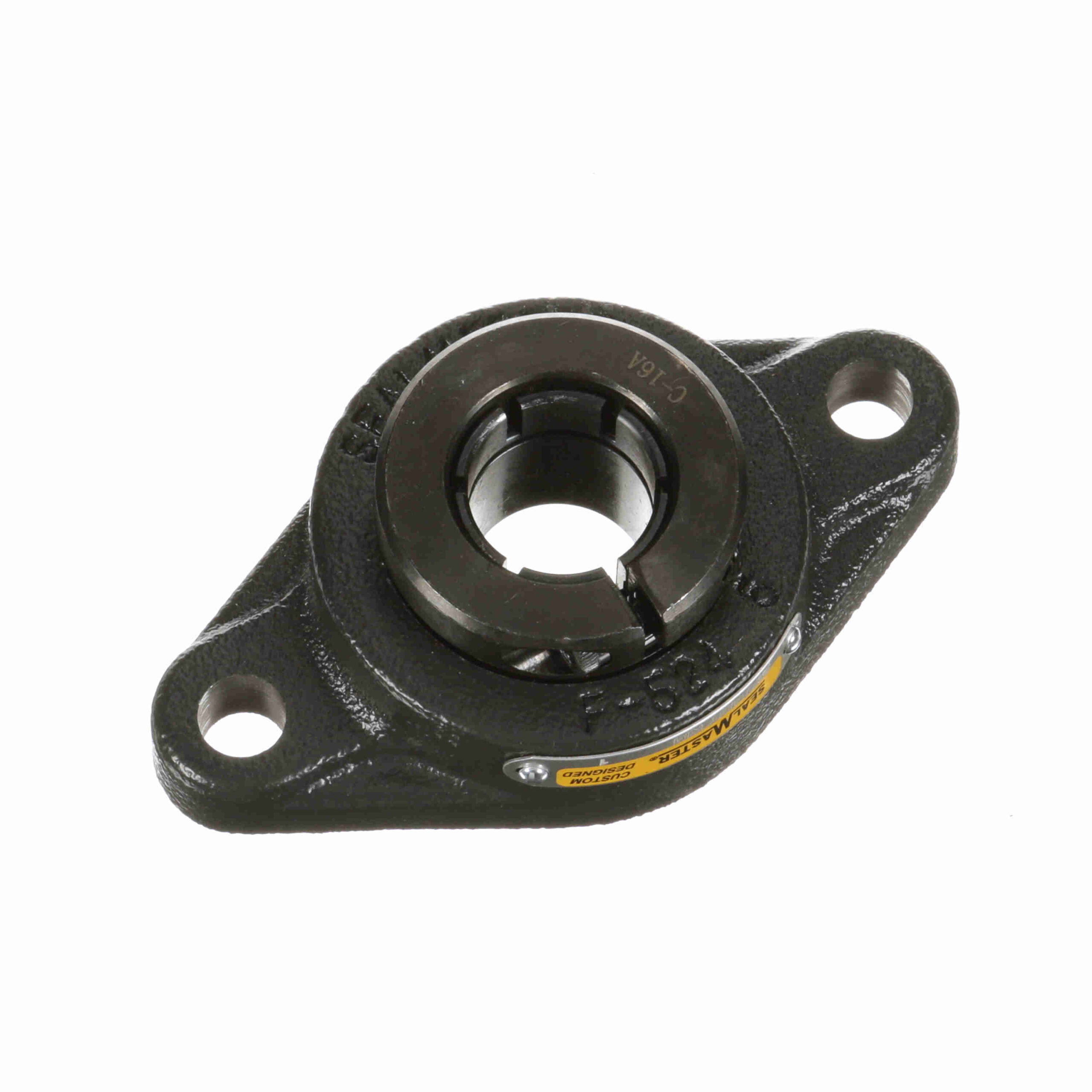

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Reduced Maintenance – Lubed for Life – SFT-16T RM
$181.09
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Duty Series: | Standard Duty | Insert No.: | 2-1T RM |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
| Expansion: | No | Housing Material: | Cast Iron |
| Relubricatable: | No | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Speed (Max): | 9000 | Housing Type: | Flange, Two Bolt |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Concentric |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Misalignment Type: | Static Only | Options: | Reduced Maintenance - Lubed for Life |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Tapered Lands |
| UPC: | 662461346013 | Weight: | 1.62 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
