- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
USFB5000-315

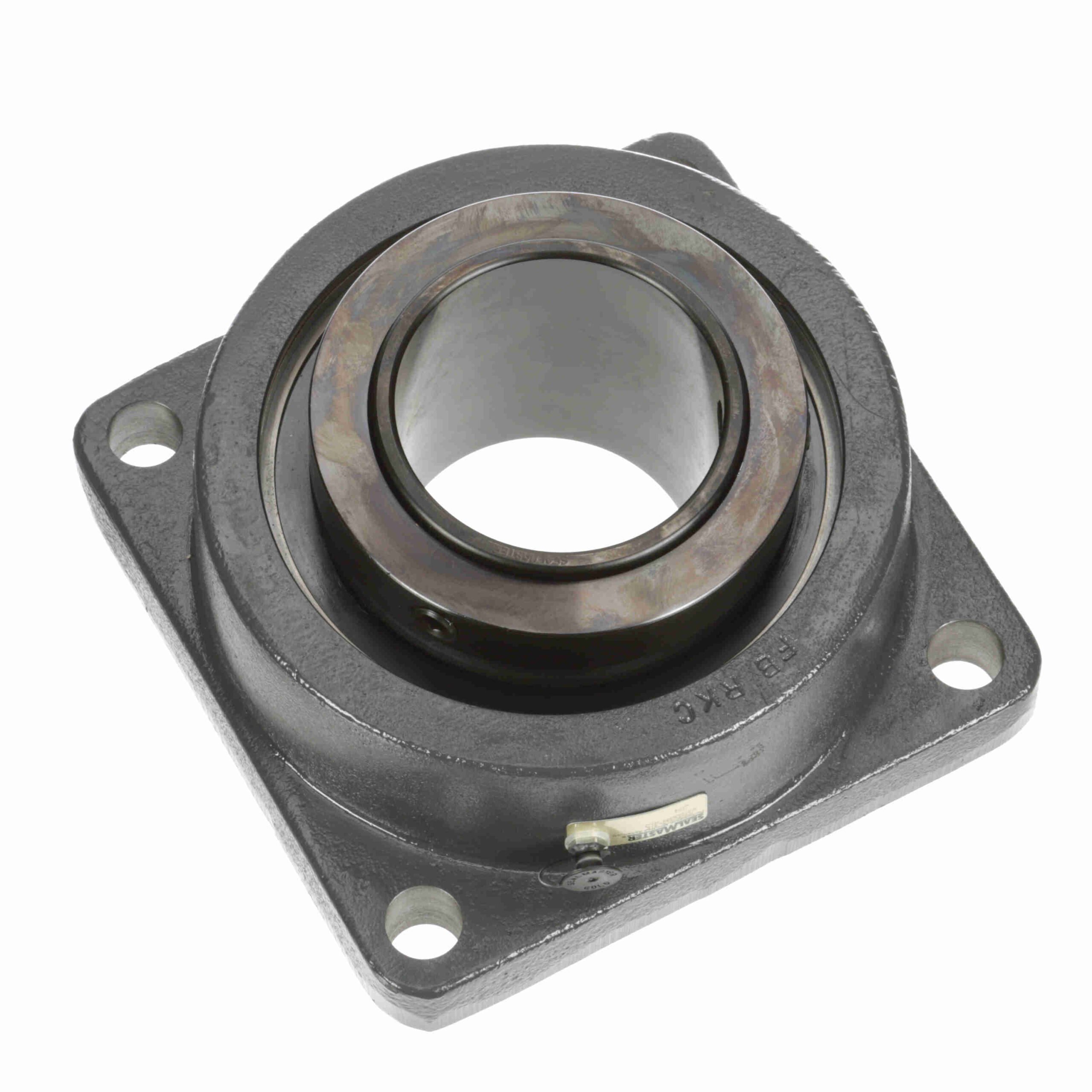

Sealmaster Mounted Cast Iron Four Bolt Flange Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USFB5000-315
$1,726.13
Availability: 5 in stock
Availability: 5 in stock
| Seal Type: | Felt Labyrinth Seal | Housing Type: | Flange; Four Bolt |
|---|---|---|---|
| Expansion: | Non-Expansion Bearing (Fixed) | Bore Shape: | Straight |
| Speed (Max): | 2250 | Rolling Element: | Spherical Roller |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Housing Material: | Cast Iron |
| Measure Units: | Inch | Insert No.: | USI5000-315 |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Housing Construction: | Solid | Misalignment: | ±2.0° Misalignment - Dynamic |
| Maximum Operating Temperature: | 220 °F | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 96, 050 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Single Set Collar | Duty Series: | Standard |
| Retainer Material: | Steel | Platform: | USRB |
| Replaceable Insert: | No | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Dynamic |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Bolt Hole Type: | Round Hole | Series: | USFB5000 |
| Lubrication Method: | Lubrication Fitting | Radial Static Load Capacity (lb): | 136, 151 |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662461361511 |
| Weight: | 44.08 LB | Packaged Length: | 11 Inches |
| Packaged Width: | 11 Inches | Packaged Height: | 6.63 Inches |
| HTC: | 8483.20.4080 | Country of Origin: | United States of America |
