- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-43 CXU

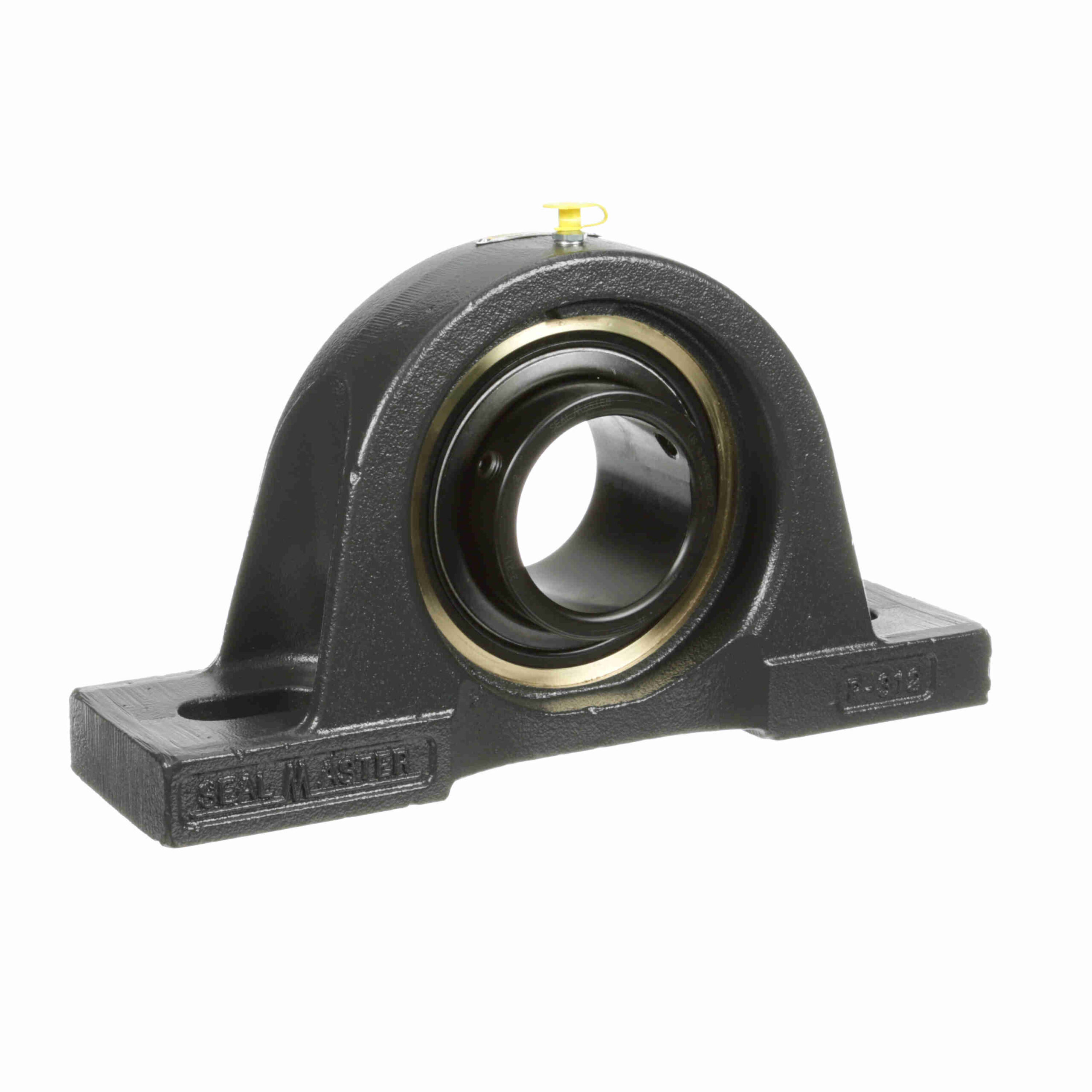

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – EMP-43 CXU
$1,270.63
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Internal Clearance: | Standard |
|---|---|---|---|
| Housing Base: | Solid | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Outer Ring Land Profile: | Standard |
| Options: | Air Handling Housing Fit, Noise Tested | Platform: | Air Handling |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| End Cap: | No | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Locking Type: | Setscrew |
| Housing Style: | Pillow Block | Fixed vs. Expansion: | Expansion |
| Duty/Series: | Medium Duty | Maximum Speed (RPM): | 2500 rpm |
| Housing Type: | Pillow Block, Two Bolt | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| Insert Number: | AR-2-211 | Ability to Relubricate: | Yes |
| UPC: | 662461000000 | Weight: | 27.70 LB |
| Packaged Length: | 14.25 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 4 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
