- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-14C

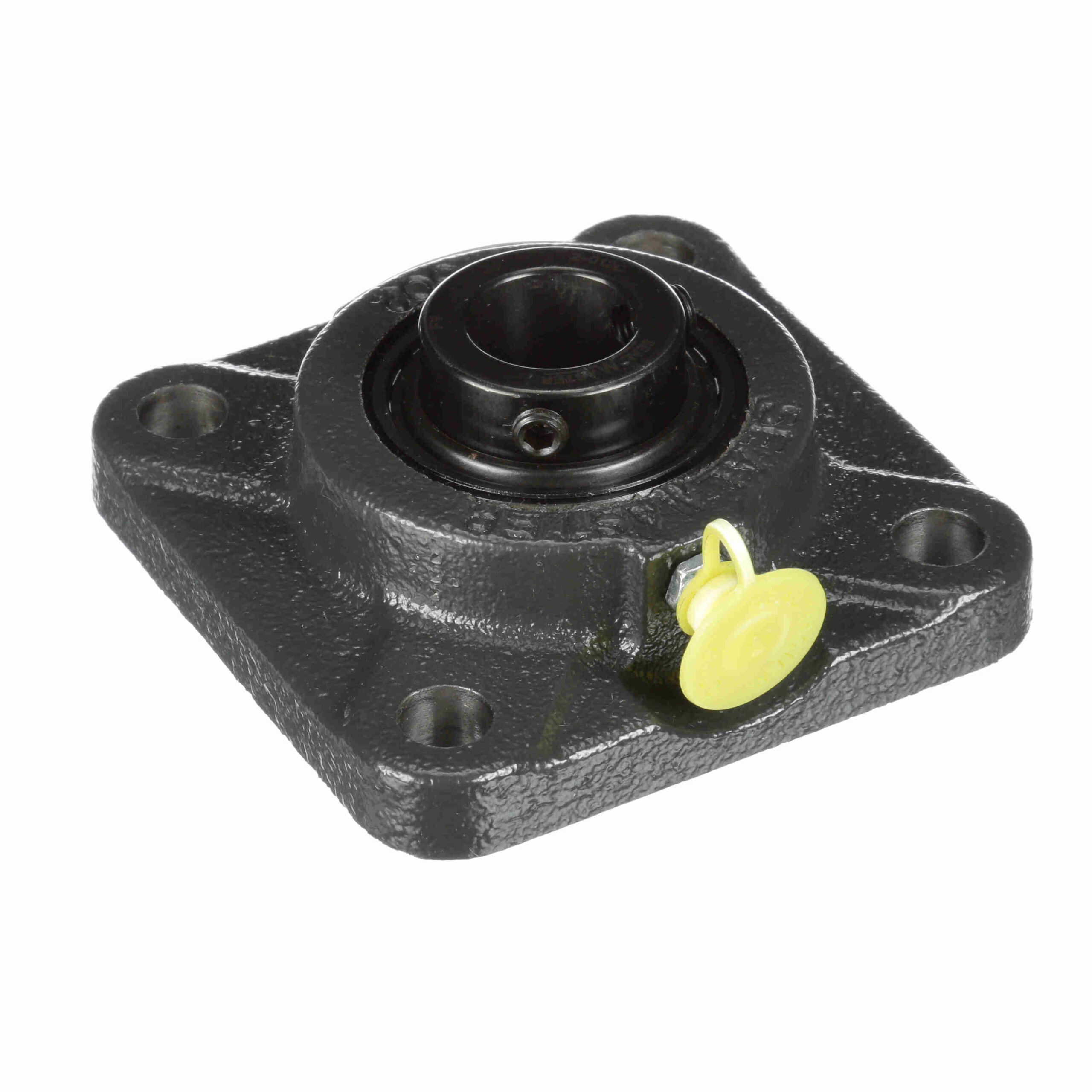

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SF-14C
$221.47
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Measure Units: | Inch | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Housing Color: | Gray | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | T Core: | 2375 |
| Housing Style: | Flange Block | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Fixed vs. Expansion: | Fixed | Maximum Speed (RPM): | 6350 rpm |
| Duty/Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Locking Type: | Setscrew | Housing Material: | Cast Iron |
| Housing Type: | Flange, Four Bolt | Insert Number: | 2-014C |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | UPC: | 662461021903 |
| Weight: | 2.10 LB | Packaged Length: | 4 Inches |
| Packaged Width: | 1.5 Inches | Packaged Height: | 3.94 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
