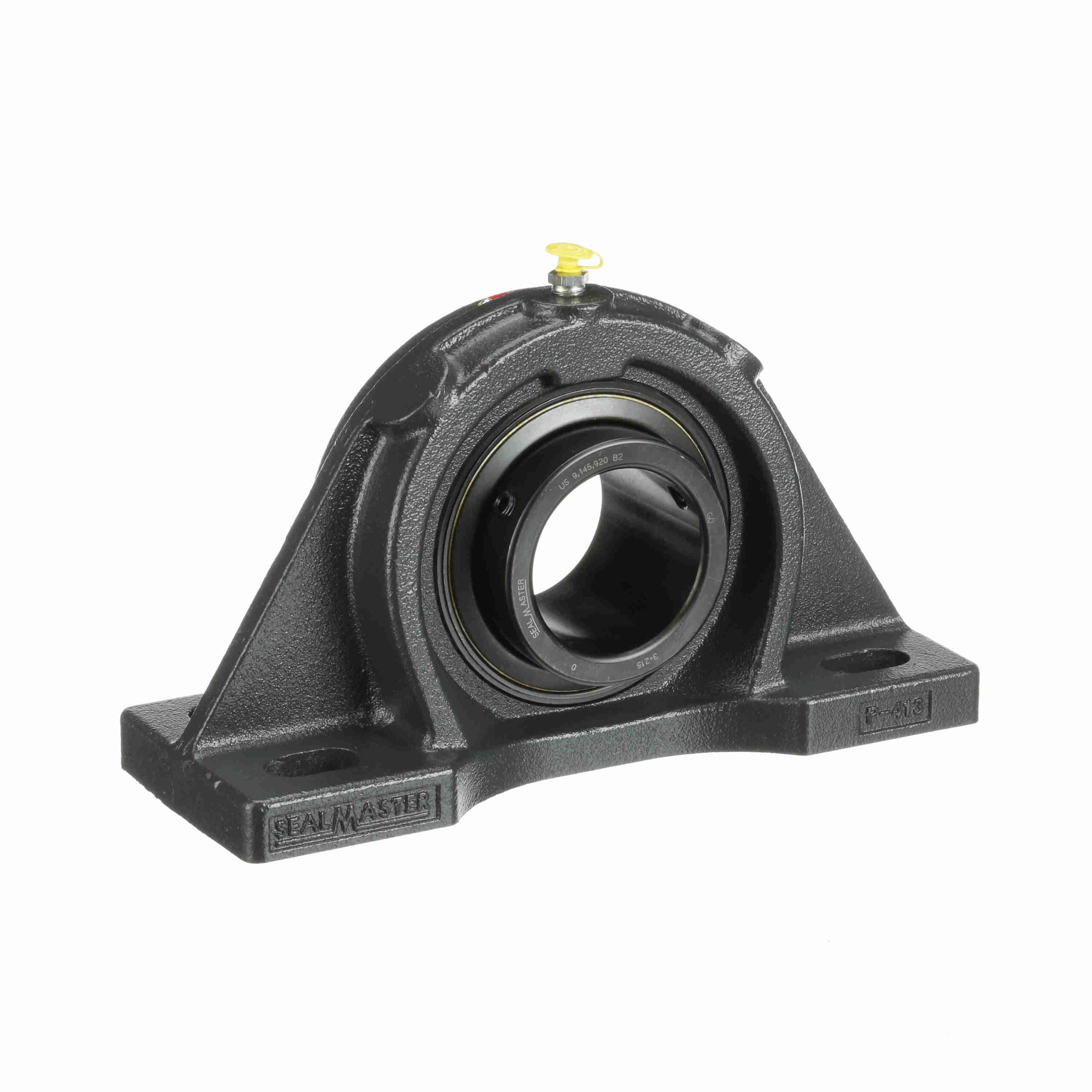

MFP-47

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Housing Material:	Cast Iron	Speed (Max):	2250
Rolling Element:	Ball Bearing	Insert No.:	3-215
Retainer Type:	Land Riding Retainer	Duty Series:	Medium Duty
Maximum Operating Temperature:	220 °F	Seal Type:	Felt Labyrinth Seal
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Type:	Pillow Block; Four Bolt
Insert Material:	52100 Bearing Steel; Black Oxided	Measure Units:	Inch
Housing Base:	Solid	Expansion:	No
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Setscrew
Internal Clearance:	Standard	Bore Shape:	Straight
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	17, 412
Relubricatable:	Yes	Lubrication:	Lithium Complex NLGI 2 Grease
Housing Color:	Gray	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	End Cap:	No
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	Radial Static Load Capacity (lb):	13, 174
UPC:	662461013625	Weight:	31.67 LB
Packaged Length:	8.13 Inches	Packaged Width:	14 Inches
Packaged Height:	5 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
