- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 1 3/4

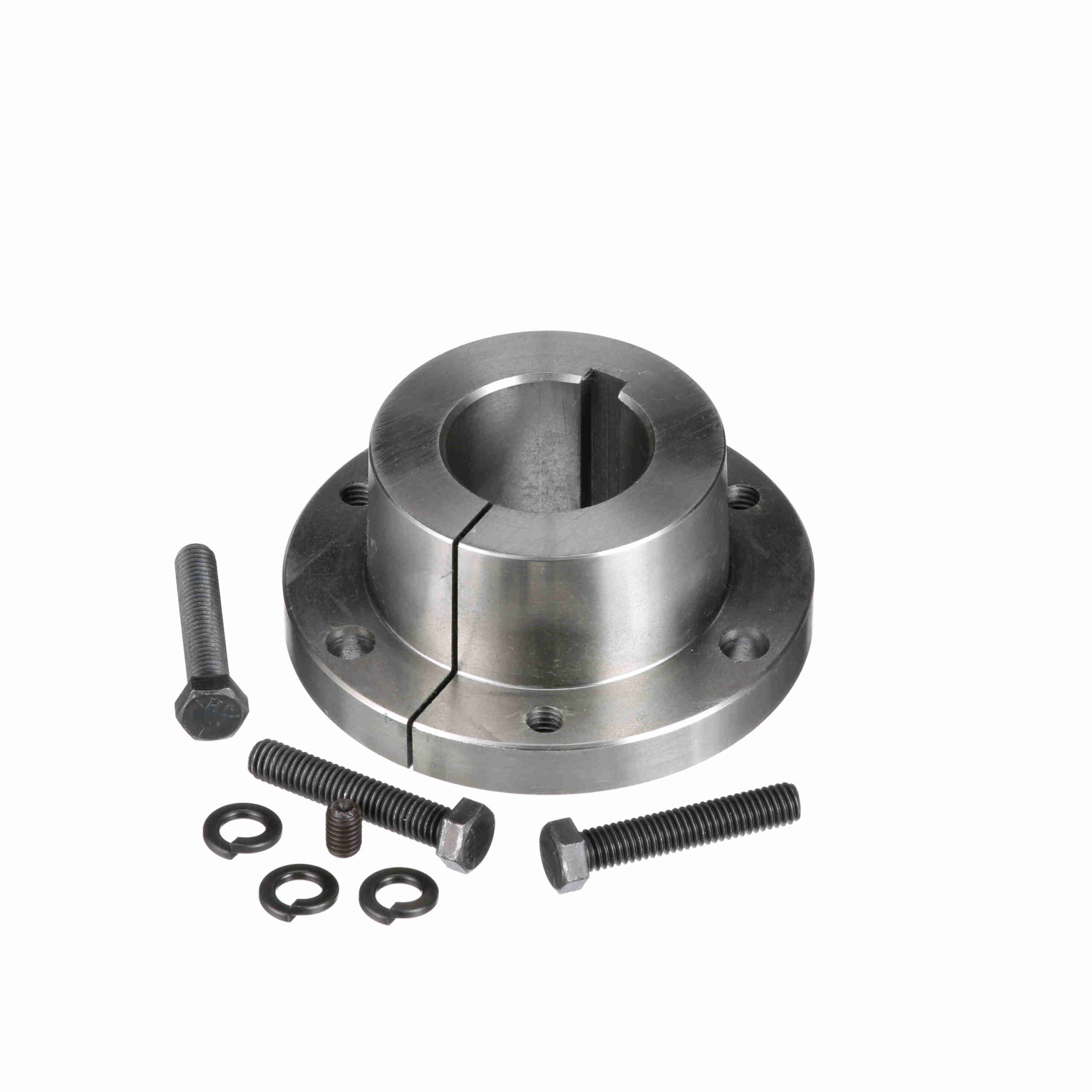

Browning Q-D Bushing – Inch Bore Type – SF 1 3/4
$106.44
Out of stock
Out of stock
| Model Name: | QD-SF_Bushing_Master | Outside Diameter (in): | 4.625 in |
|---|---|---|---|
| Total Length (in): | 1.995 in | Length Through Bore (in): | 1.995 in |
| Bushing Type: | SF | Cap Screws (Bolt Circle): | 3.875 |
| Mounting Type: | Conventional | Wrench Torque (ft.-lbs.): | 30 |
| Torque Capacity (in-lb): | 11, 000 | Product Type: | Q-D Bushing |
| Cap Screws (Size): | 3/8-16 x 2 | Keyway: | 3/8 x 3/16 |
| Cap Screws (No.): | 3 | Compatible Bore Size [Max] (in): | 1.75 in |
| Bore Type: | Inch | Bore Size (in): | 1.75 in |
| Flange Thickness: | 0.5625 in | Material: | Gray Iron - G3008 |
| Barrel Diameter: | 3.125 in | Barrel Length: | 1.4375 in |
| UPC: | 662289335275 | Weight: | 4.18 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 5.1 Inches |
| Packaged Height: | 2.4 Inches |
