- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SD 1 1/8

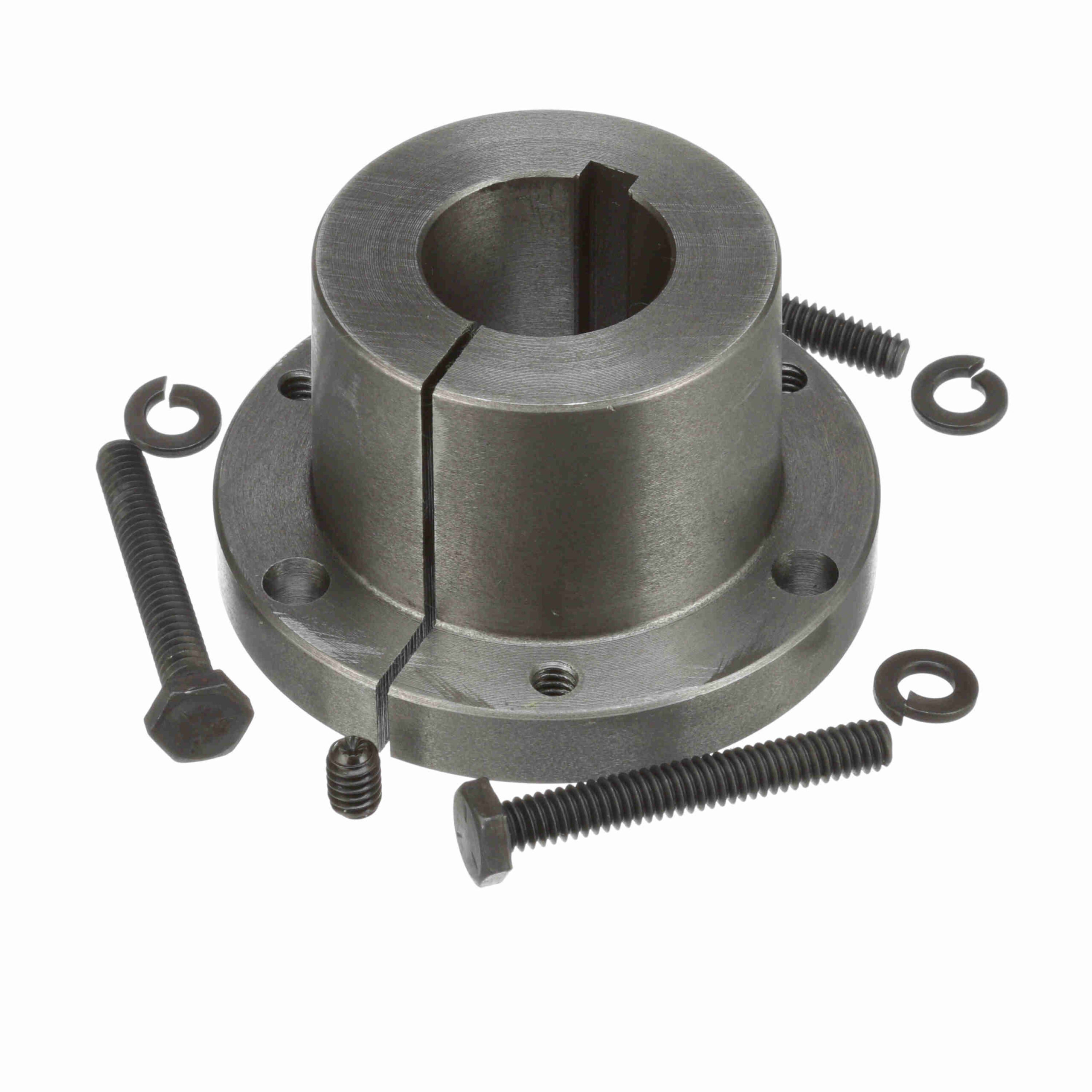

Browning Q-D Bushing – Inch Bore Type – SD 1 1/8
$62.22
Out of stock
Out of stock
| Bushing Type: | SD | Model Name: | QD-SD_Bushing_Master |
|---|---|---|---|
| Product Type: | Q-D Bushing | Torque Capacity (in-lb): | 5, 000 |
| Outside Diameter (in): | 3.125 in | Total Length (in): | 1.83 in |
| Keyway: | 1/4 x 1/8 | Cap Screws (Bolt Circle): | 2.6875 |
| Length Through Bore (in): | 1.83 in | Cap Screws (No.): | 3 |
| Mounting Type: | Conventional | Compatible Bore Size [Max] (in): | 1.125 in |
| Wrench Torque (ft.-lbs.): | 9 | Cap Screws (Size): | 1/4-20 x 1 7/8 |
| Bore Type: | Inch | Bore Size (in): | 1.125 in |
| Barrel Length: | 1.38 in | Flange Thickness: | 0.45 in |
| Material: | Ductile Iron - 65-45-15 | Barrel Diameter: | 2.1875 in |
| UPC: | 662289344604 | Weight: | 1.75 LB |
| Packaged Length: | 4.06 Inches | Packaged Width: | 4.06 Inches |
| Packaged Height: | 1.88 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
