- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 1 7/16

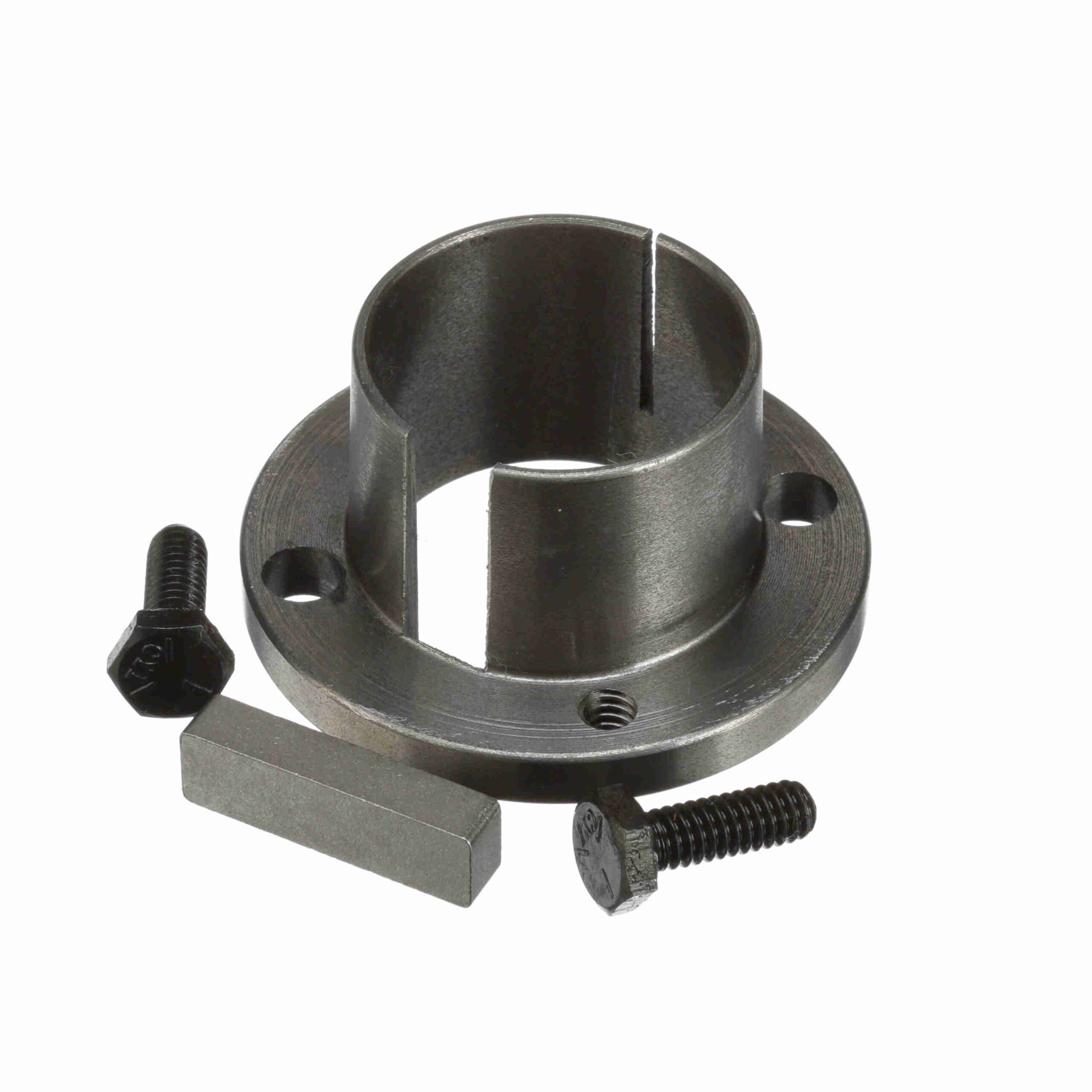

Browning Split Taper Bushing – Inch Bore Type – H 1 7/16
$14.65
Availability: 59 in stock
Availability: 59 in stock
| Total Length (in): | 1.25 in | Model Name: | H-Bushing_2_Master |
|---|---|---|---|
| Bushing Type: | H | Compatible Bore Size [Max] (in): | 1.4375 in |
| Keyseat: | 3/8 x 3/16 | Cap Screws (Size): | 1/4 x 3/4 |
| Wrench Torque (in-lb): | 95 | Material: | Sintered Steel or Ductile Iron |
| Product Type: | Split Taper Bushing | Outside Diameter (in): | 2.5 in |
| Bore Size (in): | 1.4375 in | Length Through Bore (in): | 1.25 in |
| Bore Type: | Inch | Cap Screws (No.): | 2 |
| UPC: | 662289209170 | Weight: | 0.40 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.38 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
