- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 1

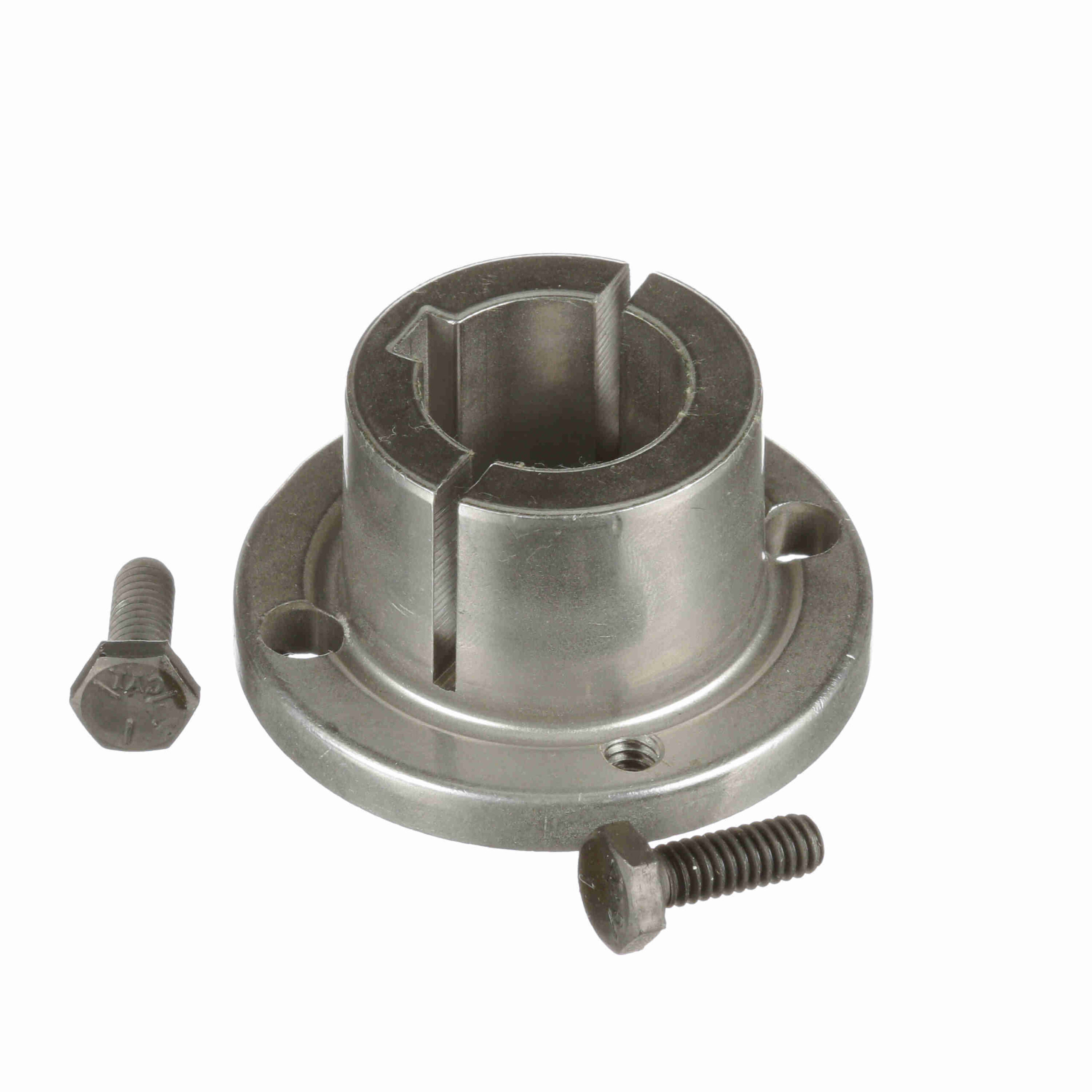

Browning Split Taper Bushing – Inch Bore Type – H 1
$17.49
Availability: 310 in stock
Availability: 310 in stock
| Model Name: | H-Bushing_1_Master | Bore Size (in): | 1 in |
|---|---|---|---|
| Total Length (in): | 1.25 in | Wrench Torque (in-lb): | 95 |
| Keyseat: | 1/4 x 1/8 | Material: | Sintered Steel or Ductile Iron |
| Outside Diameter (in): | 2.5 in | Cap Screws (Size): | 1/4 x 3/4 |
| Bushing Type: | H | Product Type: | Split Taper Bushing |
| Compatible Bore Size [Max] (in): | 1 in | Length Through Bore (in): | 1.25 in |
| Bore Type: | Inch | Cap Screws (No.): | 2 |
| UPC: | 662289139026 | Weight: | 0.60 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.38 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | United States of America |
