- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 50 MM

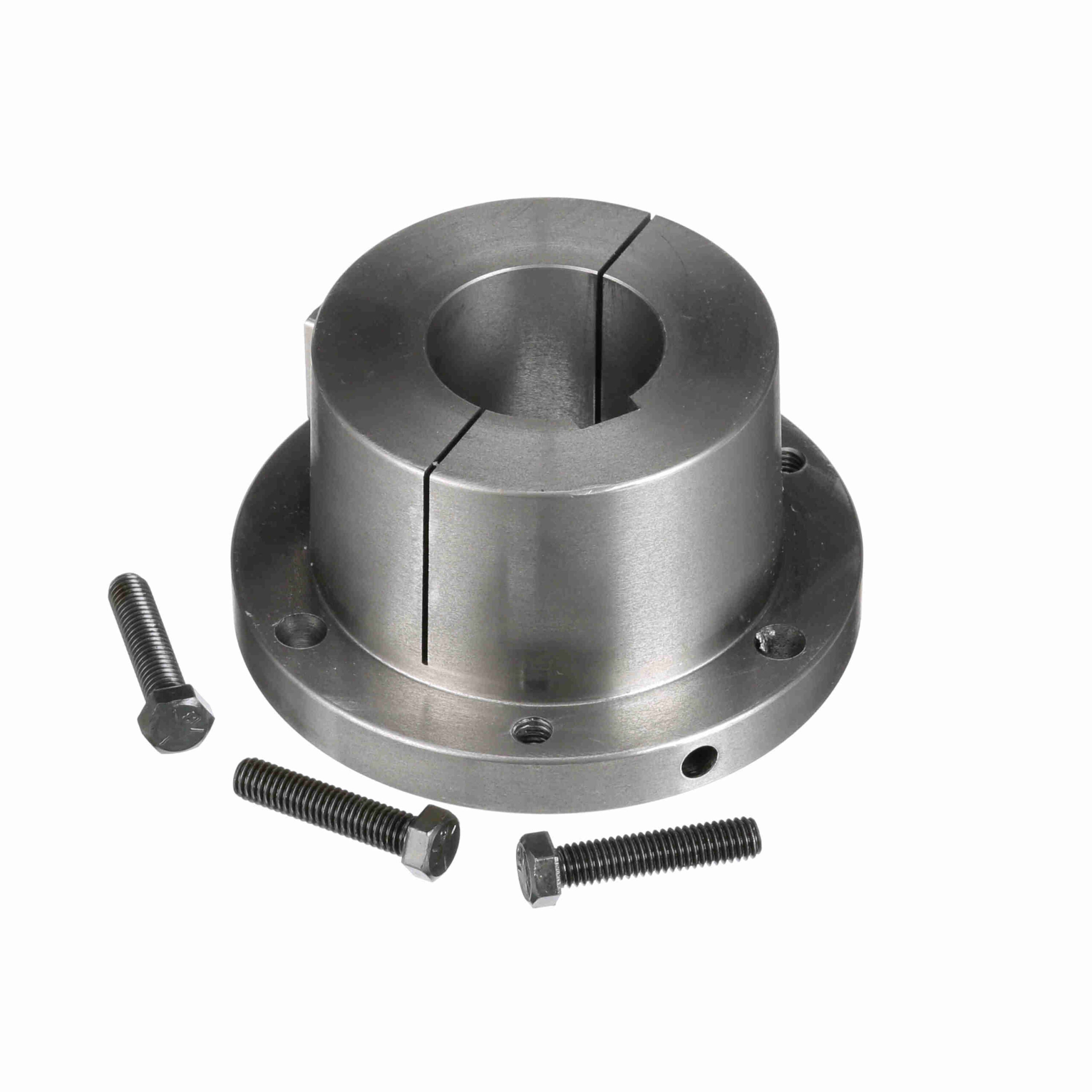

Browning Split Taper Bushing – Metric Bore Type – R1 50 MM
$205.57
Out of stock
Out of stock
| Model Name: | R1-R2_Type1_BushingMaster | Total Length (in): | 2.875 in |
|---|---|---|---|
| Bore Size (mm): | 50 mm | Wrench Torque (in-lb): | 348 |
| Product Type: | Split Taper Bushing | Outside Diameter (mm): | 136.525 mm |
| Cap Screws (Size): | 3/8 x 1 3/4 | Compatible Bore Size [Max] (mm): | 50 mm |
| Bushing Type: | R1 | Material: | Sintered Steel or Ductile Iron |
| Keyseat (mm): | 14 x 4.5 mm | Total Length (mm): | 73.025 mm |
| Length Through Bore (mm): | 73.025 mm | Outside Diameter (in): | 5.375 in |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| UPC: | 662289411801 | Weight: | 8.49 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 5.6 Inches |
| Packaged Height: | 3.1 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
