- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
100H O/L

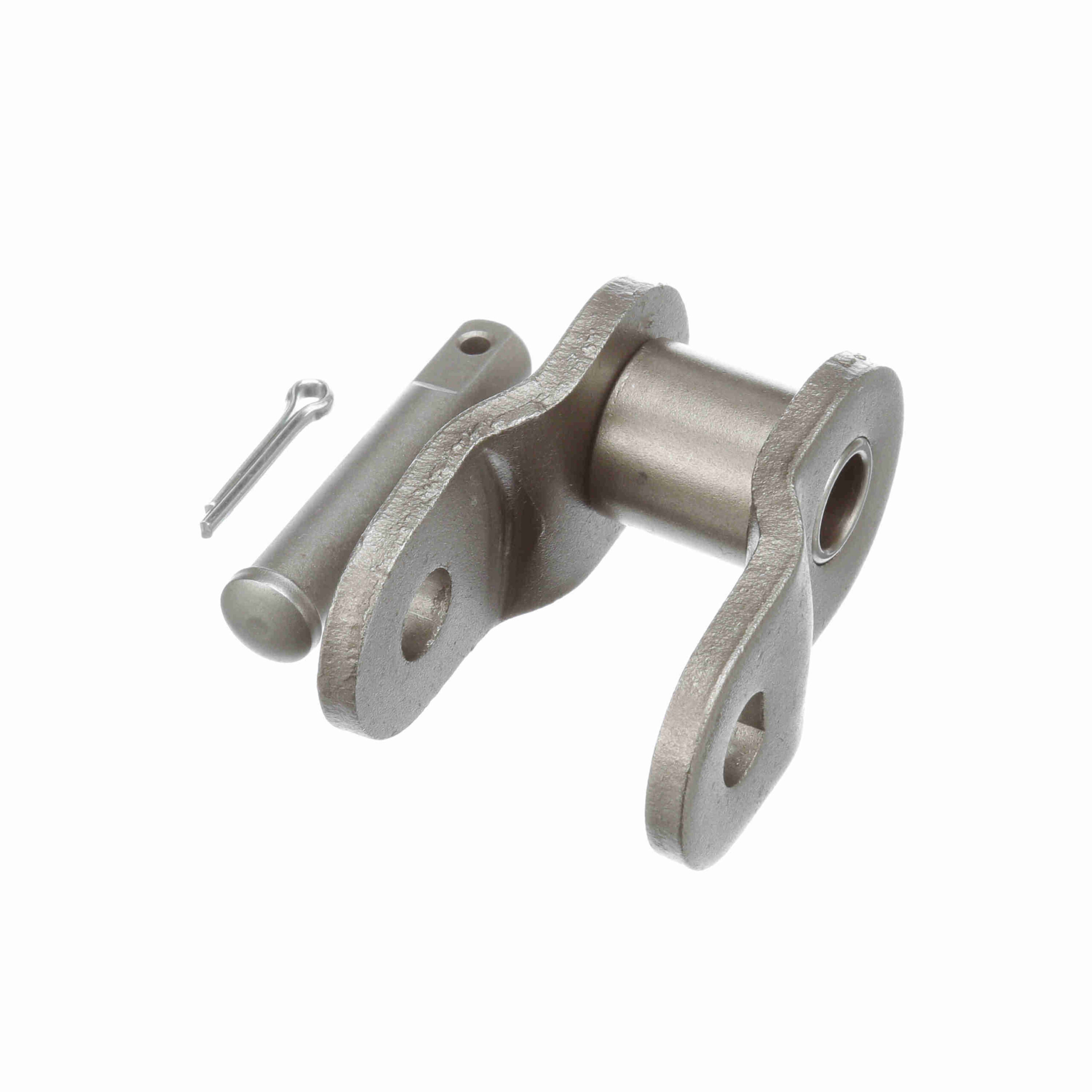

Morse Heavy Roller Chain Offset Link – 100H O/L
$26.83
Out of stock
Out of stock
| Width Over Pins/Total Width: | 1.684 | Roller Width (in): | 0.75 in |
|---|---|---|---|
| Chain Size: | 100 | Centerline to Opposite cotter Pin Side: | 0.842 |
| Centerline to Outside of cotter Pin: | 0.986 | Average Ultimate Tensile Strength (psi): | 24, 000 |
| Material: | Steel | Plate Thickness: | 0.187 |
| Inside Plate Height: | 1.166 | Roller Diameter (in): | 0.75 in |
| Pin Diameter (in): | 0.375 in | Side Plate Cfg.: | Hourglass |
| Single Pitch Offset Link: | Cottered | Number of Strands/Width: | 1 |
| Chain Pitch (in): | 1.25 in | Chain Type: | Heavy |
| Product Type: | Roller Chain | Link Type: | Offset Link |
| UPC: | 662288456360 | Weight: | 0.76 LB |
| Packaged Length: | 3.60 Inches | Packaged Width: | 3.80 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
