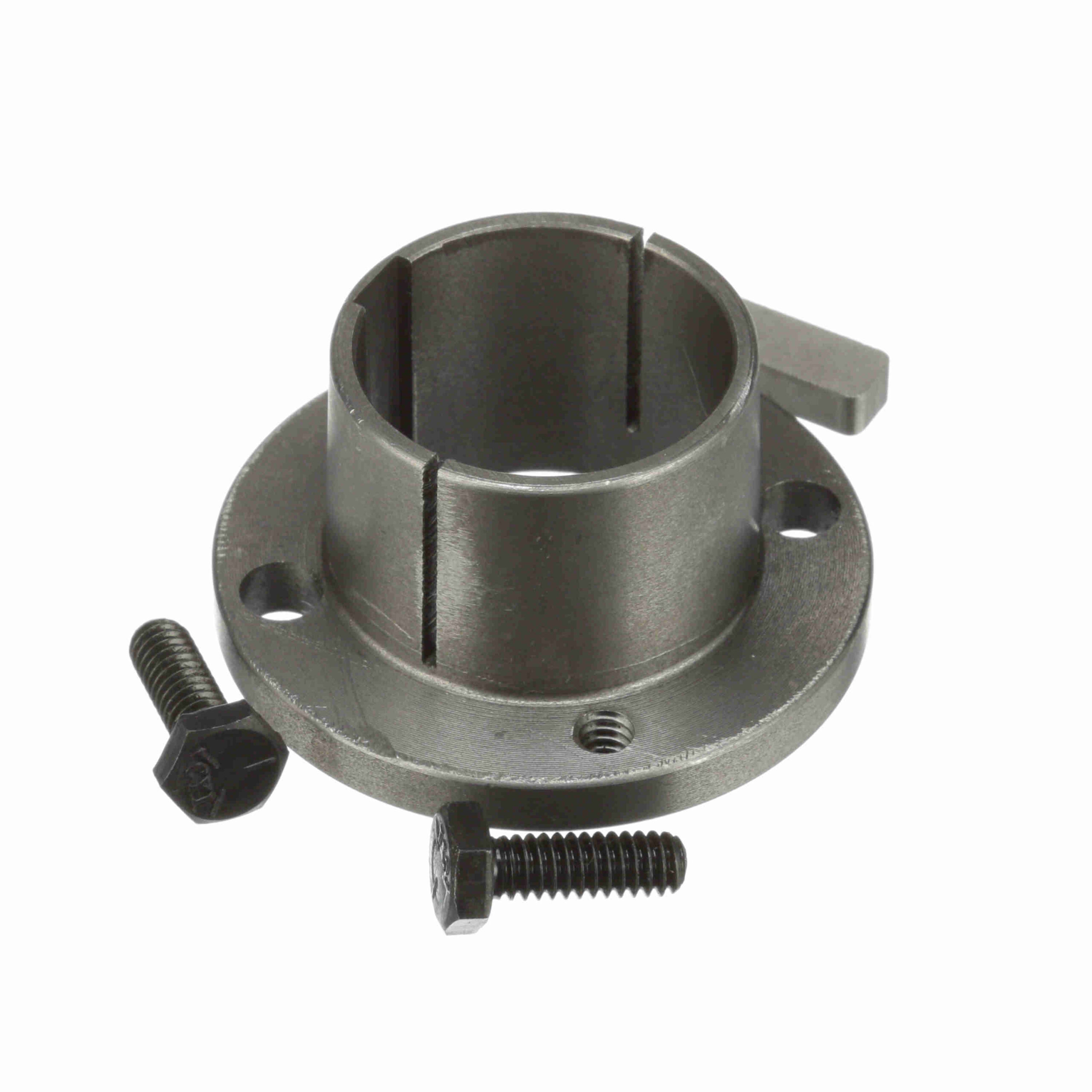

H 1 3/8 5/16

Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.

Bushing Type:	H	Bore Size (in):	1.375 in
Product Type:	Split Taper Bushing	Length Through Bore (in):	1.25 in
Material:	Sintered Steel or Ductile Iron	Keyseat:	5/16 x 5/32
Cap Screws (Size):	1/4 x 3/4	Outside Diameter (in):	2.5 in
Total Length (in):	1.25 in	Compatible Bore Size [Max] (in):	1.375 in
Wrench Torque (in-lb):	95	Model Name:	H-Bushing_1_Master
Bore Type:	Inch	Cap Screws (No.):	2
UPC:	662289179145	Weight:	0.43 LB
Packaged Length:	2.7 Inches	Packaged Width:	2.8 Inches
Packaged Height:	1.5 Inches	HTC:	8483.90.8080
Country of Origin:	Mexico
